Stainless Steel Solid Carbide Drills Hole Making Tools

- GOdrill — the first microdrill from Kennametal.
- General purpose SC drill for most materials.
- Marginless design for reduced friction and heat — thus longer tool life.
- Optimized gashing design for microdrilling ensures free flow of chips in the center of the drill.
- Size range from 1mm - 20mm

Emuge Franken Basic Drill series for high performance drilling.

• For high-speed drilling of Steel, Stainless Steel, Cast Iron, Aluminium and Heat-Resistant Alloys
• Coated for increased tool life
• 3xD stub drill
• Through coolant
• Out performing most major brands on the market

• Coated carbide
• Tix04 3 layer coating for improved tool life, TiN, AICRSiN & TiSiN
• Excellent performance on steels, stainless steel and cast iron
• Sizes available 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm and 20mm

• Bright finish body for maximum chip clearance
• Self centring split point above 1.6mm
• TiN coated on working area for longer tool life

Ideal for drilling steel, cast steel-alloyed and non-alloyed, stainless steel, titanium and aluminium. Particularly suited to stainless steel and titanium.

* Minimum order quantities - Up to 6mm qty 10, Above 6mm qty 5

Features:

• HSS 8% cobalt stub drill
• Suitable for drilling thin materials with portable drills
• Special twist drills for automatic and turret lathes
• Ideal for general drilling in steels and stainless steels

* Minimum order quantities - Up to 6mm qty 10, Above 6mm qty 5

Drilling steels, stainless steels, cast irons, titanium, aluminium and plastic.

• • Bright steam tempered (Black Oxide finish).
• • Morser taper shank.
• • Standard DIN 345
• • Point angle 118 degree
• • H8 tolerance

• High helix-sharp cutting edges to avoid built-up and to be suitable for high performance drilling.
• Wide flute and stub length-increasing chip removal and reducing vibration and deflection.
• High vanadium HSS-EX material with superior TiN coating - higher speed and feed, longer service life.
• High quality-good surface finishes, high productivity

Designed for drilling in stainless steels, mild steels, aluminium, aluminium alloy, aluminium die cast, copper alloy etc.

Features:

• 8% cobalt
• H8 Tolerance
• Straight Shank Drill
• Point angle 135 Degree
• DIN334
• Long Series

* Minimum order quantities - Up to 6mm qty 10, Above 6mm qty 5

• High helix-sharp cutting edges to avoid built-up and to be suitable for high performance drilling
• Reinforced web and Jobbers length-increasing rigidity and suitable for 4D-5D drilling
• High vanadium HSS-EX material with superior TiN coating - higher speed and feed, longer service life
• High quality-good surface finishes, high productivity and weeding second operation

Designed for 4D-5D drilling in stainless steels, mild steels, aluminium, aluminium alloy, aluminium die cast, copper, copper alloy etc.

• Starrett Fast Cut Bi-Metal Holesaws provide a smoother, faster cut on a wide range of materials, when compared to the previous constant pitch saw.
• New tooth material with extra cobalt for enhanced heat and wear resistance - improving the product life.
• The 5.5 TPI positive rake tooth form provides less torque for a smoother, faster cut in all materials.
• 30% extra gullet volume for better material penetration.
• Ideal for 3mm stainless steel, mild steel sheet, tubes, and other materials with a thickness of up to 13mm (1/2”).
• Size range: 14mm - 210mm (9/16" - 8.9/32").
• 41mm (1.5/8”) hole saw depth.
• Sizes ranging from 14mm - 152mm

• Self Centring
• 118 Degree Split Point
• Titanium Nitride (TiN) Coated
• Special flute geometry for increased chip evacuation and reduced vibration

High performance self-centring HSS goldex jobber drills with Titanium Nitride (TiN) coating on the working part of the drill. Long tool life on materials including steel alloyed and non-alloyed cast steel cast iron grey cast iron titanium aluminium graphite and malleable cast iron.

Drilling in steel, cast steel - alloyed and non-alloyed, stainless steel, titanium and aluminium.

High performance self-centring HSS goldex jobber drills with Titanium Nitride (TiN) coating on the working part of the drill. Long tool life on materials including steel alloyed and non-alloyed cast steel cast iron grey cast iron titanium aluminium graphite and malleable cast iron.

Features:

• Bright finish body and worm pattern for maximum chip clearance
• Self centring split point
• TiN coated on working area for longer tool life
• Designed for drilling deep holes in steel, stainless steel, cast iron, titanium and aluminium.

* Minimum order quantities - Up to 6mm qty 10, Above 6mm qty 5

• Bright finish body for maximum chip clearance
• Self centring split point above 1.6mm
• TiN coated on working area for longer tool life

Ideal for drilling steel, cast steel-alloyed and non-alloyed, stainless steel, titanium and aluminium. Particularly suited to stainless steel and titanium.

* Minimum order quantities - Up to 6mm qty 10, Above 6mm qty 5

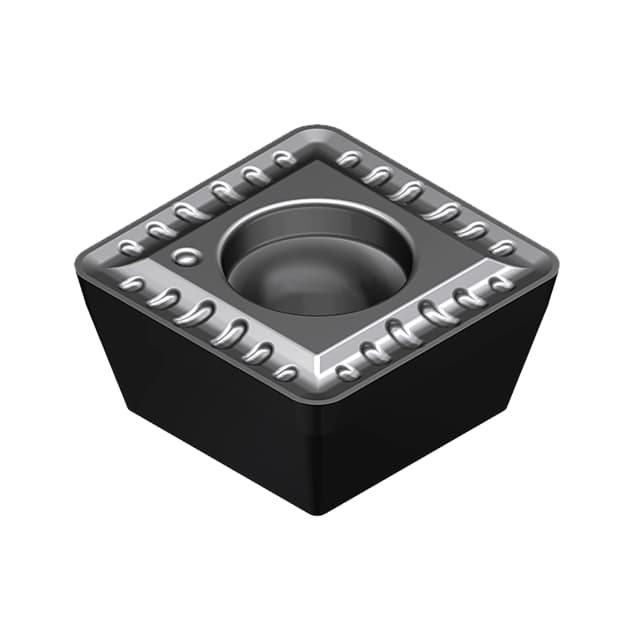

SPMX U-Drill Inserts For Stainless Steel & HRSA's (Europa)

• 4 cutting edges
• Sharp geometry for Stainless Steel and HRSA
• For use in QXF series U-drills

SPMX U-Drill Inserts General Purpose (Europa)

• 4 cutting edges
• Grades suitable for general purpose machining
• For use in QXF series U-drills
• Through coolant
• Grade ET602 for steel, stainless steel, cast iron and non-ferrous machining
• Grade ET63P for stainless steel, heat resistant alloys and some steel
• Grade ET73P for steel and hardened steels

QXF 5xD Indexable Drilling System (Europa)

• 1 insert style for the central and peripheral
• 5xD
• 4 cutting edges on the insert (SPMX style)
• Inserts suitable for steel, stainless steel, cast iron, heat resistant alloys and heat resistant alloys
• through coolant

QXF 4xD Indexable Drilling System (Europa)

• 1 insert style for the central and peripheral
• 4xD
• 4 cutting edges on the insert (SPMX style)
• Inserts suitable for steel, stainless steel, cast iron, heat resistant alloys and heat resistant alloys
• through coolant

QXF 3xD Indexable Drilling System (Europa)

• 1 insert style for the central and peripheral
• 3xD
• 4 cutting edges on the insert (SPMX style)
• Inserts suitable for steel, stainless steel, cast iron, heat resistant alloys and heat resistant alloys
• through coolant

QXF 2xD Indexable Drilling System (Europa)

• 1 insert style for the central and peripheral
• 2xD
• 4 cutting edges on the insert (SPMX style)
• Inserts suitable for steel, stainless steel, cast iron, heat resistant alloys and heat resistant alloys
• through coolant
