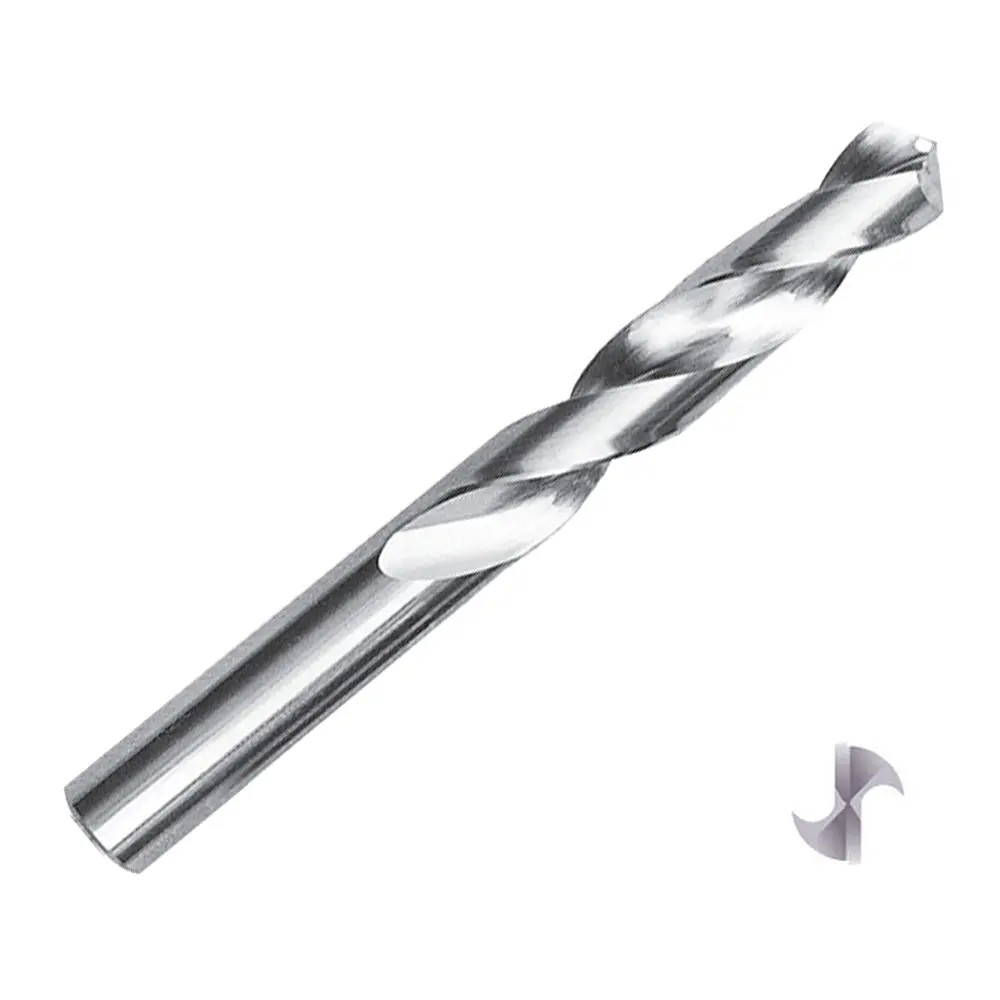

ZCC-CT 1101SC05 SC Series Solid Coated Carbide Twist Drill for Aluminium & Non-Ferrous Drilling - 5xD Stub Drill
Series: 1101SC05£8.78 excl. VAT
£10.54 incl. VAT
Features:
- Designed to machine materials with short chips such as aluminium and non-ferrous material
- Improved chip flow due to flute geometry and chip space
- Superior finish and avoids built up edge
- 5xD jobber drill
- Series also available as 3xD stub drill
Have a query?
Speak to one of our advisers today for expert advise.
Description | Diameter / D1 | Shank Diameter / D2 | Flute Length / L1 | Overall Length / L2 | Price |
|---|---|---|---|---|---|
| 1101SC051150YK20F | 11.5mm | 11.5mm | 94mm | 142mm | |
| 1101SC051200YK20F | 12mm | 12mm | 101mm | 151mm | |
| 1101SC050200YK20F | 2mm | 2mm | 24mm | 49mm | |
| 1101SC050250YK20F | 2.5mm | 2.5mm | 30mm | 57mm | |
| 1101SC050280YK20F | 2.8mm | 2.8mm | 33mm | 61mm | |
| 1101SC050300YK20F | 3mm | 3mm | 33mm | 61mm | |
| 1101SC050350YK20F | 3.5mm | 3.5mm | 39mm | 70mm | |
| 1101SC050380YK20F | 3.8mm | 3.8mm | 43mm | 75mm | |
| 1101SC050400YK20F | 4mm | 4mm | 43mm | 75mm | |
| 1101SC050420YK20F | 4.2mm | 4.2mm | 43mm | 75mm | |
| 1101SC050450YK20F | 4.5mm | 4.5mm | 47mm | 80mm | |
| 1101SC050480YK20F | 4.8mm | 4.8mm | 52mm | 86mm | |
| 1101SC050500YK20F | 5mm | 5mm | 52mm | 86mm | |
| 1101SC050550YK20F | 5.5mm | 5.5mm | 57mm | 93mm | |
| 1101SC050580YK20F | 5.8mm | 5.8mm | 57mm | 93mm | |
| 1101SC050600YK20F | 6mm | 6mm | 57mm | 93mm | |
| 1101SC050650YK20F | 6.5mm | 6.5mm | 63mm | 101mm | |
| 1101SC050680YK20F | 6.8mm | 6.8mm | 69mm | 109mm | |
| 1101SC050700YK20F | 7mm | 7mm | 69mm | 109mm | |
| 1101SC050750YK20F | 7.5mm | 7.5mm | 69mm | 109mm | |
| 1101SC050780YK20F | 7.8mm | 7.8mm | 75mm | 117mm | |
| 1101SC050800YK20F | 8mm | 8mm | 75mm | 117mm | |
| 1101SC050850YK20F | 8.5mm | 8.5mm | 75mm | 117mm | |
| 1101SC050880YK20F | 8.8mm | 8.8mm | 81mm | 125mm | |
| 1101SC050900YK20F | 9mm | 9mm | 81mm | 125mm |
Product Information
Specifications
| Category: | Hole Making Tools |
| Hole Making: | Solid Carbide Drills |
| Application: | Aluminium & Non-Ferrous |
| Range: | SC Series (Aluminium & Non-Ferrous Machining) |
| Brand: | ZCC-CT |
| Through Coolant: | Non Through Coolant |
| Length: | 5xD Jobber Drill |
| Substrate: | Carbide |
