Milling Cutters
Eco-Mill 4 Flute Coated Carbide General Purpose End Mills
STARKE Eco-Mill E454 4 flute TiALN coated carbide end mills for steel, stainless steel, cast iron and non-ferrous materials up to 45 HRC, in diameters from 1mm to 25mm.
Eco-Mill 3 Flute Coated Carbide General Purpose Milling Cutters
ECO-MILL coated carbide 3 flute end mill from STÄRKE, a TiALN coated general purpose milling cutter.
Suitable for cutting steel, stainless steel, cast iron and non-ferrous material including aluminium and copper.
Cut up to 45 HRC
Can be used wet or dry to increase tool life.
Micrograin carbide
Centre cutting
Available diameter sizes between 1mm and 20mm
Eco-Mill 2 Flute Coated Solid Carbide Slot Drill
ECO-MILL Coated Carbide 2 Flute End Mill from STÄRKE is a TiALN coated general purpose cutter.
- Suitable for cutting steel, stainless steel, cast iron and non-ferrous material including cast aluminium and copper.
- Cut up to 45 HRC
- Can be used wet or dry to increase tool life.
- Micrograin carbide
- Centre cutting
- Available diameter sizes between 1mm to 20mm
4 Flute Coated Carbide Long Series General Purpose End Mill (STARKE Eco-Mill)
- Micrograin Carbide
- TIALN coated to machine up to 45 HRC
- Excellent general purpose cutter for machining steel, stainless steel, aluminium alloys, cast iron and copper
- Centre cutting
- Sizes available: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm
Eco-Mill 2 Flute Coated Carbide Ball Nose Slot Drills
ECO-MILL coated carbide 2 flute ball nosed slot drill from STÄRKE, a TiALN coated general purpose cutter.
- Suitable for cutting steel, stainless steel, cast iron and non-ferrous materials including aluminium alloys and copper.
- Cut up to 45 HRC
- Can be used wet or dry to increase tool life.
- Micrograin carbide
- Available diameter sizes between 1mm and 20mm
£7.78 excl. VAT
£9.34 incl. VAT
Ali-Mill 2 Flute 45 Degree Carbide Slot Drills for Aluminium
ALI-MILL Solid Carbide 2 Flute 45 Degree Slot Drill from STÄRKE is 1st choice for machining aluminium and non ferrous material.
Polished flutes for superior surface finish.
The special Hi-Helix geometry enables better chip removal.
Micrograin carbide

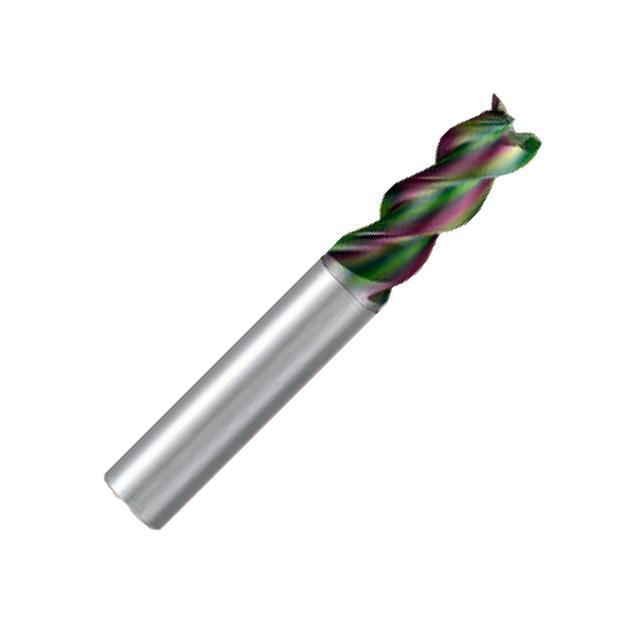

Ali-Mill 3 Flute 45 Degree Carbide Slot Drills for Aluminium
ALI-MILL Solid Carbide 3 Flute 45 Degree End Mill from STÄRKE is 1st choice for machining aluminium and non ferrous material.
- Polished flutes for superior surface finish.
- The special Hi-Helix geometry enables better chip removal.
- Micrograin carbide
2 Flute Long Series carbide Slot Drill for Aluminium (STARKE Ali-Mill)
- Suitable for machining of aluminium and other non-ferrous materials.
- Mirror polished fl utes
- Excellent surface finishes, superior chip removal.
- Micrograin carbide
- Hi-helix geometry
- Sizes available: 3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm
Ali-Mill 3 Flute Long Series carbide Slot Drill for Aluminium (STARKE AL453)
- Suitable for machining aluminium and other non-ferrous materials
- Mirror polishied flutes
- Excellent surface finishe and superior chip removal
- Micrograin carbide
- Hi-helix geometry
- Sizes available: 3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm
£9.81 excl. VAT
£11.77 incl. VAT
Ali-Mill 2 Flute Ball Nosed Solid Carbide for Aluminium
- Solid micrograin carbide
- 38 degree helix geometry enable better chip removal
- Polished flutes for superior surface finish
- 2 flutes
V60 4 Flute High Performance Variable Helix Milling Cutters
V60 Mill Coated Carbide 4 Flute End Mill from STARKE is a ALCRSiN high performance milling cutter.
- Premium grade carbide substrate 1st choice for machining stainless, inconels, titanium and steels.
- Variable helix angle designed to rough and finish with 1 tool.
- Chatter free design which allows for increased cutting depths and feed rates.
- Replaces the V554 series. Now has an improved coating to machine to a higher HRC.
STARKE Coated Carbide 4 Flute Roughing End Mill
- Cut up to 55 HRC
- Can be used wet or dry to increase tool life.
- Micrograin carbide
- Available diameter sizes between 6mm and 20mm
£15.85 excl. VAT
£19.02 incl. VAT
HSC Series 4 Flute Tialn Coated HSS Milling Cutters
- 4 flute HSSE end mill
- HSS 8% Cobalt gives improved tool life and performance in comparison to conventional HSS
- 1st choice for economical machining
- TIALN coated for increased tool life
£10.01 excl. VAT
£12.01 incl. VAT
HSC Series 3 Flute Tialn Coated HSS Milling Cutters
- 3 flute HSSE slot drill
- HSS 8% Cobalt gives improved tool life and performance in comparison to conventional HSS
- 1st choice for economical machining
- TIALN coated for increased tool life
£10.01 excl. VAT
£12.01 incl. VAT
HSC Series 2 Flute Tialn Coated HSS Milling Cutters
- 2 flute HSSE slot drill
- HSS 8% Cobalt gives improved tool life and performance in comparison to conventional HSS
- 1st choice for economical machining
- TIALN coated for increased tool life
£10.01 excl. VAT
£12.01 incl. VAT
HSCR Series Tialn Coated Fine Pitch Roughing HSS Milling Cutters
- 3 & 4 flute HSSE end mill ripper
- HSS 8% Cobalt gives improved tool life and performance in comparison to conventional HSS
- 1st choice for economical machining
- TIALN coated for increased tool life
£21.46 excl. VAT
£25.75 incl. VAT
PM75S Series High Performance Powder Metal Fine Pitch Ripper
Clarkson PM75 Multiple Helix high Performance Fine Pitch Ripper for General purpose machining in steels up to HRc40 Cast Iron Stainless steel Inconel. ASP60 premium powder metallurgy substrate with unique VX coating for longer tool life and superior surface finish.
- Multiple helix technology for reduced vibration
- Excellent performance in unstable machining conditions
- Higher cutting speed than equivalent HSSCo tools
- Reduced chatter
- Improved tool harmonics
- Exceptional performance in unstable cutting conditions
- Increased chip flow
PM75E Series High Performance Powder Metal 4 Flute Milling Cutters
Clarkson PM75 Multiple Helix high Performance 4 Flute End Mill for General purpose machining in steels up to HRc40 Cast Iron Stainless steel Inconel. ASP60 premium powder metallurgy substrate with unique VX coating for longer tool life and superior surface finish.
- Multiple helix technology for reduced vibration
- Excellent performance in unstable machining conditions
- Higher cutting speed than equivalent HSSCo tools
- Reduced chatter
- Improved tool harmonics
- Exceptional performance in unstable cutting conditions
- Increased chip flow
FRANKEN 4 Flute Long Length High Performance End Mill
FRANKEN 4 Flute Long Length High Performance End Mill
- Solid micrograin carbide
- TiALN coated
- Centre cutting
- Variable helix geometry
- Rough and finish with 1 tool
- Chamfered for corner protection
- Suitable for steel, stainless steel, cast iron, titanium and HRSA
£24.80 excl. VAT
£29.76 incl. VAT
£21.69excl. VAT
£26.03incl. VAT
FRANKEN 4 Flute Solid Carbide Corner Radius End Mill
FRANKEN Top-Cut 4 Flute Corner Radius High Performance End Mill
- Solid micrograin carbide
- TiALN coated
- Centre cutting
- Variable helix geometry
- Rough and finish with 1 tool
- Corner radius
- Several coerner radii per cutting diameter
- Suitable for steel, stainless steel, cast iron, titanium and HRSA
£29.60 excl. VAT
£35.52 incl. VAT
£25.83excl. VAT
£31.00incl. VAT
FRANKEN Top-Cut Extra Long Length High Performance Ball Nosed End Mill
FRANKEN Top-Cut Extra Long Length High Performance Ball Nosed End Mill
- Solid micrograin carbide
- TiALN coated
- Extra long
- Centre cutting
- Variable helix geometry
- Rough and finish with 1 tool
- Suitable for steel, stainless steel, cast iron, titanium and HRSA
£48.60 excl. VAT
£58.32 incl. VAT
£41.66excl. VAT
£49.99incl. VAT
Alu-Cut 2544K Series 2 & 3 Flute Long Length Milling Cutters
The Alu-Cut series for high performance machining of aluminum and high silicon aluminum.
- Highest metal removal rates for stable milling processes
- Several corner radii per diameter
- Center cutting
- GLT coated for improved tool life, works in copper alloys in addition to aluminum
- Rough and finish with 1 tool
£41.90 excl. VAT
£50.28 incl. VAT
£36.63excl. VAT
£43.96incl. VAT
FRANKEN Extra Long Length High Performance End Mill 4XD
FRANKEN Extra Long Length High Performance End Mill 4XD
- Solid micrograin carbide
- TiALN coated
- Extra long (4XD)
- Centre cutting
- Variable helix geometry
- Rough and finish with 1 tool
- Chamfered for corner protection
- Suitable for steel, stainless steel, cast iron, titanium and HRSA
£47.00 excl. VAT
£56.40 incl. VAT
£41.04excl. VAT
£49.25incl. VAT
NANO-MILL Max-Mill JWA Series Coated Carbide 4 Flute Roughing End Mill
Max-Mill Coated Carbide 4 Flute Roughing End Mill from Nano-Mill is a general purpose cutter, ideal for cutting carbon steel, high speed steel, stainless steel, alloy, inconel and titanium. MAX-MILL cutters cut up to 55 HRC, and can be used wet or dry to increase tool life.
£21.77 excl. VAT
£26.12 incl. VAT
£63.37excl. VAT
£76.04incl. VAT
Frequently Asked Questions
A milling cutter is a rotary cutting tool with one or more flutes (cutting edges) used to remove material from a workpiece.
Milling Cutters are mounted in a milling machine or CNC machining centre, it rotates at high speed to perform operations such as slotting, profiling, pocketing and facing across a wide range of materials.
The most common types of milling cutter include:
End Mills – versatile cutters for side milling, slotting, profiling and plunging. They are available in square, ball nose and corner radius profiles.
Slot Drills – designed specifically for plunge-cutting and slotting, typically with 2 flutes and centre-cutting geometry
Ball Nose Cutters – feature a hemispherical tip for 3D contouring, sculpting and finishing curved surfaces
Corner Radius Cutters – have a radiused corner that strengthens the cutting edge, reduces chipping and improves surface finish on shoulders & pockets
Roughing (Ripper/Ripping) Cutters – these cutters feature a serrated flute design for heavy material removal at high feed rates - ideal for roughing passes.
When selecting a new Milling Cutter, thought should be given to the material, the coating, the cutting action and the geometry of the item.
1 flute to 2 flutes – best for aluminium and non-ferrous materials where large chip clearance is needed
3 flutes – a good compromise between chip clearance and surface finish - popular for aluminium and general-purpose work
4 flutes – the standard choice for steel and most ferrous materials, offering a good balance of strength and finish
5 flutes & above – high-performance cutters for finishing passes and harder materials, allowing higher feed rates while maintaining a fine surface finish.
HSS (High Speed Steel) – economical and tough - suitable for manual machines and low-speed applications
HSSE (8% Cobalt HSS) – improved heat resistance and hardness over standard HSS - good for stainless steel and tougher materials
Solid Carbide – significantly harder and more wear-resistant - ideal for CNC machining at higher speeds and feeds across steel, stainless & exotic alloys
Powder Metal – offers toughness close to HSS with wear resistance approaching carbide - excellent for interrupted cuts & demanding applications.
A variable helix cutter has flutes with differing helix angles (e.g. 35° & 38°).
This breaks up harmonic vibrations during cutting which significantly reduces chatter, this in turn results is better surface finish, longer tool life and the ability to take more aggressive cuts - especially in difficult-to-machine materials!
The key formulas for correctly calculating the correct speeds for your milling cutter are:
Spindle speed (RPM) = (Cutting speed × 1000) ÷ (π × cutter diameter in mm)
Feed rate (mm/min) = RPM × feed per tooth × number of flutes
Cutting speed depends on the workpiece material and the cutter substrate/coating.
Most of our product ranges include recommended cutting data and you can also contact our in-house engineers for tailored guidance.
