Digital & Analogue Hardness and Surface Testers

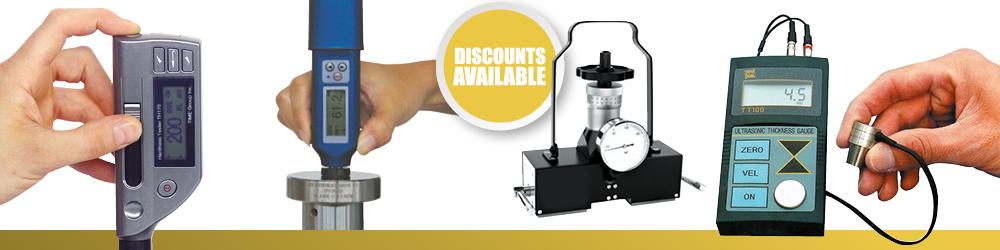

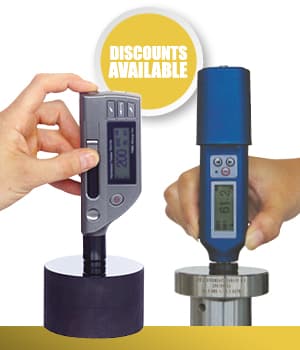

Banner image highlighting some of the products in this category.
CV ULTRASONIC THICKNESS GAUGE - TT-100 SERIES

CV ULTRASONIC THICKNESS GAUGE -TT-100 SERIES

Series: W-TT
  • Easy to operate ultrasonic wall thickness gauge
  • Standard 5 MHz transducer included, special purpose types available
  • Clear 4-Digit LCD display
  • Retention of last 10 readings



  • Applications
  • TT-100 for metal, glass, plastics etc (Standard model)
  • TT-120 for high temperature steel (Up to 300ºC)
  • TT-130 for metals, glass, plastics etc, 0.01mm resolution
  • Standard Delivey
  • Transducer 5MHz
  • Transducer ZW5P (TT-120)
  • Integrated steel calibration plate 4.0mm

  • Ultrasonic couplant
  • Operation manual
  • Carrying case
Starting From:
£815.50 excl. VAT
£978.60 incl. VAT

BOWERS W-TH-170 UNIVERSAL PORTABLE DIGITAL HARDNESS TESTER

BOWERS W-TH-170 UNIVERSAL PORTABLE DIGITAL HARDNESS TESTER

Series: W-TH170
  • Impact device D integrated:no cables!
  • Integrated impact device C featuring low impact energy for surface hardened components and thin walled components (TH-172)
  • Integrated impact device DL featuring testing in confined spaces (TH-174)
  • Wide measuring range.
  • Direct display of hardness scales Rockwell HRB, HRC, Vickers HV, Brinell HB, Shore HS, Leebs HLD (TH-170)/Leebs HLC (TH-172)/Leebs HLDL
  • For all metallic materials (TH-170), for steel and cast steel (TH-172/174), and cold work tool steel (TH-172)
  • Provides testing at any angle
  • Simple handling and low test expenditure
  • High accuracy ±0.5%
  • Clear LCD display showing all functions and parameters
  • Conforms to ASTM A 956 and DIN 50156
  • USB output to PC only
Starting From:
£1659.00 excl. VAT
£1990.80 incl. VAT

BOWERS W-TH-110 DIGITAL UNIVERSAL PORTABLE HARDNESS TESTER

BOWERS W-TH-110 DIGITAL UNIVERSAL PORTABLE HARDNESS TESTER

Series: W-TH110
  • Test results appear directly on the large display
  • According to ASTM and DIN standard
  • Display scales HV, HB, HRC, HRB, HS and conversion to tensile strength
  • Highly accurate readings ± 0.5% at 800 HL
  • Correction for impact direction 360 degrees
  • Chargeable battery pack to ensure many hours of undisturbed testing and printing
  • Direct keys for easy set up of testing parameters
  • Thermal mini-printer installed on the main unit
  • Ridged ABS anti-shock casing with sealed keypad
  • Optional impact devices available on request.

Standard Delivery

  • Main unit with impact device type D
  • Printer (on top)
  • Test block with HLD-value
  • Charger
  • Cleaning brush
  • Coupling paste
  • Table suuport for main unit
  • Certificate
  • Manual
  • Plastic carrying case

Optional Accessories

  • Special impact devices
  • UKAS certified test blocks
  • Support rings for convex and concave surfaces
Starting From:
£1915.50 excl. VAT
£2298.60 incl. VAT

BOWERS W-INMR/01 MAGNETIC PORTABLE ROCKWELL HARDNESS TESTER - ANALOGUE

BOWERS W-INMR/01 MAGNETIC PORTABLE ROCKWELL HARDNESS TESTER - ANALOGUE

Series: W-INMR-01

Magnetic base hardness tester designed according to the principle of Rockwell hardness testing.

  • The test head can be fixed to the surface of iron and steel components by magnetic force. Support to the test piece is not required as the 350kg+ magnetic base will hold the unit firmly in position.
  • The testing accuracy complies to ISO 6508 or ASTM E18 and is comparable to a Rockwell bench hardness tester.
  • Testing can be done regardless of the shape of the component as long as there is a flat surface for positioning of the magnetic base.
  • Able to test large-size workpieces which are assembled, unable to cut or inconvenient to move such as large-size moulds, steel plates, steel tubes, steel structures, pressure vessels, metallic pipe lines or the slide ways of machine tools.

Optional Accessories

  • Rockwell indenters
  • Rockwell balls
Starting From:
£3070.50 excl. VAT
£3684.60 incl. VAT
