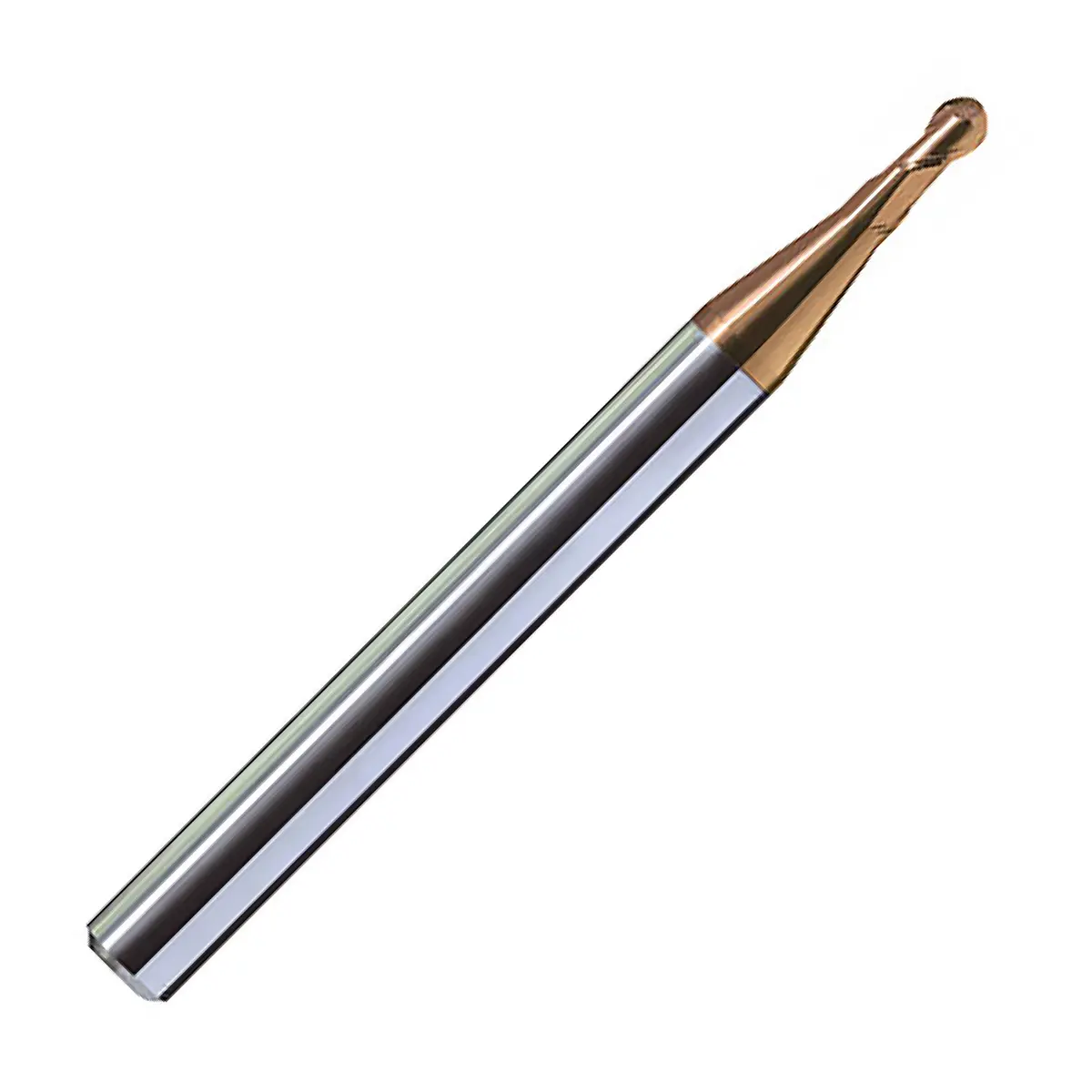

ZCC-CT HM Series 2 Flute Ball Nose Rib Processing Hardened Steel Milling Cutters
Series: HM-2BP£23.53 excl. VAT
£28.24 incl. VAT
ZCC-CT HM-2BP 2 Flute Ball Nose Rib Processing Slot Drill
- Excellent tool design covers large chip pocket, good stability and machining efficiency
- Optimized cutting geometry (Rake angle) assures edge stabitlity and sharpness
- Ultra fine grain carbide
- KMG555 Nano-ALTiN coating base for hard machining at high temperatures
- For machining upto 68HRC
Downloads
| hm-2bp-cutting-data.pdf |
Have a query?
Speak to one of our advisers today for expert advise.
Description | Diameter / D1 | Shank Diameter / D2 | Cutting Length / L1 | Overall Length / L2 | Radius / R | Length Below Shank / L3 | Neck Dia | Price |
|---|---|---|---|---|---|---|---|---|
| HM2BPR025M04KMG555 | 0.5mm | 4mm | 0.7mm | 50mm | 0.25mm | 4mm | 0.45mm | |
| HM2BPR025M06KMG555 | 0.5mm | 4mm | 0.7mm | 50mm | 0.25mm | 6mm | 0.45mm | |
| HM2BPR03M04KMG555 | 0.6mm | 4mm | 0.9mm | 50mm | 0.3mm | 4mm | 0.55mm | |
| HM2BPR03M06KMG555 | 0.6mm | 4mm | 0.9mm | 50mm | 0.3mm | 6mm | 0.55mm | |
| HM2BPR03M08KMG555 | 0.6mm | 4mm | 0.9mm | 50mm | 0.3mm | 8mm | 0.55mm | |
| HM2BPR04M04KMG555 | 0.8mm | 4mm | 1.2mm | 50mm | 0.4mm | 4mm | 0.75mm | |
| HM2BPR04M06KMG555 | 0.8mm | 4mm | 1.2mm | 50mm | 0.4mm | 6mm | 0.75mm | |
| HM2BPR04M08KMG555 | 0.8mm | 4mm | 1.2mm | 50mm | 0.4mm | 8mm | 0.75mm | |
| HM2BPR04M10KMG555 | 0.8mm | 4mm | 1.2mm | 50mm | 0.4mm | 10mm | 0.75mm | |
| HM2BPR05M04KMG555 | 1mm | 4mm | 1.5mm | 50mm | 0.5mm | 4mm | 0.95mm | |
| HM2BPR05M06KMG555 | 1mm | 4mm | 1.5mm | 50mm | 0.5mm | 6mm | 0.95mm | |
| HM2BPR05M08KMG555 | 1mm | 4mm | 1.5mm | 50mm | 0.5mm | 8mm | 0.95mm | |
| HM2BPR05M10KMG555 | 1mm | 4mm | 1.5mm | 50mm | 0.5mm | 10mm | 0.95mm | |
| HM2BPR05M12KMG555 | 1mm | 4mm | 1.5mm | 50mm | 0.5mm | 12mm | 0.95mm | |
| HM2BPR06M06KMG555 | 1.2mm | 4mm | 1.8mm | 50mm | 0.6mm | 6mm | 1.15mm | |
| HM2BPR06M08KMG555 | 1.2mm | 4mm | 1.8mm | 50mm | 0.6mm | 8mm | 1.15mm | |
| HM2BPR06M12KMG555 | 1.2mm | 4mm | 1.8mm | 50mm | 0.6mm | 12mm | 1.15mm | |
| HM2BPR06M16KMG555 | 1.2mm | 4mm | 1.8mm | 50mm | 0.6mm | 16mm | 1.15mm | |
| HM2BPR075M08KMG555 | 1.5mm | 4mm | 2.3mm | 50mm | 0.75mm | 8mm | 1.45mm | |
| HM2BPR075M12KMG555 | 1.5mm | 4mm | 2.3mm | 50mm | 0.75mm | 12mm | 1.45mm | |
| HM2BPR075M16KMG555 | 1.5mm | 4mm | 2.3mm | 50mm | 0.75mm | 16mm | 1.45mm | |
| HM2BPR10M06KMG555 | 2mm | 4mm | 3mm | 50mm | 1mm | 6mm | 1.95mm | |
| HM2BPR10M08KMG555 | 2mm | 4mm | 3mm | 50mm | 1mm | 8mm | 1.95mm | |
| HM2BPR10M10KMG555 | 2mm | 4mm | 3mm | 50mm | 1mm | 10mm | 1.95mm | |
| HM2BPR10M12KMG555 | 2mm | 4mm | 3mm | 50mm | 1mm | 12mm | 1.95mm |
Product Information
ZCC-CT HM-2BP 2 Flute Ball Nose Rib Processing Slot Drill For Machining Cast Iron and Nodular cast Iron, Quenched, Tempered and Hardened Steels up to 68 HRC. ZCC-CT are one of the leading carbide tools manufacturer worldwide. They supply a wide range of high quality cutting tools.
Specifications
| Category: | Milling Cutters |
| Application: | Hardened Steel |
| Range: | HM Series |
| Brand: | ZCC-CT |
| No. Flutes: | 2 Flute |
| Profile: | Ball Nose |
| Length: | Standard Length |
| Category: | Milling Tools |
| Application: | Steel |
| Substrate: | Carbide |
