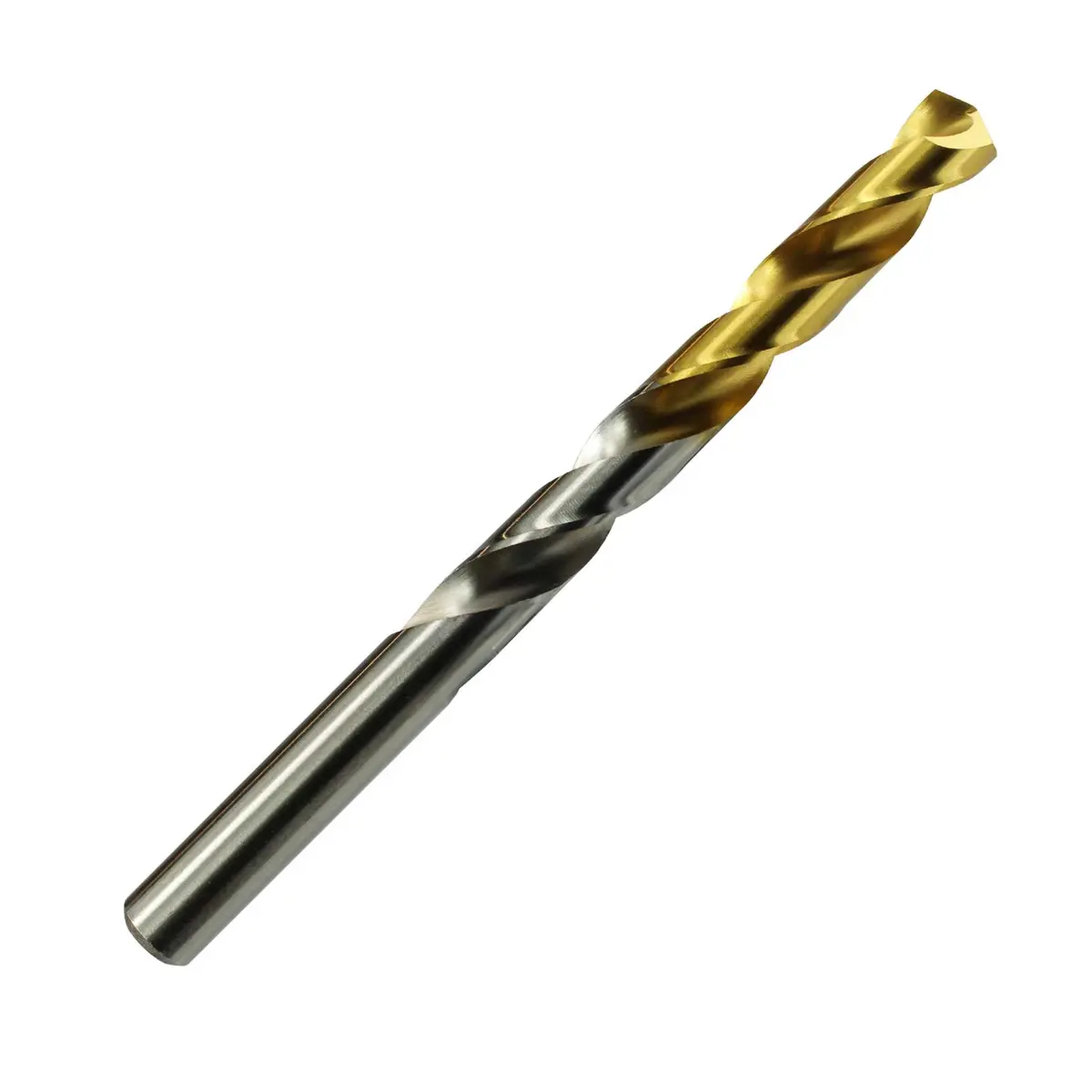

Osborn 810505 HSS 8% Cobalt TiN Coated Jobber Drill
Series: 810505£0.96 excl. VAT
£1.15 incl. VAT
- Bright finish body for maximum chip clearance
- Self centring split point above 1.6mm
- TiN coated on working area for longer tool life
Ideal for drilling steel, cast steel-alloyed and non-alloyed, stainless steel, titanium and aluminium. Particularly suited to stainless steel and titanium.
* Minimum order quantities - Up to 6mm qty 10, Above 6mm qty 5
Have a query?
Speak to one of our advisers today for expert advise.
Description | Diameter / D1 | Shank Diameter / D2 | Flute Length / L1 | Overall Length / L2 | Price |
|---|---|---|---|---|---|
| 8105050340 | 3.4mm | 3.4mm | 39mm | 70mm | |
| 8105050430 | 4.3mm | 4.3mm | 47mm | 80mm | |
| 8105050450 | 4.5mm | 4.5mm | 47mm | 80mm | |
| 8105050470 | 4.7mm | 4.7mm | 47mm | 80mm | |
| 8105050730 | 7.3mm | 7.3mm | 69mm | 109mm | |
| 8105050750 | 7.5mm | 7.5mm | 69mm | 109mm | |
| 8105050910 | 9.1mm | 9.1mm | 81mm | 125mm | |
| 8105051200 | 12mm | 12mm | 101mm | 151mm | |
| 8105050110 | 1.1mm | 1.1mm | 14mm | 36mm | |
| 8105050150 | 1.5mm | 1.5mm | 18mm | 40mm | |
| 8105050160 | 1.6mm | 1.6mm | 20mm | 43mm | |
| 8105050170 | 1.7mm | 1.7mm | 20mm | 43mm | |
| 8105050180 | 1.8mm | 1.8mm | 22mm | 46mm | |
| 8105050200 | 2mm | 2mm | 24mm | 49mm | |
| 8105050210 | 2.1mm | 2.1mm | 24mm | 49mm | |
| 8105050230 | 2.3mm | 2.3mm | 27mm | 53mm | |
| 8105050240 | 2.4mm | 2.4mm | 30mm | 57mm | |
| 8105050250 | 2.5mm | 2.5mm | 30mm | 57mm | |
| 8105050270 | 2.7mm | 2.7mm | 33mm | 61mm | |
| 8105050300 | 3mm | 3mm | 33mm | 61mm | |
| 8105050280 | 2.8mm | 2.8mm | 33mm | 61mm | |
| 8105050310 | 3.1mm | 3.1mm | 36mm | 65mm | |
| 8105050570 | 5.7mm | 5.7mm | 57mm | 93mm | |
| 8105050320 | 3.2mm | 3.2mm | 36mm | 65mm | |
| 8105050760 | 7.6mm | 7.6mm | 75mm | 117mm |
Product Information
Osborn 810505 HSS 8% Cobalt TiN Coated Jobber Drill
- Bright finish body for maximum chip clearance
- Self centring split point above 1.6mm
- TiN coated on working area for longer tool life
Ideal for drilling steel, cast steel-alloyed and non-alloyed, stainless steel, titanium and aluminium. Particularly suited to stainless steel and titanium.
* Minimum order quantities - Up to 6mm qty 10, Above 6mm qty 5
Specifications
| Category: | Hole Making Tools |
| Hole Making: | HSSE Drills |
| Application: | General Purpose |
| Brand: | Osborn |
| Application: | Steel |
| Application: | Stainless Steel |
| Application: | Aluminium & Non-Ferrous |
| Application: | Heat-Resistant Super Alloys |
| Substrate: | HSSE |
| Length: | 5xD Jobber Drill |
