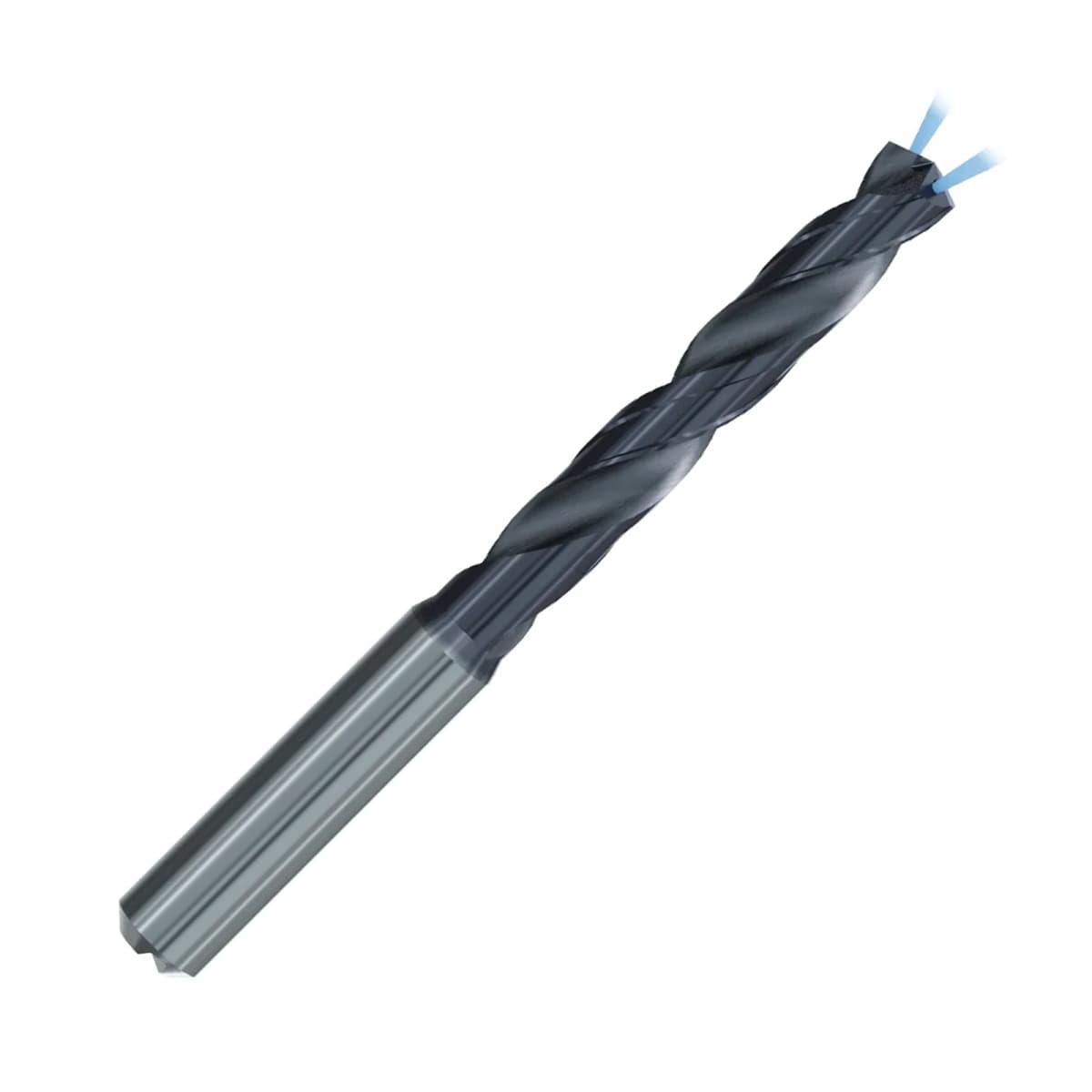

Emuge Franken Solid Carbide Through Coolant Stub Drill
Series: TA201344£37.50 excl. VAT
£45.00 incl. VAT
Emuge Franken Basic Drill series for high performance drilling.
- For high-speed drilling of Steel, Stainless Steel Cast Iron, Aluminium and Heat-Resistant Alloys
- Coated for increased tool life
- 3xD stub drill
- Through coolant
- Out performing most major brands on the market
Have a query?
Speak to one of our advisers today for expert advise.
Description | Diameter / D1 | Overall Length / L1 | Flute Length / L2 | Effective Drill Depth / L3 | Shank Length / L4 | L5 / | Shank Diameter / D2 | Price |
|---|---|---|---|---|---|---|---|---|
| TA201344.0300 | 3mm | 62mm | 20mm | 14mm | 36mm | 0.6mm | 6mm | |
| TA201344.0310 | 3.1mm | 62mm | 20mm | 14mm | 36mm | 0.6mm | 6mm | |
| TA201344.0320 | 3.2mm | 62mm | 20mm | 14mm | 36mm | 0.6mm | 6mm | |
| TA201344.0330 | 3.3mm | 62mm | 20mm | 14mm | 36mm | 0.6mm | 6mm | |
| TA201344.0340 | 3.4mm | 62mm | 20mm | 14mm | 36mm | 0.6mm | 6mm | |
| TA201344.0350 | 3.5mm | 62mm | 20mm | 14mm | 36mm | 0.6mm | 6mm | |
| TA201344.0360 | 3.6mm | 62mm | 20mm | 14mm | 36mm | 0.7mm | 6mm | |
| TA201344.0370 | 3.7mm | 62mm | 20mm | 14mm | 36mm | 0.7mm | 6mm | |
| TA201344.0380 | 3.8mm | 66mm | 24mm | 17mm | 36mm | 0.7mm | 6mm | |
| TA201344.0390 | 3.9mm | 66mm | 24mm | 17mm | 36mm | 0.7mm | 6mm | |
| TA201344.0400 | 4mm | 66mm | 24mm | 17mm | 36mm | 0.7mm | 6mm | |
| TA201344.0410 | 4.1mm | 66mm | 24mm | 17mm | 36mm | 0.8mm | 6mm | |
| TA201344.0420 | 4.2mm | 66mm | 24mm | 17mm | 36mm | 0.8mm | 6mm | |
| TA201344.0430 | 4.3mm | 66mm | 24mm | 17mm | 36mm | 0.8mm | 6mm | |
| TA201344.0440 | 4.4mm | 66mm | 24mm | 17mm | 36mm | 0.8mm | 6mm | |
| TA201344.0450 | 4.5mm | 66mm | 24mm | 17mm | 36mm | 0.8mm | 6mm | |
| TA201344.0460 | 4.6mm | 66mm | 24mm | 17mm | 36mm | 0.8mm | 6mm | |
| TA201344.0465 | 4.65mm | 66mm | 24mm | 17mm | 36mm | 0.9mm | 6mm | |
| TA201344.0470 | 4.7mm | 66mm | 24mm | 17mm | 36mm | 0.9mm | 6mm | |
| TA201344.0480 | 4.8mm | 66mm | 28mm | 20mm | 36mm | 0.9mm | 6mm | |
| TA201344.0490 | 4.9mm | 66mm | 28mm | 20mm | 36mm | 0.9mm | 6mm | |
| TA201344.0500 | 5mm | 66mm | 28mm | 20mm | 36mm | 0.9mm | 6mm | |
| TA201344.0510 | 5.1mm | 66mm | 28mm | 20mm | 36mm | 0.9mm | 6mm | |
| TA201344.0520 | 5.2mm | 66mm | 28mm | 20mm | 36mm | 1mm | 6mm | |
| TA201344.0530 | 5.3mm | 66mm | 28mm | 20mm | 36mm | 1mm | 6mm |
Product Information
Emuge Franken Basic Drill series for high performance drilling.
- For high-speed drilling of Steel, Stainless Steel Cast Iron, Aluminium and Heat-Resistant Alloys
- Coated for increased tool life
- 3xD stub drill
- Through coolant
- Out performing most major brands on the market
Specifications
| Application: | General Purpose |
| Brand: | Emuge-Franken |
| Category: | Hole Making Tools |
| Hole Making: | Solid Carbide Drills |
| Length: | 3xD Stub Drill |
| Through Coolant: | Through Coolant |
| Application: | Stainless Steel |
| Application: | Steel |
| Application: | Heat-Resistant Super Alloys |
| Application: | Cast Iron |
