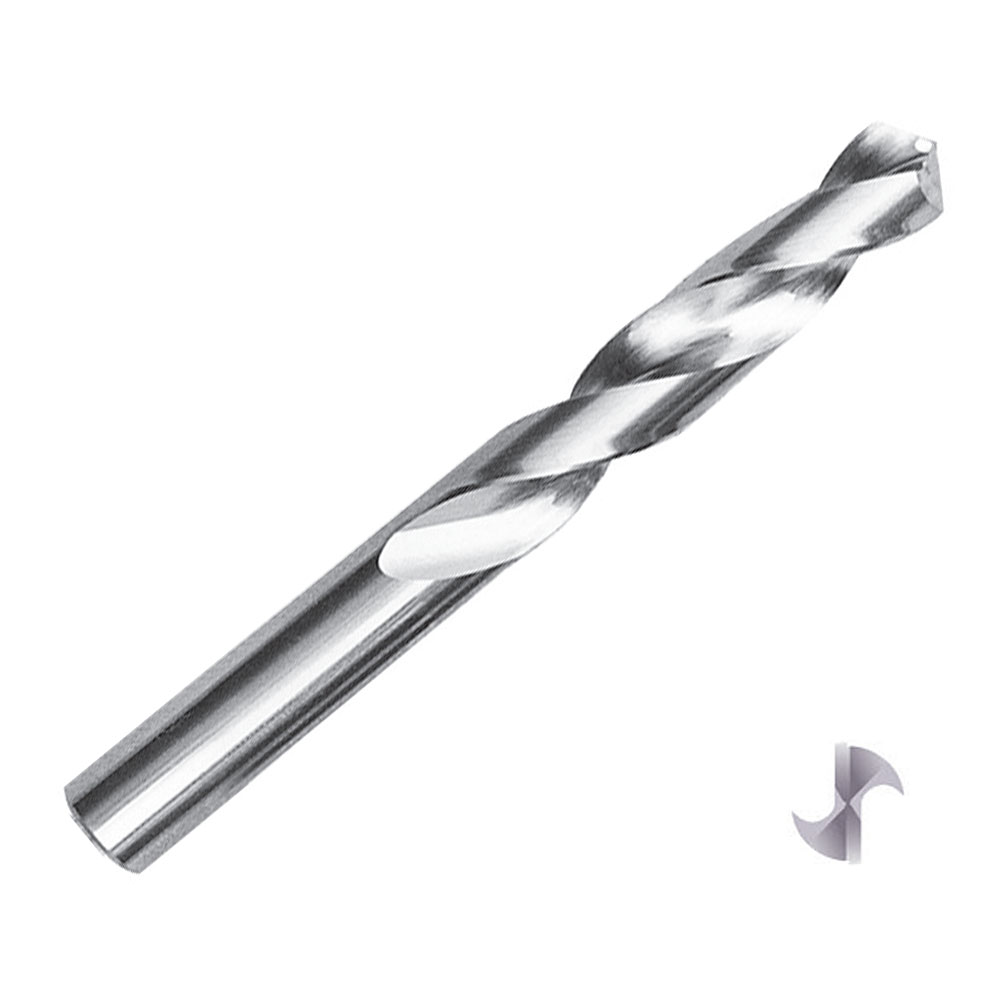

ZCC-CT 1105SC03 SC Series Solid Coated Carbide Twist Drill for Aluminium Drilling - 3xD Stub Drill..
ZCC-CT 1105SC03 SC Series Solid Coated Carbide Twist Drill for Aluminium Drilling - 3xD Stub Drill..
ZCC-CT 1105SC03 SC Series Solid Coated Carbide Twist Drill for Aluminium Drilling - 3xD Stub Drill..

ZCC-CT 1105SC03 SC Series Solid Coated Carbide Twist Drill for Aluminium & Non-Ferrous Drilling - 3xD Stub Drill

Series: 1105SC03

Features:

  • Designed to machine materials with short chips such as aluminium and non-ferrous material
  • Improved chip flow due to flute geometry and chip space
  • Superior finish and avoids built up edge
  • 3xD stub drill
  • Series also available as 5xD jobber drill

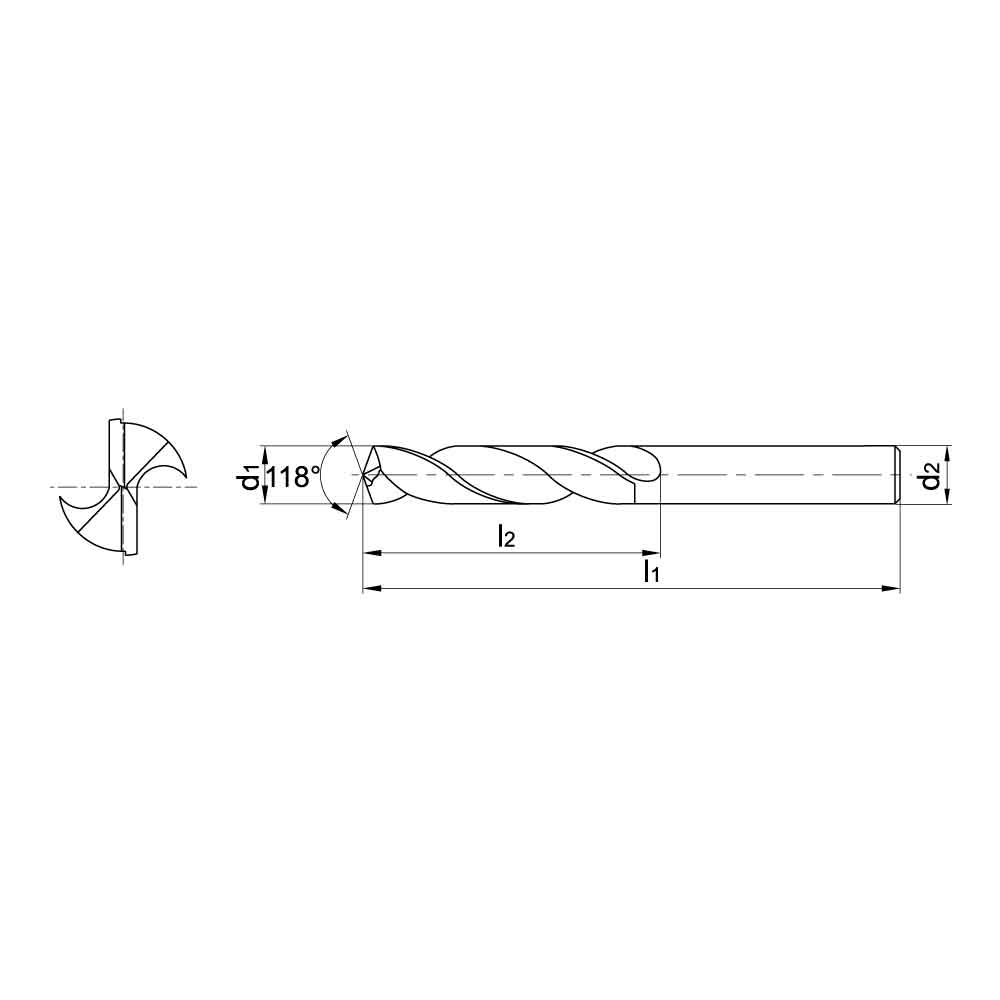

Description
D1
D2
L1
L2
Diameter
Shank Diameter
Flute Length
Overall Length
Stock
Price
Add To Cart
SKU: 1105SC030200YK20F
Diameter: 2mm
Shank Diameter: 2mm
Flute Length: 12mm
Overall Length: 38mm

1-2 days
subject to

availability

SC-Drill Ø 2.00; l=3xD ; Shaft HA; uncoated

List Price: £7.80
SKU: 1105SC030250YK20F
Diameter: 2.5mm
Shank Diameter: 2.5mm
Flute Length: 14mm
Overall Length: 43mm

1-2 days
subject to

availability

SC-Drill Ø 2.50; l=3xD ; Shaft HA; uncoated

List Price: £7.91
SKU: 1105SC030280YK20F
Diameter: 2.8mm
Shank Diameter: 2.8mm
Flute Length: 16mm
Overall Length: 46mm

1-2 days
subject to

availability

SC-Drill Ø 2.80; l=3xD ; Shaft HA; uncoated

List Price: £8.82
SKU: 1105SC030300YK20F
Diameter: 3mm
Shank Diameter: 3mm
Flute Length: 16mm
Overall Length: 46mm

1-2 days
subject to

availability

SC-Drill Ø 3.00; l=3xD ; Shaft HA; uncoated

List Price: £8.02
SKU: 1105SC030310YK20F
Diameter: 3.1mm
Shank Diameter: 3.1mm
Flute Length: 18mm
Overall Length: 49mm

1-2 days
subject to

availability

3.1MM 3XD SC SERIES CARBIDE DRILL

List Price: £8.71
SKU: 1105SC030320YK20F
Diameter: 3.2mm
Shank Diameter: 3.2mm
Flute Length: 18mm
Overall Length: 49mm

1-2 days
subject to

availability

SC-Drill Ø 3.20; l=3xD ; Shaft HA; uncoated

List Price: £8.71
SKU: 1105SC030330YK20F
Diameter: 3.3mm
Shank Diameter: 3.3mm
Flute Length: 18mm
Overall Length: 49mm

1-2 days
subject to

availability

3.3MM 3XD SC SERIES CARBIDE DRILL

List Price: £8.71
SKU: 1105SC030340YK20F
Diameter: 3.4mm
Shank Diameter: 3.4mm
Flute Length: 20mm
Overall Length: 52mm

1-2 days
subject to

availability

3.4MM 3XD SC SERIES CARBIDE DRILL

List Price: £8.82
SKU: 1105SC030350YK20F
Diameter: 3.5mm
Shank Diameter: 3.5mm
Flute Length: 20mm
Overall Length: 52mm

1-2 days
subject to

availability

SC-Drill Ø 3.50; l=3xD ; Shaft HA; uncoated

List Price: £8.82
SKU: 1105SC030360YK20F
Diameter: 3.6mm
Shank Diameter: 3.6mm
Flute Length: 20mm
Overall Length: 52mm

1-2 days
subject to

availability

SC-Drill Ø 3.60; l=3xD ; Shaft HA; uncoated

List Price: £8.82
SKU: 1105SC030370YK20F
Diameter: 3.7mm
Shank Diameter: 3.7mm
Flute Length: 20mm
Overall Length: 52mm

1-2 days
subject to

availability

SC-Drill Ø 3.70; l=3xD ; Shaft HA; uncoated

List Price: £9.04
SKU: 1105SC030380YK20F
Diameter: 3.8mm
Shank Diameter: 3.8mm
Flute Length: 22mm
Overall Length: 55mm

1-2 days
subject to

availability

SC-Drill Ø 3.80; l=3xD ; Shaft HA; uncoated

List Price: £9.04
SKU: 1105SC030390YK20F
Diameter: 3.9mm
Shank Diameter: 3.9mm
Flute Length: 22mm
Overall Length: 55mm

1-2 days
subject to

availability

SC-Drill Ø 3.90; l=3xD ; Shaft HA; uncoated

List Price: £9.04
SKU: 1105SC030400YK20F
Diameter: 4mm
Shank Diameter: 4mm
Flute Length: 22mm
Overall Length: 55mm

1-2 days
subject to

availability

4MM 3XD SC SERIES CARBIDE DRILL

List Price: £9.04
SKU: 1105SC030410YK20F
Diameter: 4.1mm
Shank Diameter: 4.1mm
Flute Length: 22mm
Overall Length: 55mm

1-2 days
subject to

availability

SC-Drill Ø 4.10; l=3xD ; Shaft HA; uncoated

List Price: £9.84
SKU: 1105SC030420YK20F
Diameter: 4.2mm
Shank Diameter: 4.2mm
Flute Length: 22mm
Overall Length: 55mm

1-2 days
subject to

availability

4.2MM 3XD SC SERIES CARBIDE DRILL

List Price: £9.84
SKU: 1105SC030430YK20F
Diameter: 4.3mm
Shank Diameter: 4.3mm
Flute Length: 24mm
Overall Length: 58mm

1-2 days
subject to

availability

SC-Drill Ø 4.30; l=3xD ; Shaft HA; uncoated

List Price: £9.96
SKU: 1105SC030440YK20F
Diameter: 4.4mm
Shank Diameter: 4.4mm
Flute Length: 24mm
Overall Length: 58mm

1-2 days
subject to

availability

SC-Drill Ø 4.40; l=3xD ; Shaft HA; uncoated

List Price: £9.96
SKU: 1105SC030450YK20F
Diameter: 4.5mm
Shank Diameter: 4.5mm
Flute Length: 24mm
Overall Length: 58mm

1-2 days
subject to

availability

SC-Drill Ø 4.50; l=3xD ; Shaft HA; uncoated

List Price: £9.96
SKU: 1105SC030460YK20F
Diameter: 4.6mm
Shank Diameter: 4.6mm
Flute Length: 24mm
Overall Length: 58mm

1-2 days
subject to

availability

SC-Drill Ø 4.60; l=3xD ; Shaft HA; uncoated

List Price: £9.96
SKU: 1105SC030480YK20F
Diameter: 4.8mm
Shank Diameter: 4.8mm
Flute Length: 26mm
Overall Length: 62mm

1-2 days
subject to

availability

SC-Drill Ø 4.80; l=3xD ; Shaft HA; uncoated

List Price: £10.18
SKU: 1105SC030490YK20F
Diameter: 4.9mm
Shank Diameter: 4.9mm
Flute Length: 26mm
Overall Length: 62mm

1-2 days
subject to

availability

SC-Drill Ø 4.90; l=3xD ; Shaft HA; uncoated

List Price: £10.18
SKU: 1105SC030500YK20F
Diameter: 5mm
Shank Diameter: 5mm
Flute Length: 26mm
Overall Length: 62mm

1-2 days
subject to

availability

5MM 3XD SC SERIES CARBIDE DRILL

List Price: £10.18
SKU: 1105SC030510YK20F
Diameter: 5.1mm
Shank Diameter: 5.1mm
Flute Length: 26mm
Overall Length: 62mm

1-2 days
subject to

availability

SC-Drill Ø 5.10; l=3xD ; Shaft HA; uncoated

List Price: £11.42
SKU: 1105SC030520YK20F
Diameter: 5.2mm
Shank Diameter: 5.2mm
Flute Length: 26mm
Overall Length: 62mm

1-2 days
subject to

availability

SC-Drill Ø 5.20; l=3xD ; Shaft HA; uncoated

List Price: £11.42
SKU: 1105SC030530YK20F
Diameter: 5.3mm
Shank Diameter: 5.3mm
Flute Length: 26mm
Overall Length: 62mm

1-2 days
subject to

availability

SC-Drill Ø 5.30; l=3xD ; Shaft HA; uncoated

List Price: £11.42
SKU: 1105SC030540YK20F
Diameter: 5.4mm
Shank Diameter: 5.4mm
Flute Length: 28mm
Overall Length: 66mm

1-2 days
subject to

availability

SC-Drill Ø 5.40; l=3xD ; Shaft HA; uncoated

List Price: £15.49
SKU: 1105SC030550YK20F
Diameter: 5.5mm
Shank Diameter: 5.5mm
Flute Length: 28mm
Overall Length: 66mm

1-2 days
subject to

availability

SC-Drill Ø 5.50; l=3xD ; Shaft HA; uncoated

List Price: £15.49
SKU: 1105SC030560YK20F
Diameter: 5.6mm
Shank Diameter: 5.6mm
Flute Length: 28mm
Overall Length: 66mm

1-2 days
subject to

availability

SC-Drill Ø 5.60; l=3xD ; Shaft HA; uncoated

List Price: £15.49
SKU: 1105SC030570YK20F
Diameter: 5.7mm
Shank Diameter: 5.7mm
Flute Length: 28mm
Overall Length: 66mm

1-2 days
subject to

availability

SC-Drill Ø 5.70; l=3xD ; Shaft HA; uncoated

List Price: £15.49
SKU: 1105SC030580YK20F
Diameter: 5.8mm
Shank Diameter: 5.8mm
Flute Length: 28mm
Overall Length: 66mm

1-2 days
subject to

availability

SC-Drill Ø 5.80; l=3xD ; Shaft HA; uncoated

List Price: £15.49
SKU: 1105SC030600YK20F
Diameter: 6mm
Shank Diameter: 6mm
Flute Length: 28mm
Overall Length: 66mm

1-2 days
subject to

availability

SC-Drill Ø 6.00; l=3xD ; Shaft HA; uncoated

List Price: £15.49
SKU: 1105SC030610YK20F
Diameter: 6.1mm
Shank Diameter: 6.1mm
Flute Length: 31mm
Overall Length: 70mm

1-2 days
subject to

availability

SC-Drill Ø 6.10; l=3xD ; Shaft HA; uncoated

List Price: £15.71
SKU: 1105SC030620YK20F
Diameter: 6.2mm
Shank Diameter: 6.2mm
Flute Length: 31mm
Overall Length: 70mm

1-2 days
subject to

availability

6.2MM 3XD SC SERIES CARBIDE DRILL

List Price: £15.71
SKU: 1105SC030630YK20F
Diameter: 6.3mm
Shank Diameter: 6.3mm
Flute Length: 31mm
Overall Length: 70mm

1-2 days
subject to

availability

SC-Drill Ø 6.30; l=3xD ; Shaft HA; uncoated

List Price: £15.71
SKU: 1105SC030640YK20F
Diameter: 6.4mm
Shank Diameter: 6.4mm
Flute Length: 31mm
Overall Length: 70mm

1-2 days
subject to

availability

6.4mm 3XD SC SERIES CARBIDE DRILL

List Price: £15.71
SKU: 1105SC030650YK20F
Diameter: 6.5mm
Shank Diameter: 6.5mm
Flute Length: 31mm
Overall Length: 70mm

1-2 days
subject to

availability

SC-Drill Ø 6.50; l=3xD ; Shaft HA; uncoated

List Price: £22.49
SKU: 1105SC030660YK20F
Diameter: 6.6mm
Shank Diameter: 6.6mm
Flute Length: 31mm
Overall Length: 70mm

1-2 days
subject to

availability

SC-Drill Ø 6.60; l=3xD ; Shaft HA; uncoated

List Price: £22.49
SKU: 1105SC030670YK20F
Diameter: 6.7mm
Shank Diameter: 6.7mm
Flute Length: 31mm
Overall Length: 70mm

1-2 days
subject to

availability

SC-Drill Ø 6.70; l=3xD ; Shaft HA; uncoated

List Price: £22.49
SKU: 1105SC030680YK20F
Diameter: 6.8mm
Shank Diameter: 6.8mm
Flute Length: 34mm
Overall Length: 74mm

1-2 days
subject to

availability

6.8MM 3XD SC SERIES CARBIDE DRILL

List Price: £23.04
SKU: 1105SC030700YK20F
Diameter: 7mm
Shank Diameter: 7mm
Flute Length: 34mm
Overall Length: 74mm

1-2 days
subject to

availability

SC-Drill Ø 7.00; l=3xD ; Shaft HA; uncoated

List Price: £23.04
SKU: 1105SC030710YK20F
Diameter: 7.1mm
Shank Diameter: 7.1mm
Flute Length: 34mm
Overall Length: 74mm

1-2 days
subject to

availability

SC-Drill Ø 7.10; l=3xD ; Shaft HA; uncoated

List Price: £25.67
SKU: 1105SC030720YK20F
Diameter: 7.2mm
Shank Diameter: 7.2mm
Flute Length: 34mm
Overall Length: 74mm

1-2 days
subject to

availability

SC-Drill Ø 7.20; l=3xD ; Shaft HA; uncoated

List Price: £25.67
SKU: 1105SC030740YK20F
Diameter: 7.4mm
Shank Diameter: 7.4mm
Flute Length: 34mm
Overall Length: 74mm

1-2 days
subject to

availability

SC-Drill Ø 7.40; l=3xD ; Shaft HA; uncoated

List Price: £25.67
SKU: 1105SC030750YK20F
Diameter: 7.5mm
Shank Diameter: 7.5mm
Flute Length: 34mm
Overall Length: 74mm

1-2 days
subject to

availability

7.5MM 3XD SC SERIES CARBIDE DRILL

List Price: £25.67
SKU: 1105SC030780YK20F
Diameter: 7.8mm
Shank Diameter: 7.8mm
Flute Length: 37mm
Overall Length: 79mm

1-2 days
subject to

availability

SC-Drill Ø 7.80; l=3xD ; Shaft HA; uncoated

List Price: £26.44
SKU: 1105SC030790YK20F
Diameter: 7.9mm
Shank Diameter: 7.9mm
Flute Length: 37mm
Overall Length: 79mm

1-2 days
subject to

availability

SC-Drill Ø 7.90; l=3xD ; Shaft HA; uncoated

List Price: £26.44
SKU: 1105SC030800YK20F
Diameter: 8mm
Shank Diameter: 8mm
Flute Length: 37mm
Overall Length: 79mm

1-2 days
subject to

availability

SC-Drill Ø 8.00; l=3xD ; Shaft HA; uncoated

List Price: £26.44
SKU: 1105SC030810YK20F
Diameter: 8.1mm
Shank Diameter: 8.1mm
Flute Length: 37mm
Overall Length: 79mm

1-2 days
subject to

availability

SC-Drill Ø 8.10; l=3xD ; Shaft HA; uncoated

List Price: £29.29
SKU: 1105SC030820YK20F
Diameter: 8.2mm
Shank Diameter: 8.2mm
Flute Length: 37mm
Overall Length: 79mm

1-2 days
subject to

availability

SC-Drill Ø 8.20; l=3xD ; Shaft HA; uncoated

List Price: £29.29
SKU: 1105SC030840YK20F
Diameter: 8.4mm
Shank Diameter: 8.4mm
Flute Length: 37mm
Overall Length: 79mm

1-2 days
subject to

availability

SC-Drill Ø 8.40; l=3xD ; Shaft HA; uncoated

List Price: £29.29
SKU: 1105SC030850YK20F
Diameter: 8.5mm
Shank Diameter: 8.5mm
Flute Length: 37mm
Overall Length: 79mm

1-2 days
subject to

availability

SC-Drill Ø 8.50; l=3xD ; Shaft HA; uncoated

List Price: £29.29
SKU: 1105SC030860YK20F
Diameter: 8.6mm
Shank Diameter: 8.6mm
Flute Length: 40mm
Overall Length: 84mm

1-2 days
subject to

availability

SC-Drill Ø 8.60; l=3xD ; Shaft HA; uncoated

List Price: £30.20
SKU: 1105SC030870YK20F
Diameter: 8.7mm
Shank Diameter: 8.7mm
Flute Length: 40mm
Overall Length: 84mm

1-2 days
subject to

availability

SC-Drill Ø 8.70; l=3xD ; Shaft HA; uncoated

List Price: £30.20
SKU: 1105SC030880YK20F
Diameter: 8.8mm
Shank Diameter: 8.8mm
Flute Length: 40mm
Overall Length: 84mm


subject to

availability

SC-Drill Ø 8.80; l=3xD ; Shaft HA; uncoated

List Price: £30.20
SKU: 1105SC030900YK20F
Diameter: 9mm
Shank Diameter: 9mm
Flute Length: 40mm
Overall Length: 84mm

1-2 days
subject to

availability

SC-Drill Ø 9.00; l=3xD ; Shaft HA; uncoated

List Price: £30.20
SKU: 1105SC030910YK20F
Diameter: 9.1mm
Shank Diameter: 9.1mm
Flute Length: 40mm
Overall Length: 84mm

1-2 days
subject to

availability

SC-Drill Ø 9.10; l=3xD ; Shaft HA; uncoated

List Price: £33.33
SKU: 1105SC030920YK20F
Diameter: 9.2mm
Shank Diameter: 9.2mm
Flute Length: 40mm
Overall Length: 84mm

1-2 days
subject to

availability

SC-Drill Ø 9.20; l=3xD ; Shaft HA; uncoated

List Price: £33.33
SKU: 1105SC030930YK20F
Diameter: 9.3mm
Shank Diameter: 9.3mm
Flute Length: 40mm
Overall Length: 84mm

1-2 days
subject to

availability

SC-Drill Ø 9.30; l=3xD ; Shaft HA; uncoated

List Price: £33.33
SKU: 1105SC030950YK20F
Diameter: 9.5mm
Shank Diameter: 9.5mm
Flute Length: 40mm
Overall Length: 84mm

1-2 days
subject to

availability

SC-Drill Ø 9.50; l=3xD ; Shaft HA; uncoated

List Price: £33.33
SKU: 1105SC030970YK20F
Diameter: 9.7mm
Shank Diameter: 9.7mm
Flute Length: 43mm
Overall Length: 89mm


subject to

availability

SC-Drill Ø 9.70; l=3xD ; Shaft HA; uncoated

List Price: £34.47
SKU: 1105SC030980YK20F
Diameter: 9.8mm
Shank Diameter: 9.8mm
Flute Length: 43mm
Overall Length: 89mm

1-2 days
subject to

availability

SC-Drill Ø 9.80; l=3xD ; Shaft HA; uncoated

List Price: £34.47
SKU: 1105SC030990YK20F
Diameter: 9.9mm
Shank Diameter: 9.9mm
Flute Length: 43mm
Overall Length: 89mm

1-2 days
subject to

availability

SC-Drill Ø 9.90; l=3xD ; Shaft HA; uncoated

List Price: £34.47
SKU: 1105SC031000YK20F
Diameter: 10mm
Shank Diameter: 10mm
Flute Length: 43mm
Overall Length: 89mm

1-2 days
subject to

availability

SC-Drill Ø 10.00; l=3xD ; Shaft HA; uncoated

List Price: £34.47
SKU: 1105SC031010YK20F
Diameter: 10.1mm
Shank Diameter: 10.1mm
Flute Length: 43mm
Overall Length: 89mm

1-2 days
subject to

availability

SC-Drill Ø 10.10; l=3xD ; Shaft HA; uncoated

List Price: £40.02
SKU: 1105SC031020YK20F
Diameter: 10.2mm
Shank Diameter: 10.2mm
Flute Length: 43mm
Overall Length: 89mm

1-2 days
subject to

availability

SC-Drill Ø 10.20; l=3xD ; Shaft HA; uncoated

List Price: £40.02
SKU: 1105SC031040YK20F
Diameter: 10.4mm
Shank Diameter: 10.4mm
Flute Length: 43mm
Overall Length: 89mm

1-2 days
subject to

availability

SC-Drill Ø 10.40; l=3xD ; Shaft HA; uncoated

List Price: £40.02
SKU: 1105SC031050YK20F
Diameter: 10.5mm
Shank Diameter: 10.5mm
Flute Length: 43mm
Overall Length: 89mm

1-2 days
subject to

availability

SC-Drill Ø 10.50; l=3xD ; Shaft HA; uncoated

List Price: £40.02
SKU: 1105SC031070YK20F
Diameter: 10.7mm
Shank Diameter: 10.7mm
Flute Length: 47mm
Overall Length: 95mm


subject to

availability

SC-Drill Ø 10.70; l=3xD ; Shaft HA; uncoated

List Price: £41.96
SKU: 1105SC031080YK20F
Diameter: 10.8mm
Shank Diameter: 10.8mm
Flute Length: 47mm
Overall Length: 95mm

1-2 days
subject to

availability


subject to

availability

SC-Drill Ø 10.80; l=3xD ; Shaft HA; uncoated

List Price: £41.96
SKU: 1105SC031100YK20F
Diameter: 11mm
Shank Diameter: 11mm
Flute Length: 47mm
Overall Length: 95mm

1-2 days
subject to

availability

SC-Drill Ø 11.00; l=3xD ; Shaft HA; uncoated

List Price: £41.96
SKU: 1105SC031150YK20F
Diameter: 11.5mm
Shank Diameter: 11.5mm
Flute Length: 47mm
Overall Length: 95mm

1-2 days
subject to

availability

SC-Drill Ø 11.50; l=3xD ; Shaft HA; uncoated

List Price: £49.98
SKU: 1105SC031200YK20F
Diameter: 12mm
Shank Diameter: 12mm
Flute Length: 51mm
Overall Length: 102mm

1-2 days
subject to

availability

SC-Drill Ø 12.00; l=3xD ; Shaft HA; uncoated

List Price: £49.98
SKU: 1105SC031210YK20F

1-2 days
subject to

availability

SC-Drill Ø 12.10; l=3xD ; Shaft HA; uncoated

List Price: £60.53
SKU: 1105SC031250YK20F
Diameter: 12.5mm
Shank Diameter: 12.5mm
Flute Length: 51mm
Overall Length: 102mm

1-2 days
subject to

availability

SC-Drill Ø 12.50; l=3xD ; Shaft HA; uncoated

List Price: £60.60
SKU: 1105SC031300YK20F
Diameter: 13mm
Shank Diameter: 13mm
Flute Length: 51mm
Overall Length: 102mm

1-2 days
subject to

availability

SC-Drill Ø 13.00; l=3xD ; Shaft HA; uncoated

List Price: £60.60
SKU: 1105SC031400YK20F
Diameter: 14mm
Shank Diameter: 14mm
Flute Length: 54mm
Overall Length: 107mm

1-2 days
subject to

availability

SC-Drill Ø 14.00; l=3xD ; Shaft HA; uncoated

List Price: £69.53
SKU: 1105SC031450YK20F
Diameter: 14.5mm
Shank Diameter: 14.5mm
Flute Length: 56mm
Overall Length: 111mm


subject to

availability

SC-Drill Ø 14.50; l=3xD ; Shaft HA; uncoated

List Price: £76.56
SKU: 1105SC031500YK20F
Diameter: 15mm
Shank Diameter: 15mm
Flute Length: 56mm
Overall Length: 111mm

1-2 days
subject to

availability

SC-Drill Ø 15.00; l=3xD ; Shaft HA; uncoated

List Price: £85.36
SKU: 1105SC031600YK20F
Diameter: 16mm
Shank Diameter: 16mm
Flute Length: 58mm
Overall Length: 115mm

1-2 days
subject to

availability

SC-Drill Ø 16.00; l=3xD ; Shaft HA; uncoated

List Price: £96.56
