Emuge Franken UNC Drill Thread Mill 2xD
Series: ZBGF-MULTI-UNC£187.05 excl. VAT
£224.46 incl. VAT

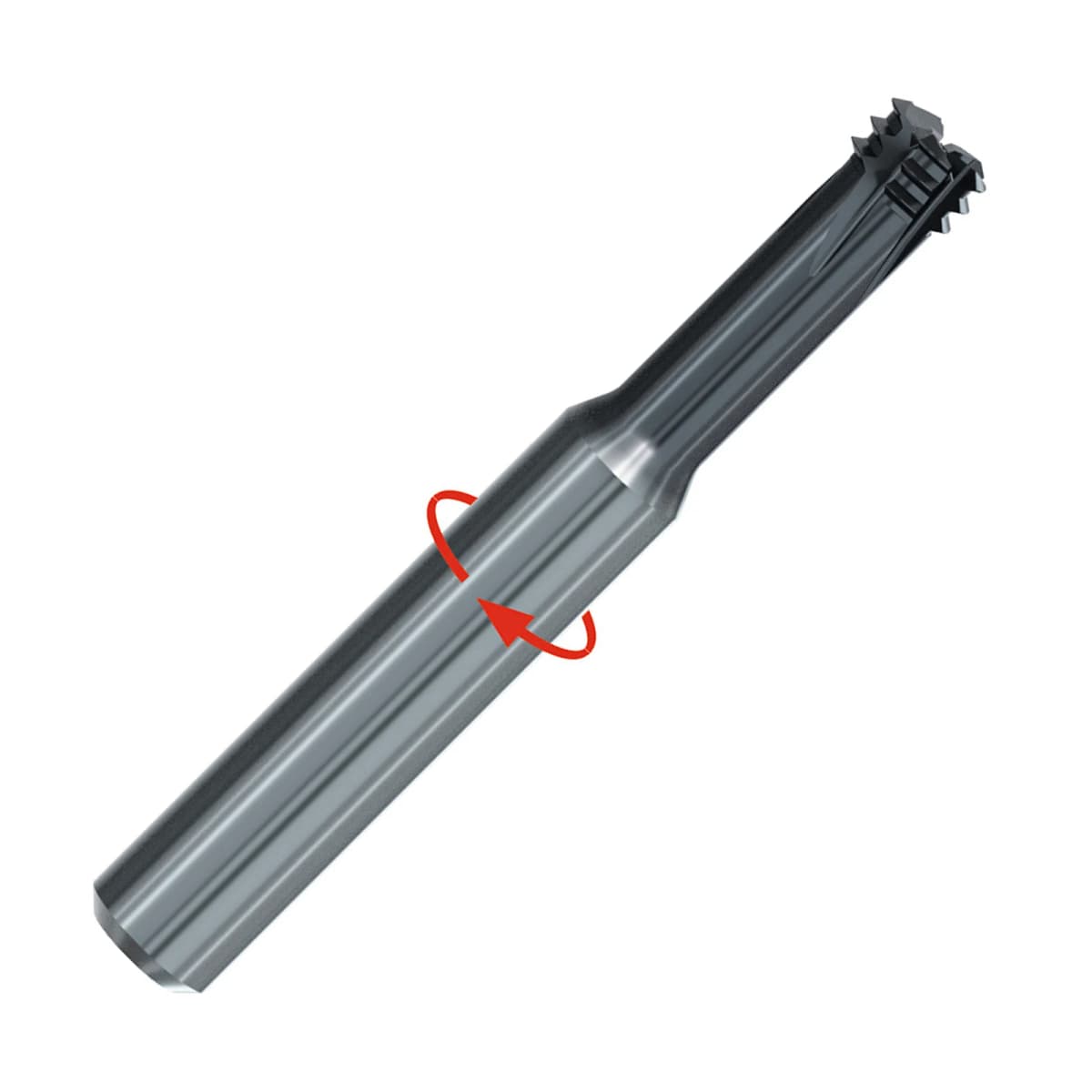

Emuge Franken solid carbide circular drill thread mill
- Drill, thread mill and chamfer with 1 tool
- Speed up cycle times and reduce tooling cost with 1 tool
- Suitable for steel, stainless steel, cast iron, heat resistant super alloys and non-ferrous materials
- No pre-drilled taphole necessary
- 2xD
- Through coolant holes above M5
- UNC thread
- ALCR 89 coating
- Left hand rotation
- For use with CNC machines
Have a query?
Speak to one of our advisers today for expert advise.
Description | Diameter / d1 | Pitch / P | Functional Diameter / dF | Flute Length / l2 | Thread Depth / l3 | Shank Diameter / d2 | Overall Length / l3 | No of Flutes / Z | Price |
|---|---|---|---|---|---|---|---|---|---|
| GF7B622A.5009 | 1/4" | 20 | 4.47mm | 3.81mm | 14.6mm | 6mm | 55mm | 3 | |
| GF7B622A.5010 | 5/16" | 18 | 5.89mm | 4.233mm | 18mm | 8mm | 58mm | 4 | |
| GF7B622A.5011 | 3/8" | 16 | 7.21mm | 4.763mm | 21.4mm | 8mm | 62mm | 4 | |
| GF7B622A.5012 | 7/16" | 14 | 8.49mm | 5.442mm | 25mm | 10mm | 70mm | 4 | |
| GF7B622A.5013 | 1/2" | 13 | 9.82mm | 5.682mm | 28.3mm | 12mm | 80mm | 4 |
Product Information
Emuge Franken solid carbide circular drill thread mill
- Drill, thread mill and chamfer with 1 tool
- Speed up cycle times and reduce tooling cost with 1 tool
- Suitable for steel, stainless steel, cast iron, heat resistant super alloys and non-ferrous materials
- No pre-drilled taphole necessary
- 2xD
- Through coolant holes above M5
- UNC thread
- ALCR 89 coating
- Left hand rotation
- For use with CNC machines
Specifications
| Brand: | Emuge-Franken |
| Thread Form: | UNC - Unified Coarse |
| Category: | Threading |
| Threading: | Thread Mills |
| Application: | Steel |
| Application: | Stainless Steel |
| Application: | Cast Iron |
| Application: | Aluminium & Non-Ferrous |
| Application: | Heat-Resistant Super Alloys |
