Emuge Franken Metric Drill Thread Mill 2xD
Series: ZBGF-MULTI-M...10% DISCOUNTStarting From:
£183.07 excl. VAT
£219.68 incl. VAT
£183.07 excl. VAT
£219.68 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

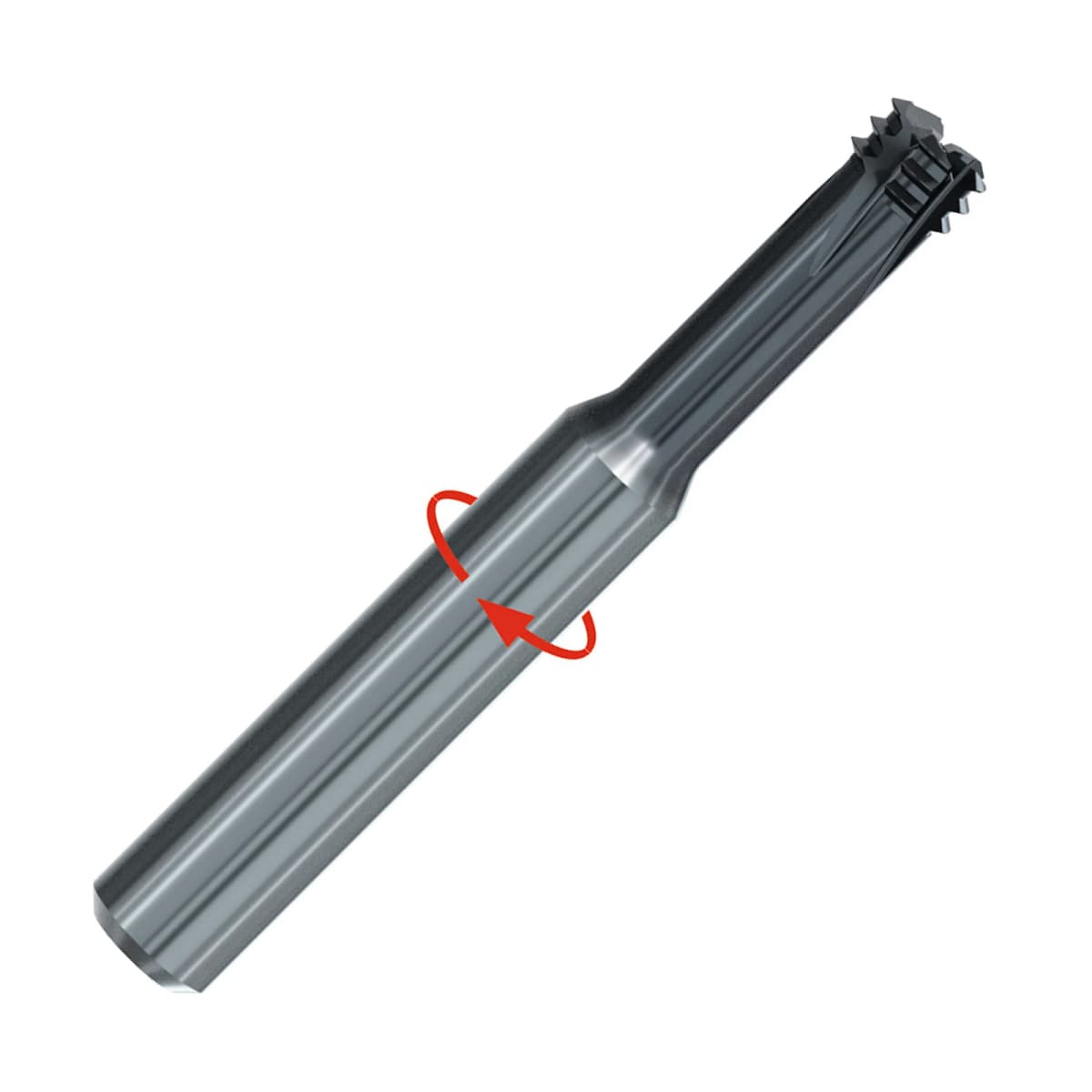

Emuge Franken solid carbide circular drill thread mill
- Drill, thread mill and chamfer with 1 tool
- Speed up cycle times and reduce tooling cost with 1 tool
- Suitable for steel, stainless steel, cast iron, heat resistant super alloys and non-ferrous materials
- No pre-drilled taphole necessary
- 2xD
- Through coolant holes above M5
- Metric thread
- ALCR 89 coating
- Left hand rotation
- For use with CNC machines
...read more
| SKU | Diameter | Pitch | Functional Diameter | Flute Length | Thread Depth | Shank Diameter | Overall Length | No of Flutes | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|---|---|
| GF7B682A.0030 | M3 | 0.5mm | 2.25mm | 1.5mm | 6.8mm | 3mm | 39mm | 4 | £190.53 |
| GF7B682A.0040 | M4 | 0.7mm | 2.95mm | 2.1mm | 9.1mm | 4mm | 42mm | 4 | £190.53 |
| GF7B622A.0050 | M5 | 0.8mm | 3.8mm | 2.4mm | 11.2mm | 6mm | 52mm | 4 | £183.07 |
| GF7B622A.0060 | M6 | 1mm | 4.5mm | 3mm | 13.5mm | 6mm | 55mm | 4 | £183.07 |
| GF7B622A.0080 | M8 | 1.25mm | 6.13mm | 3.75mm | 17.9mm | 8mm | 60mm | 4 | £201.29 |
| GF7B622A.0100 | M10 | 1.5mm | 7.75mm | 4.5mm | 22.3mm | 10mm | 70mm | 4 | £218.23 |
| GF7B622A.0112 | M12 | 1.75mm | 9.38mm | 5.25mm | 26.6mm | 10mm | 74mm | 5 | £218.23 |
