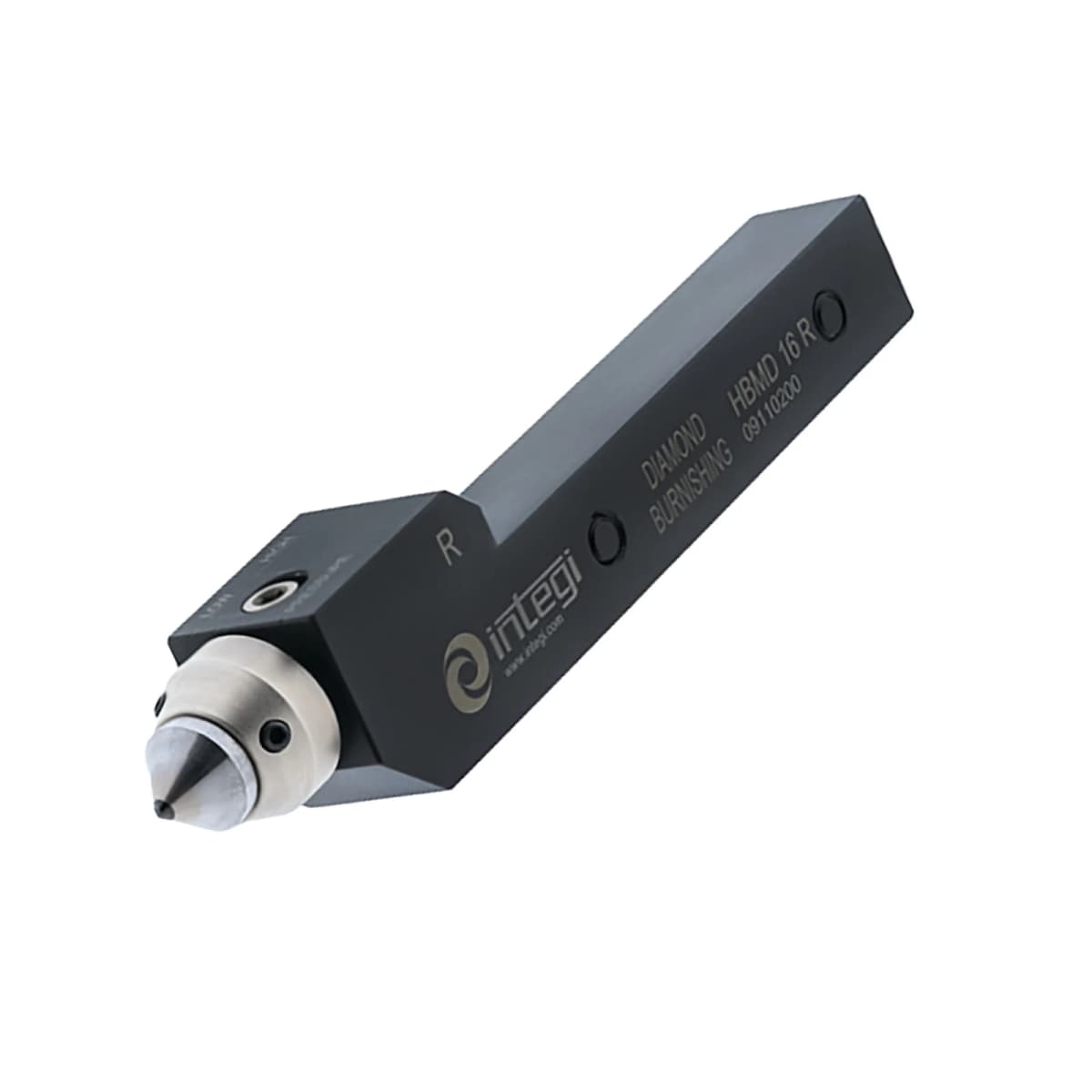

Image of a straight diamond tip burnishing tool holder, aligned with the top face from Integi, series HBMD.
Diagram of a straight diamond tip burnishing tool holder, aligned with the top face from Integi, series HBMD.
Image showing the different profiles that can be performed by the straight diamond tip burnishing tool holder, aligned with the top face fro
Image of fig.1 that is referenced in the description.

Straight Diamond Tip Burnishing Tool Holder, Aligned with the Top Face (INTEGI)

Series: HBMD
Starting From:
£460.00 excl. VAT
£552.00 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
  • Tool designed for burnishing on lathes, on various profiles
  • Diamond tip aligned with the top face of the shank
  • The head is equipped with an internal spring system to regulate the pressure of the diamond tip, making it homogeneous on all parts (Fig.1)
  • Can be used on workpieces made of different types of materials with hardness up to 63 HRC
  • Possibility of placing the diamond tip in different positions to extend the life of the tool
  • Diamond tip not included with the tool holder
...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUReferenceVersionDiamondCDEKgPrice (Ex VAT)
09110100HBMD 12 RRDT121212210.3Kg£460.00
09110101HBMD 12 LLDT121212210.3Kg£460.00
09110200HBMD 16 RRDT121616250.4Kg£460.00
09110201HBMD 16 LLDT121616250.4Kg£460.00
09110300HBMD 20R+LDT122020290.5Kg£460.00
