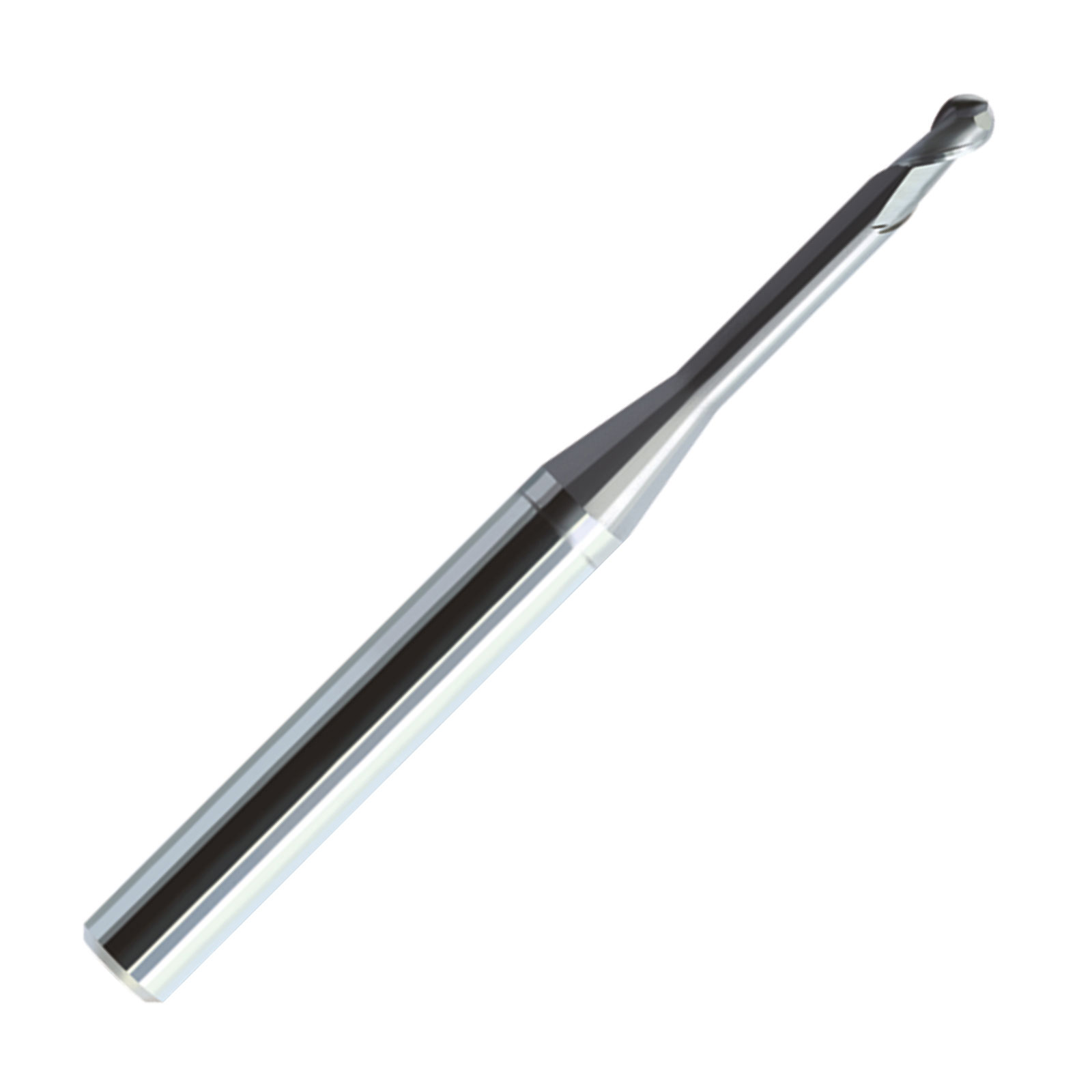

ZCC-CT NM-2BP 2 Flute CrN Coated Aluminium Ball Nose Rib Processing Micro End Mill.
ZCC-CT NM-2BP 2 Flute CrN Coated Aluminium Ball Nose Rib Processing Micro End Mill.

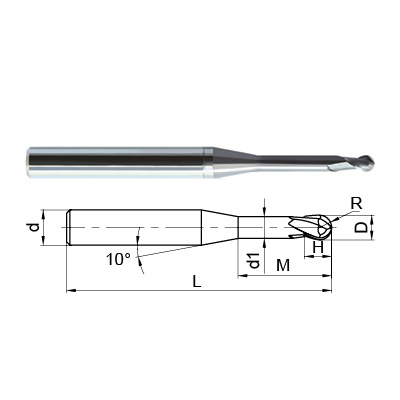

ZCC-CT NM-2BP 2 Flute CrN Coated Aluminium Ball Nose Rib Processing Micro End Mill Technical Drawings.

ZCC-CT NM-2BP 2 Flute CrN Coated Aluminium Ball Nose Rib Processing Micro End Mill

Series: NM-2BP

15% Off!

ZCC-CT NM-2BP 2 Flute CrN Coated Aluminium Ball Nose Rib Processing Micro End Mill

Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: NM2BPR025M04KMG309
Diameter: 0.5mm
Radius: 0.25mm
Shank Diameter: 4mm
Cutting Length: 0.7mm
Length Below Shank: 4mm
Overall Length: 50mm
Neck Dia: 0.45mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM END MILL

List Price: £22.36
SKU: NM2BPR025M06KMG309
Diameter: 0.5mm
Radius: 0.25mm
Shank Diameter: 4mm
Cutting Length: 0.7mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 0.45mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.25; Z=2; Shaft HA; coated

List Price: £22.36
SKU: NM2BPR03M04KMG309
Diameter: 0.6mm
Radius: 0.3mm
Shank Diameter: 4mm
Cutting Length: 0.9mm
Length Below Shank: 4mm
Overall Length: 50mm
Neck Dia: 0.55mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.3; Z=2; Shaft HA; coated

List Price: £22.36
SKU: NM2BPR03M06KMG309
Diameter: 0.6mm
Radius: 0.3mm
Shank Diameter: 4mm
Cutting Length: 0.9mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 0.55mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.3; Z=2; Shaft HA; coated

List Price: £22.36
SKU: NM2BPR03M08KMG309
Diameter: 0.6mm
Radius: 0.3mm
Shank Diameter: 4mm
Cutting Length: 0.9mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 0.55mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.3; Z=2; Shaft HA; coated

List Price: £22.36
SKU: NM2BPR04M04KMG309
Diameter: 0.8mm
Radius: 0.4mm
Shank Diameter: 4mm
Cutting Length: 1.2mm
Length Below Shank: 4mm
Overall Length: 50mm
Neck Dia: 0.75mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALU BALL NOSE END MILL

List Price: £22.36
SKU: NM2BPR04M06KMG309
Diameter: 0.8mm
Radius: 0.4mm
Shank Diameter: 4mm
Cutting Length: 1.2mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 0.75mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.4; Z=2; Shaft HA; coated

List Price: £22.36
SKU: NM2BPR04M08KMG309
Diameter: 0.8mm
Radius: 0.4mm
Shank Diameter: 4mm
Cutting Length: 1.2mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 0.75mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALU BALL NOSE END MILL

List Price: £22.36
SKU: NM2BPR04M10KMG309
Diameter: 0.8mm
Radius: 0.4mm
Shank Diameter: 4mm
Cutting Length: 1.2mm
Length Below Shank: 10mm
Overall Length: 50mm
Neck Dia: 0.75mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.4; Z=2; Shaft HA; coated

List Price: £22.36
SKU: NM2BPR05M04KMG309
Diameter: 1mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 1.5mm
Length Below Shank: 4mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.5; Z=2; Shaft HA; coated

List Price: £21.69
SKU: NM2BPR05M06KMG309
Diameter: 1mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 1.5mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 0.95mm
In Stock

Pencil Neck Ball Nose End Mill R=0.5; Z=2; Shaft HA; coated

List Price: £21.69
SKU: NM2BPR05M08KMG309
Diameter: 1mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 1.5mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.5; Z=2; Shaft HA; coated

List Price: £21.69
SKU: NM2BPR05M10KMG309
Diameter: 1mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 1.5mm
Length Below Shank: 10mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM END MILL

List Price: £21.69
SKU: NM2BPR05M12KMG309
Diameter: 1mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 1.5mm
Length Below Shank: 12mm
Overall Length: 50mm
Neck Dia: 0.95mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM END MILL

List Price: £21.69
SKU: NM2BPR075M08KMG309
Diameter: 1.5mm
Radius: 0.75mm
Shank Diameter: 4mm
Cutting Length: 2.3mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 1.45mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=0.75; Z=2; Shaft HA; coated

List Price: £21.69
SKU: NM2BPR075M16KMG309
Diameter: 1.5mm
Radius: 0.75mm
Shank Diameter: 4mm
Cutting Length: 2.3mm
Length Below Shank: 16mm
Overall Length: 50mm
Neck Dia: 1.45mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM BALL NOSE

List Price: £21.69
SKU: NM2BPR10M06KMG309
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 6mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=1.0; Z=2; Shaft HA; coated

List Price: £21.69
SKU: NM2BPR10M08KMG309
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 8mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=1.0; Z=2; Shaft HA; coated

List Price: £21.69
SKU: NM2BPR10M10KMG309
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 10mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=1.0; Z=2; Shaft HA; coated

List Price: £21.69
SKU: NM2BPR10M12KMG309
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 12mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM BALL NOSE END MILL

List Price: £21.69
SKU: NM2BPR10M16KMG309
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 16mm
Overall Length: 50mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM BALL NOSE

List Price: £21.69
SKU: NM2BPR10M20KMG309
Diameter: 2mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Length Below Shank: 20mm
Overall Length: 60mm
Neck Dia: 1.95mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM BALL NOSE END MILL

List Price: £22.08
SKU: NM2BPR15M10KMG309
Diameter: 3mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 4.5mm
Length Below Shank: 10mm
Overall Length: 50mm
Neck Dia: 2.85mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=1.5; Z=2; Shaft HA; coated

List Price: £23.80
SKU: NM2BPR15M20KMG309
Diameter: 3mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 4.5mm
Length Below Shank: 20mm
Overall Length: 60mm
Neck Dia: 2.85mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM BALL NOSE END MILL

List Price: £24.18
SKU: NM2BPR20M10KMG309
Diameter: 4mm
Radius: 2mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 10mm
Overall Length: 60mm
Neck Dia: 3.85mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=2.0; Z=2; Shaft HA; coated

List Price: £24.18
SKU: NM2BPR20M16KMG309
Diameter: 4mm
Radius: 2mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 16mm
Overall Length: 60mm
Neck Dia: 3.85mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=2.0; Z=2; Shaft HA; coated

List Price: £24.18
SKU: NM2BPR20M20KMG309
Diameter: 4mm
Radius: 2mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 20mm
Overall Length: 60mm
Neck Dia: 3.85mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM BALL NOSE END MILL

List Price: £24.18
SKU: NM2BPR20M25KMG309
Diameter: 4mm
Radius: 2mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 25mm
Overall Length: 60mm
Neck Dia: 3.85mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM BALL NOSE END MILL

List Price: £24.18
SKU: NM2BPR25M16KMG309
Diameter: 5mm
Radius: 2.5mm
Shank Diameter: 6mm
Cutting Length: 7.5mm
Length Below Shank: 16mm
Overall Length: 60mm
Neck Dia: 4.85mm

1-2 days
subject to

availability


subject to

availability

Pencil Neck Ball Nose End Mill R=2.5; Z=2; Shaft HA; coated

List Price: £24.18
SKU: NM2BPR25M25KMG309
Diameter: 5mm
Radius: 2.5mm
Shank Diameter: 6mm
Cutting Length: 7.5mm
Length Below Shank: 25mm
Overall Length: 70mm
Neck Dia: 4.85mm

1-2 days
subject to

availability


subject to

availability

2 FLUTE CrN COATED ALUMINIUM BALL NOSE END MILL

List Price: £24.75
