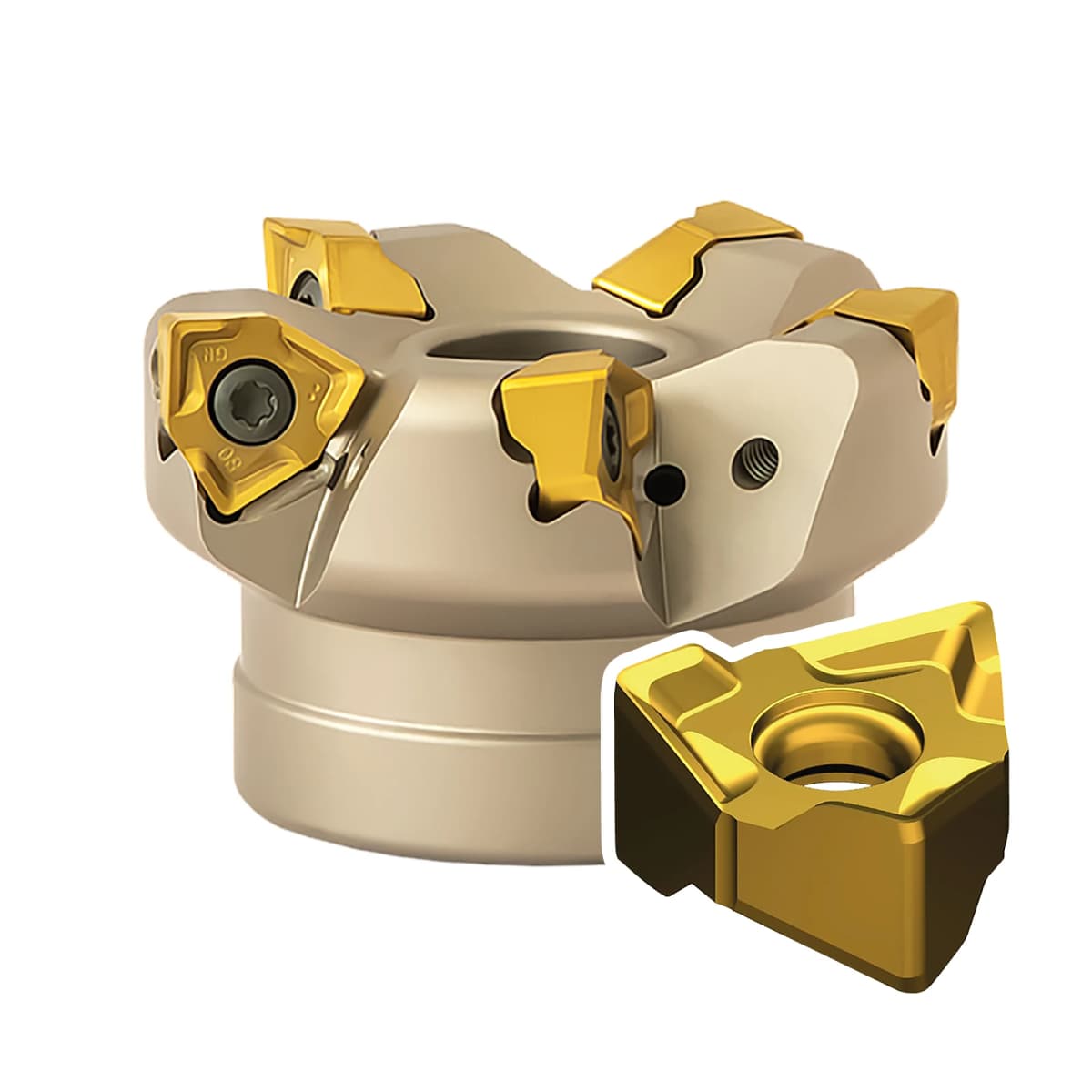

True 90 Degree Face Mill Indexable Milling Set Supplied With WNEX 6 Edged Inserts (Europa)
Series: M690F-KITStarting From:
£209.00 excl. VAT
£250.80 incl. VAT
£209.00 excl. VAT
£250.80 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
True 90 Degree Face Mill Indexable Milling Set Supplied With WNEX 6 Edged Inserts (Europa)
• Supplied with ET612 grade inserts, excellent versatility across a range of materials
• Negative geometry with a positive cutting action
• Excellent swarf evacuation for cleaner cuts
• High positive rake angle
• 08 insert size with unique chip groove
• Precise pocket contact ensures a robust, stable and secure insert fit
• Optimised chipcurl and minimised burr
• Suitable for a wide range of applications
• Stronger milling bodies than standard tools
• Superior surface finish due to the wide wiper edge
• Low cutting force with smooth cutting action
• Double sided insert reducing cost per edge
...read more
| SKU | DIAMETER / DC | SPIGOT SIZE / DCON | OVERALL LENGTH / LF | TEETH / ZEFP | INSERTS / IR | SUPPLIED WITH / IN | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|
| M690F-50-4-ET612-KIT | 50 | 22 | 40 | 4 | WNEX08 | 30 Inserts | £209.00 |
| M690F-50-5-ET612-KIT | 50 | 22 | 40 | 5 | WNEX08 | 30 Inserts | £209.00 |
| M690F-63-ET612-KIT | 63 | 22 | 40 | 6 | WNEX08 | 40 Inserts | £305.51 |
| M690F-80-ET612-KIT | 80 | 27 | 50 | 7 | WNEX08 | 50 Inserts | £377.78 |
| M690F-100-ET612-KIT | 100 | 32 | 50 | 9 | WNEX08 | 60 Inserts | £415.00 |
| M690F-125-ET612-KIT | 125 | 40 | 63 | 11 | WNEX08 | 70 Insert | £485.00 |
