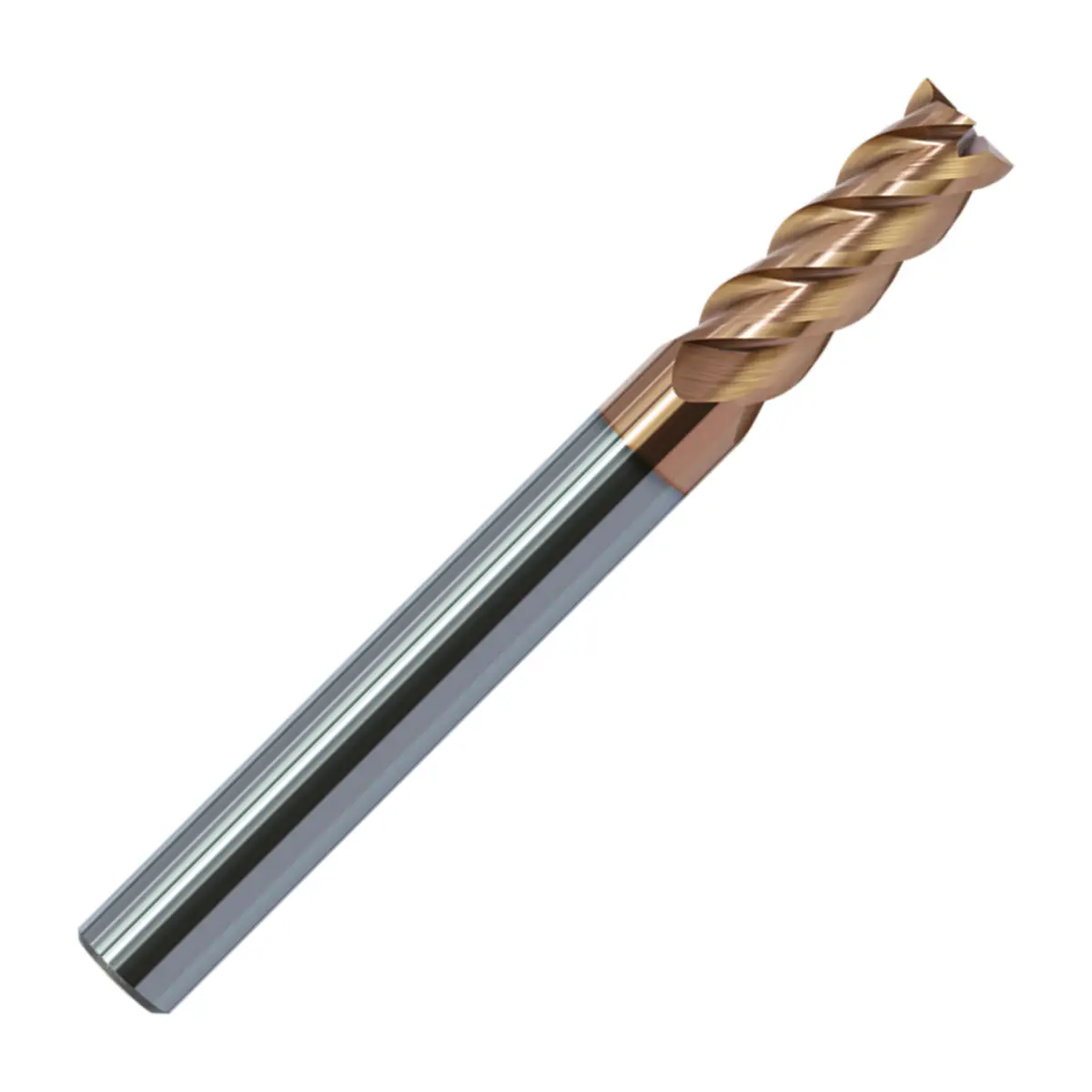

ZCC-CT 4 Flute Long Length End Mill.
ZCC-CT 4 Flute Long Length End Mill.
ZCC-CT HM-4EL Series 4 Flute Long Length End Mill for Hardened Steel Machining Technical Drawing.

ZCC-CT HM-4EL Series 4 Flute Long Length End Mill for Hardened Steel Machining

Series: HM-4EL
ZCC-CT 4 Flute Long Length End Mill For Machining Cast Iron and Nodular cast Iron, Quenched, Tempered and Hardened Steels up to 68 HRC. ZCC-CT are one of the leading carbide tools manufacturer worldwide. They supply a wide range of high quality cutting tools.
Description
D1
D2
L1
L2
Diameter
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: HM4ELD100KMG555
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 30mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

10MM 4 FLUTE END MILL WITH STRAIGHT SHANK/LONG CUTTING EDGE

List Price: £68.42
SKU: HM4ELD120KMG555
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 35mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

12MM 4 FLUTE END MILL WITH STRAIGHT SHANK/LONG CUTTING EDGE

List Price: £90.58
SKU: HM4ELD140KMG555
Diameter: 14mm
Shank Diameter: 14mm
Cutting Length: 40mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

Solid Carbide End Mill Ø 14.0; Z=4; Shaft HA; coated

List Price: £111.89
SKU: HM4ELD160KMG555
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 50mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

16MM 4 FLUTE END MILL WITH STRAIGHT SHANK/LONG CUTTING EDGE

List Price: £153.26
SKU: HM4ELD200KMG555
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 55mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

Solid Carbide End Mill Ø 20.0; Z=4; Shaft HA; coated

List Price: £273.83
SKU: HM4ELD30KMG555
Diameter: 3mm
Shank Diameter: 6mm
Cutting Length: 12mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

Solid Carbide End Mill Ø 3.0; Z=4; Shaft HA; coated

List Price: £23.13
SKU: HM4ELD40KMG555
Diameter: 4mm
Shank Diameter: 6mm
Cutting Length: 15mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

Solid Carbide End Mill Ø 4.0; Z=4; Shaft HA; coated

List Price: £23.13
SKU: HM4ELD50KMG555
Diameter: 5mm
Shank Diameter: 6mm
Cutting Length: 20mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

Solid Carbide End Mill Ø 5.0; Z=4; Shaft HA; coated

List Price: £23.13
SKU: HM4ELD60KMG555
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 20mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

6MM 4 FLUTE END MILL WITH STRAIGHT SHANK/LONG CUTTING EDGE

List Price: £23.13
SKU: HM4ELD80KMG555
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 25mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

8MM 4 FLUTE END MILL WITH STRAIGHT SHANK/LONG CUTTING EDGE

List Price: £45.57
