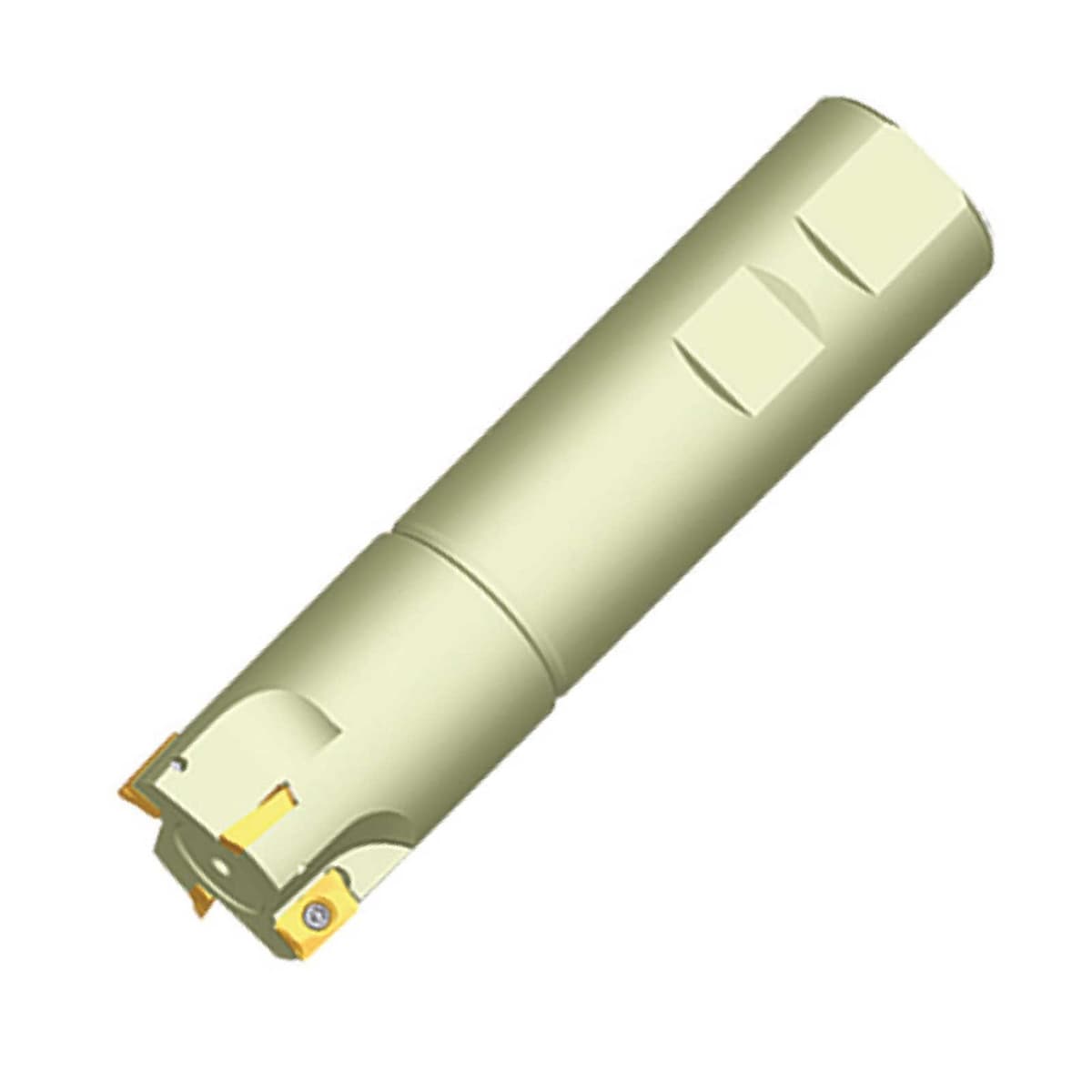

90° Indexable End Mill for Insert Style APKT - ZCC-CT
Series: EMP01-WELDON£49.82 excl. VAT
£59.78 incl. VAT
- Diameter range Ø12 – 63 mm
- For steel, stainless steel, cast iron, nonferrous metals and heatresistant alloys
- For square shoulder milling, slot milling and ramping
- Milling cutter with positive, soft cutting geometry
- Inserts with two cutting edges
- Weldon shank
Have a query?
Speak to one of our advisers today for expert advise.
Description | Shank Diameter / D2 | Diameter | Price |
|---|---|---|---|
| EMP01-020-XP20-AP07-05C | 20mm | 20mm | |
| EMP01-025-XP25-AP07-07C | 25mm | 25mm | |
| EMP01-012-XP16-AP11-01 | 16mm | 12mm | |
| EMP01-012-XP16-AP11-01C | 16mm | 12mm | |
| EMP01-016-XP16-AP11-02 | 16mm | 16mm | |
| EMP01-016-XP16-AP11-02C | 16mm | 16mm | |
| EMP01-020-XP20-AP11-02 | 20mm | 20mm | |
| EMP01-020-XP20-AP11-02C | 20mm | 20mm | |
| EMP01-020-XP20-AP11-03 | 20mm | 20mm | |
| EMP01-020-XP20-AP11-03C | 20mm | 20mm | |
| EMP01-025-XP25-AP11-03 | 25mm | 25mm | |
| EMP01-025-XP25-AP11-03C | 25mm | 25mm | |
| EMP01-025-XP25-AP11-04 | 25mm | 25mm | |
| EMP01-025-XP25-AP11-04C | 25mm | 25mm | |
| EMP01-032-XP32-AP11-04 | 32mm | 32mm | |
| EMP01-032-XP32-AP11-04C | 32mm | 32mm | |
| EMP01-025-XP25-AP16-02 | 25mm | 25mm | |
| EMP01-025-XP25-AP16-02C | 25mm | 25mm | |
| EMP01-032-XP32-AP16-03 | |||
| EMP01-032-XP32-AP16-03C | 32mm | 32mm | |
| EMP01-040-XP32-AP16-04 | |||
| EMP01-040-XP32-AP16-04C | 32mm | 40mm | |
| EMP01-050-XP32-AP16-05 | |||
| EMP01-063-XP32-AP16-06 | 32mm | 63mm |
Product Information
- Diameter range Ø12 – 63 mm
- For steel, stainless steel, cast iron, nonferrous metals and heatresistant alloys
- For square shoulder milling, slot milling and ramping
- Milling cutter with positive, soft cutting geometry
- Inserts with two cutting edges
- Weldon shank
Specifications
| Category: | Milling Tools |
| Category: | Indexable Milling |
| Indexable Milling: | Square Shoulder Milling |
| Brand: | ZCC-CT |
| Application: | Steel |
| Application: | Stainless Steel |
| Application: | Cast Iron |
| Application: | Aluminium & Non-Ferrous |
| Application: | Heat-Resistant Super Alloys |
| Insert Type: | APKT |
| Range: | EMP01 Weldon Series |
| Holder (Body) / Insert: | Holder (Body) |
| Approach Angle: | 90 Degrees |
| No of edges on insert: | 2 Edges |
Service & Delivery Information
What delivery options are available?
If the order is placed online, we offer free shipping to mainland UK on all orders over £25 ex VAT.
This offer excludes certain items due to weight restrictions. These items will be highlighted in the shopping cart.
Delivery to Ireland, Northern Ireland, Scottish Highlands etc may incur additional charges.
Please see our delivery information page for a full breakdown
Can I cancel or return the goods?
You are able to cancel or return the goods of items that we stock. Goods which are ordered in from supplies specifically for your order will be subject to a restocking fee.
Can I apply for a credit account?
We are able to offer businesses trade accounts subject to a soft credit check.
Please contact us if you would like to set up a trade account.
How do I track my order
Tracking details will be emailed for all orders sent tracked once the goods have been shipped. This will include a link to the relevant couriers website.
Alternatively, you can also contact us who can track the order for you.
I still have a query, how can I get in touch?
Please contact us if you have any questions regarding this product or any other product or service
You can contact us by:
- Phone: 01274 872822
- Email: sales@milotools.co.uk
- Online chat
Downloads
| emp01-weldon-technical-data.pdf |
| emp01-weldon-cutting-data.pdf |
