  1. Home Page
  2. Series: HBUD-P
Image of product.

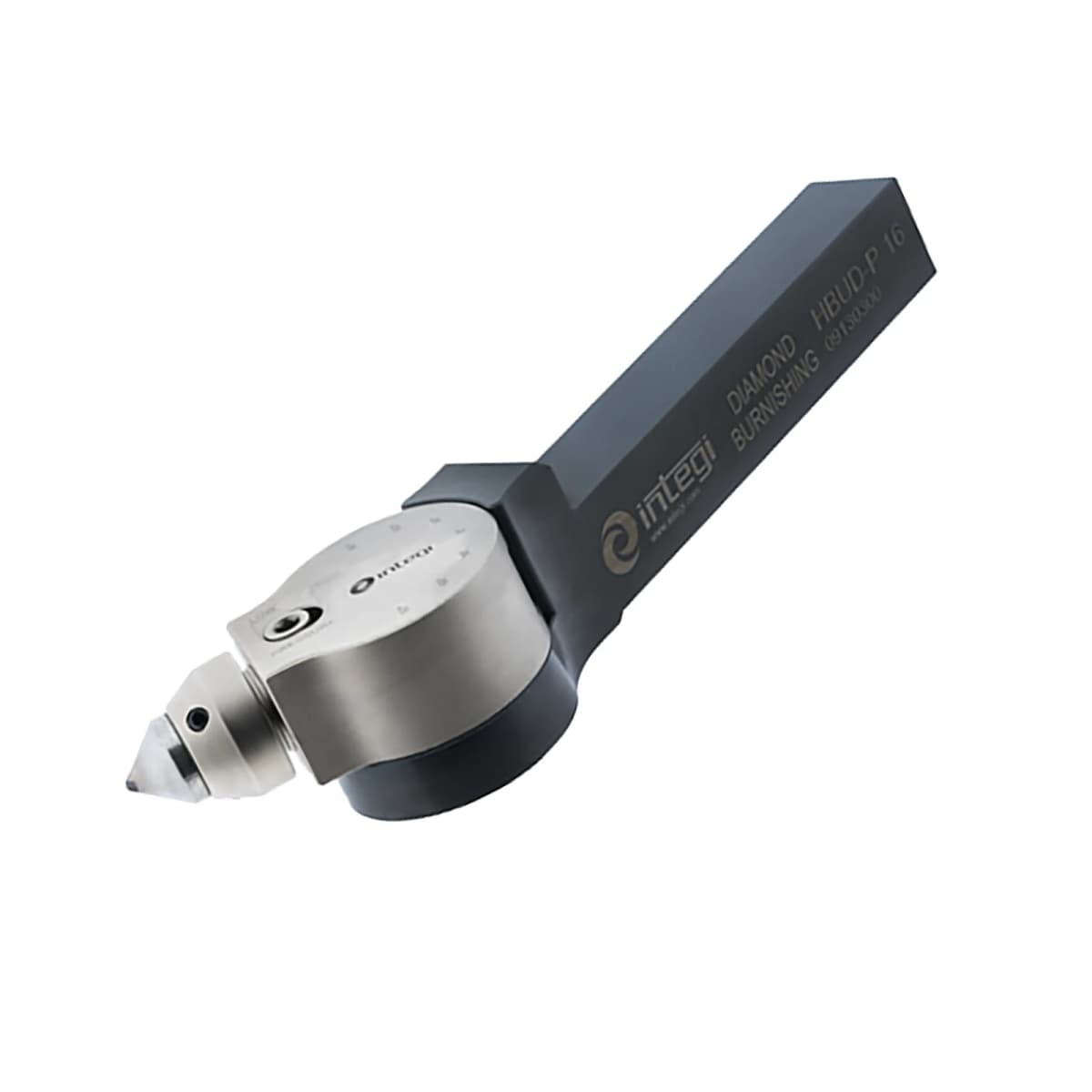

Image of a diamond tip rotating head burnishing tool holder from Integi, series HBUD-P.
Diagram of a diamond tip rotating head burnishing tool holder from Integi, series HBUD-P.
Image showing the different profiles that can be performed by the diamond tip burnishing tool holder from Integi, series HBUD-P.
Image of fig.1, fig.2 and fig.3 that are referenced in the description.

Diamond Tip Burnishing Tool Holder with Rotating Head (INTEGI)

Series: HBUD-P
Starting From:
£712.00 excl. VAT
£854.40 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
  • Tool designed for burnishing on lathes, on various profiles
  • Diamond tip aligned with the top face of the shank
  • Rotating head with graduated scale (Fig.1 & 2)
  • The head is equipped with an internal spring sytem to regulate the pressure of the diamond tip, making it homogeneous on all parts (Fig.3)
  • Can be used on workpieces made of different types of materials with hardness up to 63 HRC
  • Possibility of placing the diamond tip in different positions to extend the tool life
  • Diamond tip not included with the tool holder
...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUReferenceVersionDiamonCDKgPrice (Ex VAT)
09130100HBUD-P 10R+LDT1210160.3Kg£712.00
09130200HBUD-P 12R+LDT1212160.3Kg£712.00
09130300HBUD-P 16R+LDT1216160.4Kg£712.00
