ZCC-CT 2 Flute Long Length Corner Radius End Mill..
ZCC-CT 2 Flute Long Length Corner Radius End Mill..

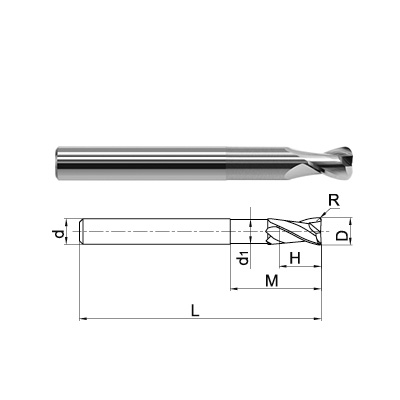

ZCC-CT 2 Flute Long Length Corner Radius End Mill Technical Drawing..

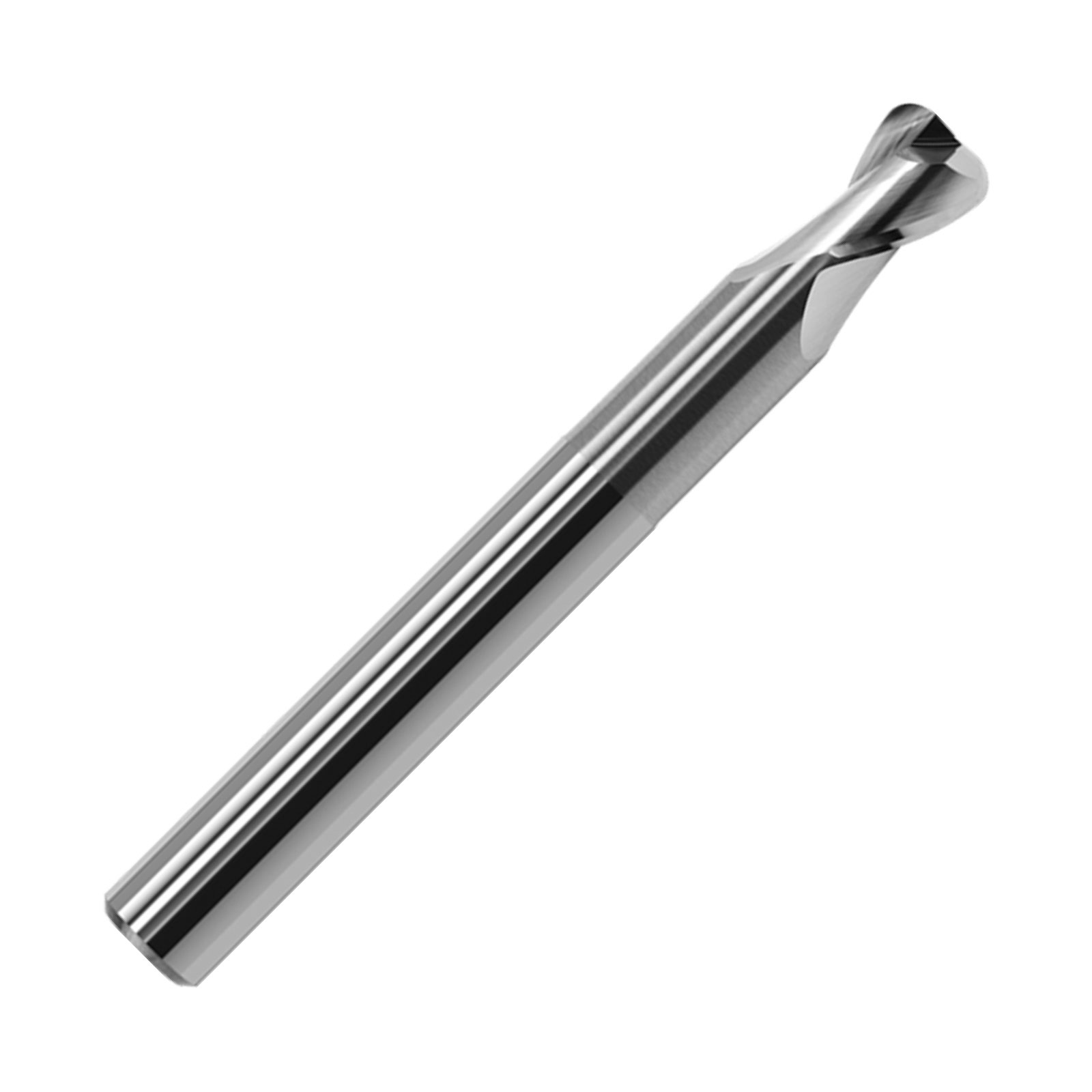

ZCC-CT AL-2RL 2 Flute Corner Radius Long Length End Mill for Aluminium

Series: AL-2RL
ZCC-CT 2 Flute Long Length Corner Radius End Mill
Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: AL2RLD120R10AIRYK40F
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 74mm
Overall Length: 120mm
Neck Dia: 11mm
1-2 days subject to availability

12MM X 1MM RADIUS 2 FLUTE LONG LENGTH CARBIDE

List Price: £121.92
SKU: AL2RLD120R20AIRYK40F
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 74mm
Overall Length: 120mm
Neck Dia: 11mm
1-2 days subject to availability

Aluminium-Cutter Ø 12.0; Z=2 R=2.0; Shaft HA; uncoated

List Price: £121.92
SKU: AL2RLD120R30AIRYK40F
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 74mm
Overall Length: 120mm
Neck Dia: 11mm
1-2 days subject to availability

Aluminium-Cutter Ø 12.0; Z=2 R=3.0; Shaft HA; uncoated

List Price: £121.92
SKU: AL2RLD160R10AirYK40F
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 16mm
Length Below Shank: 84mm
Overall Length: 140mm
Neck Dia: 15mm
1-2 days subject to availability

Aluminium-Cutter Ø 16.0; Z=2 R=1.0; Shaft HA; uncoated

List Price: £216.26
SKU: AL2RLD160R20AirYK40F
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 16mm
Length Below Shank: 84mm
Overall Length: 140mm
Neck Dia: 15mm
1-2 days subject to availability

Aluminium-Cutter Ø 16.0; Z=2 R=2.0; Shaft HA; uncoated

List Price: £216.26
SKU: AL2RLD160R30AirYK40F
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 16mm
Length Below Shank: 84mm
Overall Length: 140mm
Neck Dia: 15mm
1-2 days subject to availability

Aluminium-Cutter Ø 16.0; Z=2 R=3.0; Shaft HA; uncoated

List Price: £216.26
SKU: AL2RLD160R40AirYK40F
Diameter: 16mm
Radius: 4mm
Shank Diameter: 16mm
Cutting Length: 16mm
Length Below Shank: 84mm
Overall Length: 140mm
Neck Dia: 15mm
1-2 days subject to availability

Aluminium-Cutter Ø 16.0; Z=2 R=4.0; Shaft HA; uncoated

List Price: £216.26
SKU: AL2RLD200R10AIRYK40F
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 89mm
Overall Length: 140mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=1.0; Shaft HA; uncoated

List Price: £301.04
SKU: AL2RLD200R20AIRYK40F
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 89mm
Overall Length: 140mm
Neck Dia: 19mm
1-2 days subject to availability

20MM X 2MM RADIUS 2 FLUTE LONG LENGTH CARBIDE

List Price: £301.04
SKU: AL2RLD200R30AIRYK40F
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 89mm
Overall Length: 140mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=3.0; Shaft HA; uncoated

List Price: £301.04
SKU: AL2RLD200R40AIRYK40F
Diameter: 20mm
Radius: 4mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 89mm
Overall Length: 140mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=4.0; Shaft HA; uncoated

List Price: £301.04
SKU: AL2RLD200R50AIRYK40F
Diameter: 20mm
Radius: 5mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 89mm
Overall Length: 140mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=5.0; Shaft HA; uncoated

List Price: £301.04
SKU: AL2RLD200R60AIRYK40F
Diameter: 20mm
Radius: 6mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 89mm
Overall Length: 140mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=6.0; Shaft HA; uncoated

List Price: £301.04
SKU: AL2RLD60R10AirYK40F
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 7mm
Length Below Shank: 43mm
Overall Length: 80mm
Neck Dia: 5.5mm
1-2 days subject to availability

6MM X 1MM RADIUS 2 FLUTE LONG LENGTH CARBIDE

List Price: £45.92
SKU: AL2RLD80R02AirYK40F
1-2 days subject to availability

Aluminium-Cutter Ø 8.0; Z=2 R=0.2; Shaft HA; uncoated

List Price: £47.55
SKU: AL2RLD80R10AirYK40F
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 9mm
Length Below Shank: 53mm
Overall Length: 90mm
Neck Dia: 7.4mm
1-2 days subject to availability

Aluminium-Cutter Ø 8.0; Z=2 R=1.0; Shaft HA; uncoated

List Price: £57.59
