ZCC-CT 2 Flute Corner Radius End Mill..
ZCC-CT 2 Flute Corner Radius End Mill..

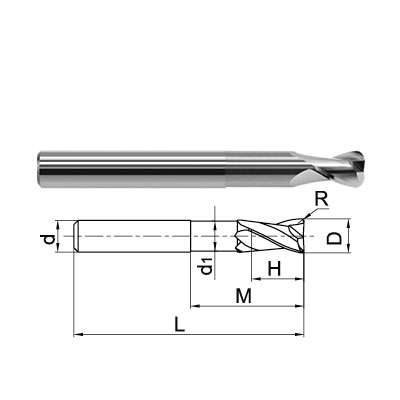

ZCC-CT 2 Flute Corner Radius End Mill Technical Drawing..

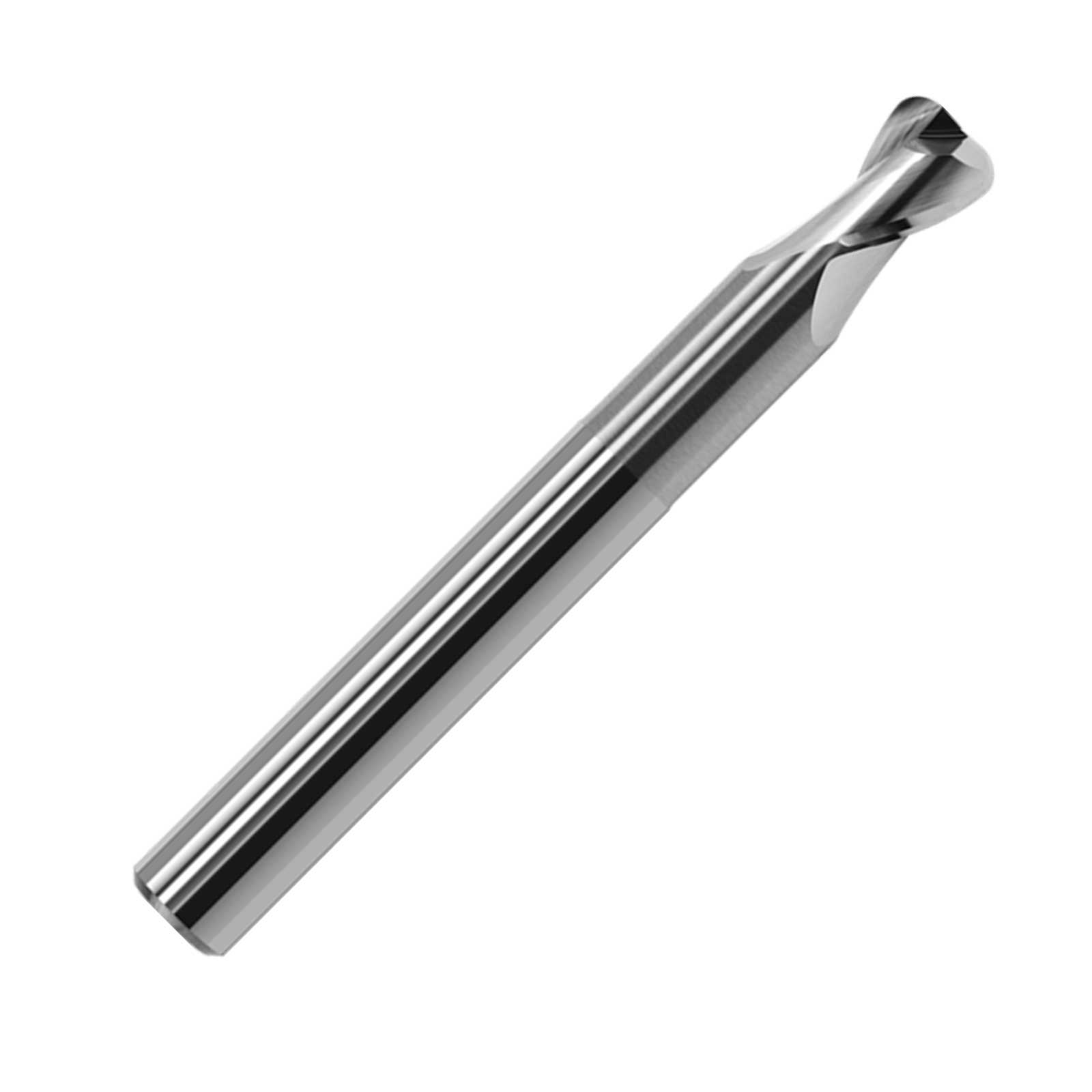

ZCC-CT AL-2R 2 Flute Corner Radius End Mill for Aluminium

Series: AL-2R
ZCC-CT 2 Flute Corner Radius End Mill
Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: AL2RD100R10AirYK40F
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 11mm
Length Below Shank: 31mm
Overall Length: 72mm
Neck Dia: 9.2mm
1-2 days subject to availability

Aluminium-Cutter Ø 10.0; Z=2 R=1.0; Shaft HA; uncoated

List Price: £67.63
SKU: AL2RD100R20AirYK40F
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 11mm
Length Below Shank: 31mm
Overall Length: 72mm
Neck Dia: 9.2mm
1-2 days subject to availability

10MM X 2MM RAD 2 FLUTE ALUMINIUM

List Price: £67.63
SKU: AL2RD120R10AirYK40F
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 37mm
Overall Length: 83mm
Neck Dia: 11mm
1-2 days subject to availability

12MM X 1MM RADIUS 2 FLUTE LONG LENGTH CARBIDE

List Price: £96.19
SKU: AL2RD120R20AirYK40F
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 37mm
Overall Length: 83mm
Neck Dia: 11mm
1-2 days subject to availability

Aluminium-Cutter Ø 12.0; Z=2 R=2.0; Shaft HA; uncoated

List Price: £96.19
SKU: AL2RD120R30AirYK40F
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 12mm
Length Below Shank: 37mm
Overall Length: 83mm
Neck Dia: 11mm
1-2 days subject to availability

Aluminium-Cutter Ø 12.0; Z=2 R=3.0; Shaft HA; uncoated

List Price: £96.19
SKU: AL2RD160R10AirYK40F
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 16mm
Length Below Shank: 43mm
Overall Length: 92mm
Neck Dia: 15mm
1-2 days subject to availability

Aluminium-Cutter Ø 16.0; Z=2 R=1.0; Shaft HA; uncoated

List Price: £170.55
SKU: AL2RD160R20AirYK40F
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 16mm
Length Below Shank: 43mm
Overall Length: 92mm
Neck Dia: 15mm
1-2 days subject to availability

16MM X 2MM RAD 2 FLUTE ALUMINUM END MILL

List Price: £170.55
SKU: AL2RD160R30AirYK40F
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 16mm
Length Below Shank: 43mm
Overall Length: 92mm
Neck Dia: 15mm
1-2 days subject to availability

Aluminium-Cutter Ø 16.0; Z=2 R=3.0; Shaft HA; uncoated

List Price: £170.55
SKU: AL2RD160R40AirYK40F
Diameter: 16mm
Radius: 4mm
Shank Diameter: 16mm
Cutting Length: 16mm
Length Below Shank: 43mm
Overall Length: 92mm
Neck Dia: 15mm
1-2 days subject to availability

Aluminium-Cutter Ø 16.0; Z=2 R=4.0; Shaft HA; uncoated

List Price: £170.55
SKU: AL2RD200R10AirYK40F
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 53mm
Overall Length: 104mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=1.0; Shaft HA; uncoated

List Price: £260.90
SKU: AL2RD200R20AirYK40F
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 53mm
Overall Length: 104mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=2.0; Shaft HA; uncoated

List Price: £260.90
SKU: AL2RD200R30AirYK40F
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 53mm
Overall Length: 104mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=3.0; Shaft HA; uncoated

List Price: £260.90
SKU: AL2RD200R40AirYK40F
Diameter: 20mm
Radius: 4mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 53mm
Overall Length: 104mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=4.0; Shaft HA; uncoated

List Price: £260.90
SKU: AL2RD200R50AirYK40F
Diameter: 20mm
Radius: 5mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 53mm
Overall Length: 104mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=5.0; Shaft HA; uncoated

List Price: £260.90
SKU: AL2RD200R60AirYK40F
Diameter: 20mm
Radius: 6mm
Shank Diameter: 20mm
Cutting Length: 20mm
Length Below Shank: 53mm
Overall Length: 104mm
Neck Dia: 19mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=6.0; Shaft HA; uncoated

List Price: £260.90
SKU: AL2RD60R10AirYK40F
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 7mm
Length Below Shank: 20mm
Overall Length: 57mm
Neck Dia: 5.5mm
1-2 days subject to availability

Aluminium-Cutter Ø 20.0; Z=2 R=1.0; Shaft HA; uncoated

List Price: £40.83
SKU: AL2RD80R10AirYK40F
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 9mm
Length Below Shank: 26mm
Overall Length: 63mm
Neck Dia: 7.4mm
1-2 days subject to availability

8MM 2 FLUTE CORNER RADIUS END MILL

List Price: £49.23
