156303..
156303.
Alu-XP 156303 Series 2 Flute 45 Degree Helix Reduced Neck Corner Radius Slot Drill For Machining Aluminium Technical Drawing.
.

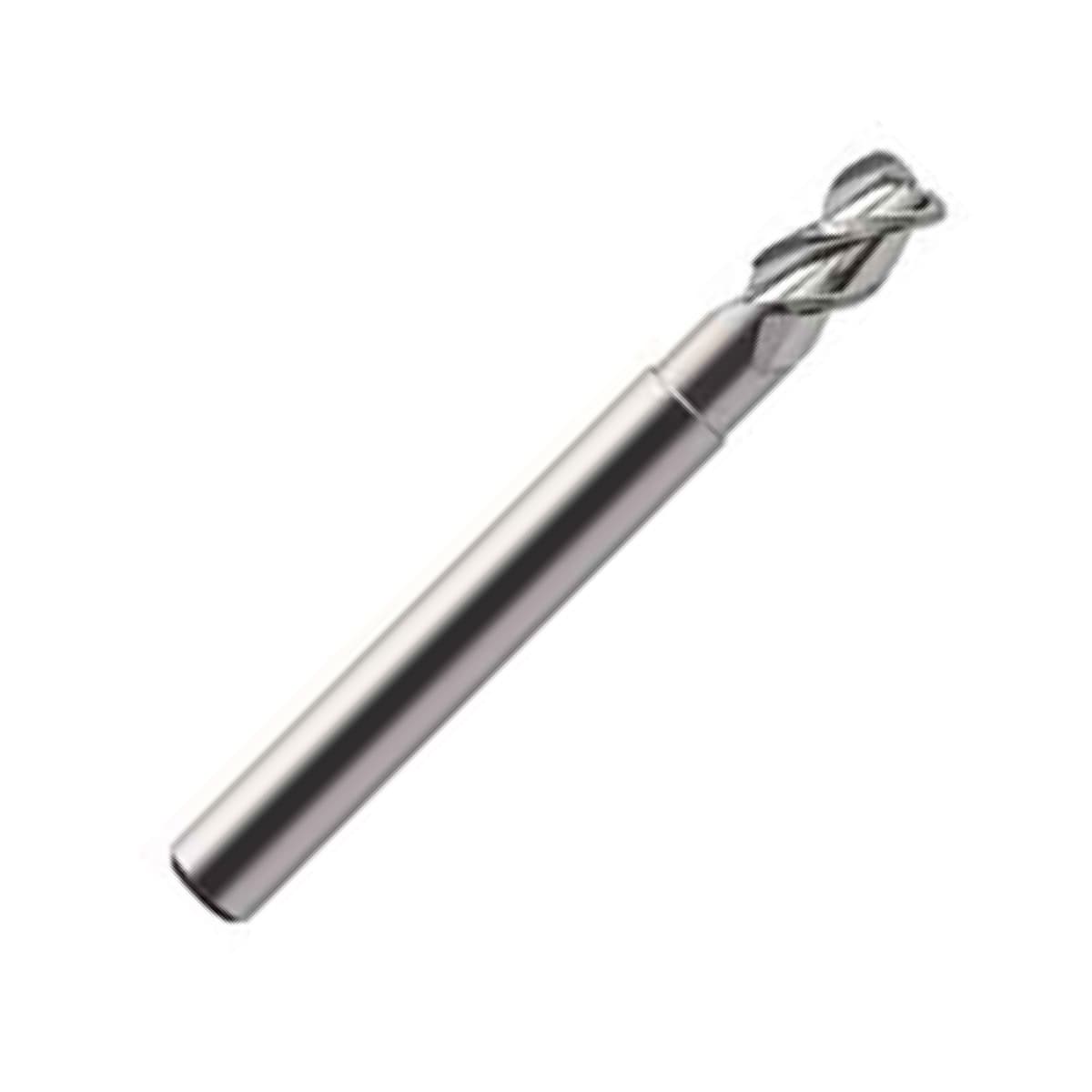

Alu-XP 156303 Series 2 Flute Carbide Corner Radius Reduced Neck End Mill for Aluminium & Non-Ferrous Machining

Series: 156303

Alu-XP tools with Òmirror polishedÓ flutes allow for smooth chip evacuation, giving better surface finish and wear resistance. Cutting edges are optimised to minimise vibration, and 3-flute tools have a tight diameter tolerance giving excellent process reliability.

Designed specifically for high speed machining of aluminium and other non-ferrous materials - Outstanding performance on aluminium, forging and cast aluminium alloys. The tools in this range are suitable for Aluminium and some for Copper and Acrylic.

Features:
  • Excellent surface finishes.
  • Superior chip removal
  • Micrograin solid carbide substrate
  • Mirror polished Flutes
  • Suitable for high speed machining of aluminium and other non-ferrous materials
  • Corner radius.
  • Neck relief
Description
D1
R
D2
L1
L2
Diameter
Radius
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: 1563030600
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 10mm
Overall Length: 70mm
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 10mm
Overall Length: 70mm

1-2 days
subject to

availability


subject to

availability

6MMX0.5 RAD 3 FLUTE ALU-XP SLOT DRILL

List Price: £35.52
SKU: 1563030601
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 10mm
Overall Length: 70mm
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 10mm
Overall Length: 70mm

1-2 days
subject to

availability


subject to

availability

6mm x 70mm OAL C/R 1mm ALU-XP 3FL 45DEG LBS 20mm

List Price: £35.52
SKU: 1563030800
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 12mm
Overall Length: 80mm
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 12mm
Overall Length: 80mm

1-2 days
subject to

availability


subject to

availability

8mm x 80mm OAL C/R 0.5mm ALU-XP 3FL 45DEG LBS 25mm

List Price: £35.54
SKU: 1563030801
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 12mm
Overall Length: 80mm
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 12mm
Overall Length: 80mm

1-2 days
subject to

availability


subject to

availability

8mm x 80mm OAL C/R 1mm ALU-XP 3FL 45DEG LBS 25mm

List Price: £35.54
SKU: 1563030802
Diameter: 8mm
Radius: 2mm
Shank Diameter: 8mm
Cutting Length: 12mm
Overall Length: 80mm
Diameter: 8mm
Radius: 2mm
Shank Diameter: 8mm
Cutting Length: 12mm
Overall Length: 80mm

1-2 days
subject to

availability


subject to

availability

8mm x 80mm OAL C/R 2mm ALU-XP 3FL 45DEG LBS 25mm

List Price: £36.97
SKU: 1563030803
Diameter: 8mm
Radius: 3mm
Shank Diameter: 8mm
Cutting Length: 12mm
Overall Length: 80mm
Diameter: 8mm
Radius: 3mm
Shank Diameter: 8mm
Cutting Length: 12mm
Overall Length: 80mm

1-2 days
subject to

availability


subject to

availability

8mm x 80mm OAL C/R 3mm ALU-XP 3FL 45DEG LBS 25mm

List Price: £35.54
SKU: 1563031000
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 15mm
Overall Length: 100mm
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 15mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

10mm x 100mm OAL C/R 0.5mm ALU-XP 3FL 45DEG LBS 30mm

List Price: £48.26
SKU: 1563031001
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 15mm
Overall Length: 100mm
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 15mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

10mm x 100mm OAL C/R 1mm ALU-XP 3FL 45DEG LBS 30mm

List Price: £48.26
SKU: 1563031002
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 15mm
Overall Length: 100mm
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 15mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

10mm x 100mm OAL C/R 2mm ALU-XP 3FL 45DEG LBS 30mm

List Price: £48.26
SKU: 1563031003
Diameter: 10mm
Radius: 3mm
Shank Diameter: 10mm
Cutting Length: 15mm
Overall Length: 100mm
Diameter: 10mm
Radius: 3mm
Shank Diameter: 10mm
Cutting Length: 15mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

10mm x 100mm OAL C/R 3mm ALU-XP 3FL 45DEG LBS 30mm

List Price: £48.26
SKU: 1563031200
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 20mm
Overall Length: 110mm
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 20mm
Overall Length: 110mm

1-2 days
subject to

availability


subject to

availability

12MMX0.5 RAD 3 FLUTE ALU-XP SLOT DRILL

List Price: £54.59
SKU: 1563031201
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 20mm
Overall Length: 110mm
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 20mm
Overall Length: 110mm

1-2 days
subject to

availability


subject to

availability

12mm x 110mm OAL C/R 1mm ALU-XP 3FL 45DEG LBS 35mm

List Price: £54.59
SKU: 1563031202
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 20mm
Overall Length: 110mm
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 20mm
Overall Length: 110mm

1-2 days
subject to

availability


subject to

availability

12mm x 110mm OAL C/R 2mm ALU-XP 3FL 45DEG LBS 35mm

List Price: £54.59
SKU: 1563031203
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 20mm
Overall Length: 110mm
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 20mm
Overall Length: 110mm

1-2 days
subject to

availability


subject to

availability

12MMX3 RAD 3 FLUTE ALU-XP SLOT DRILL

List Price: £54.59
SKU: 1563031204
Diameter: 12mm
Radius: 4mm
Shank Diameter: 12mm
Cutting Length: 20mm
Overall Length: 110mm
Diameter: 12mm
Radius: 4mm
Shank Diameter: 12mm
Cutting Length: 20mm
Overall Length: 110mm

1-2 days
subject to

availability


subject to

availability

12mm x 110mm OAL C/R 4mm ALU-XP 3FL 45DEG LBS 35mm

List Price: £54.59
SKU: 1563031600
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 25mm
Overall Length: 130mm
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 25mm
Overall Length: 130mm

1-2 days
subject to

availability


subject to

availability

16mm x 130mm OAL C/R 1mm ALU-XP 3FL 45DEG LBS 50mm

List Price: £112.37
SKU: 1563031601
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 25mm
Overall Length: 130mm
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 25mm
Overall Length: 130mm

1-2 days
subject to

availability


subject to

availability

16mm x 130mm OAL C/R 2mm ALU-XP 3FL 45DEG LBS 50mm

List Price: £112.37
SKU: 1563031602
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 25mm
Overall Length: 130mm
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 25mm
Overall Length: 130mm

1-2 days
subject to

availability


subject to

availability

16mm x 130mm OAL C/R 3mm ALU-XP 3FL 45DEG LBS 50mm

List Price: £112.37
SKU: 1563031603
Diameter: 16mm
Radius: 4mm
Shank Diameter: 16mm
Cutting Length: 25mm
Overall Length: 130mm
Diameter: 16mm
Radius: 4mm
Shank Diameter: 16mm
Cutting Length: 25mm
Overall Length: 130mm

1-2 days
subject to

availability


subject to

availability

16mm x 130mm OAL C/R 4mm ALU-XP 3FL 45DEG LBS 50mm

List Price: £112.37
SKU: 1563031604
Diameter: 16mm
Radius: 5mm
Shank Diameter: 16mm
Cutting Length: 25mm
Overall Length: 130mm
Diameter: 16mm
Radius: 5mm
Shank Diameter: 16mm
Cutting Length: 25mm
Overall Length: 130mm

1-2 days
subject to

availability


subject to

availability

16mm x 130mm OAL C/R 5mm ALU-XP 3FL 45DEG LBS 50mm

List Price: £112.37
SKU: 1563032000
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 30mm
Overall Length: 150mm
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 30mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

20mm x 150mm OAL C/R 1mm ALU-XP 3FL 45DEG LBS 60mm

List Price: £203.14
SKU: 1563032001
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 30mm
Overall Length: 150mm
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 30mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

20mm x 150mm OAL C/R 2mm ALU-XP 3FL 45DEG LBS 60mm

List Price: £203.14
SKU: 1563032002
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 30mm
Overall Length: 150mm
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 30mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

20mm x 150mm OAL C/R 3mm ALU-XP 3FL 45DEG LBS 60mm

List Price: £203.14
SKU: 1563032003
Diameter: 20mm
Radius: 4mm
Shank Diameter: 20mm
Cutting Length: 30mm
Overall Length: 150mm
Diameter: 20mm
Radius: 4mm
Shank Diameter: 20mm
Cutting Length: 30mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

20mm x 150mm OAL C/R 4mm ALU-XP 3FL 45DEG LBS 60mm

List Price: £203.14
SKU: 1563032004
Diameter: 20mm
Radius: 5mm
Shank Diameter: 20mm
Cutting Length: 30mm
Overall Length: 150mm
Diameter: 20mm
Radius: 5mm
Shank Diameter: 20mm
Cutting Length: 30mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

20mm x 150mm OAL C/R 5mm ALU-XP 3FL 45DEG LBS 60mm

List Price: £203.14
