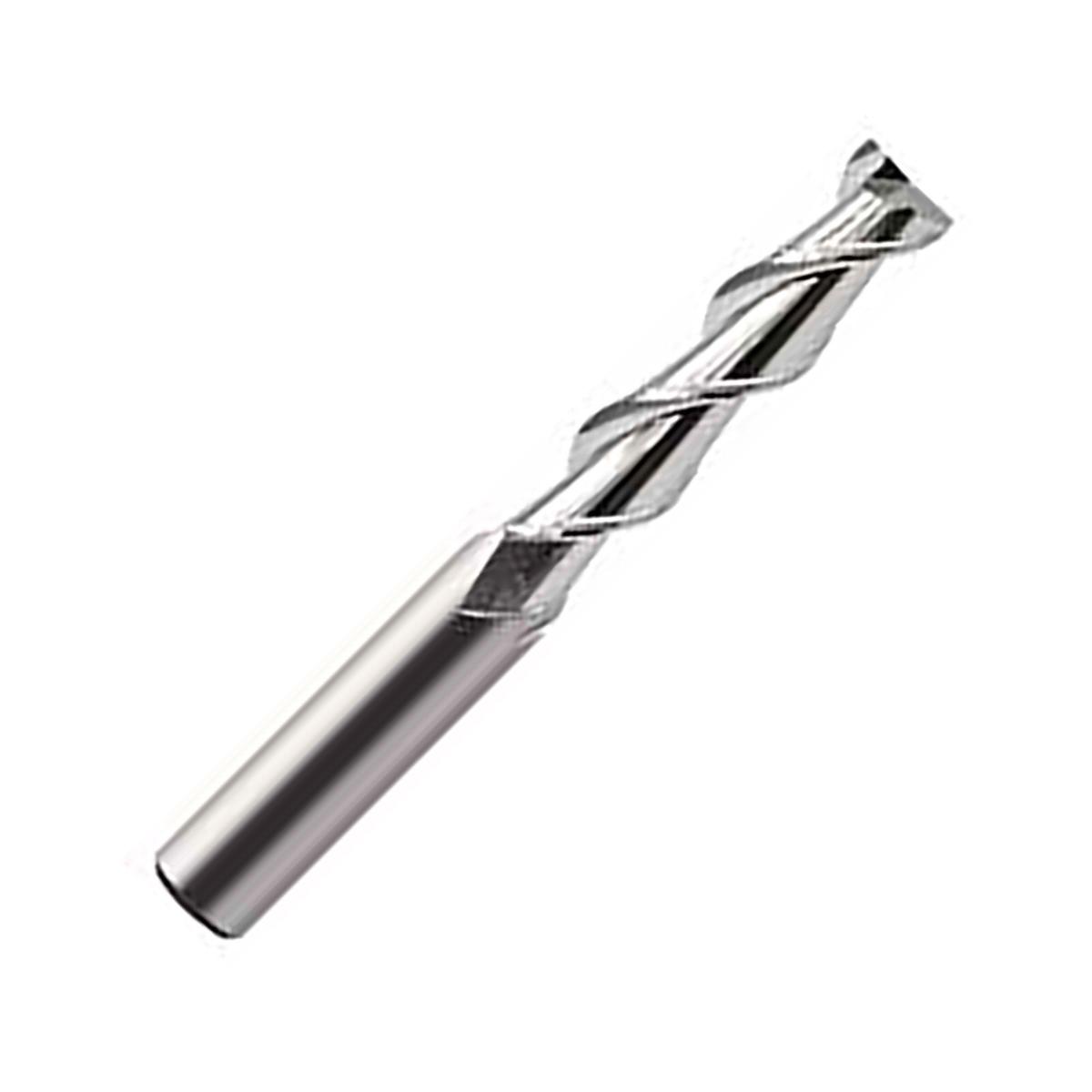

Alu-XP 154303 Series 2 Flute Carbide Long Length End Mill for Aluminium & Non-Ferrous Machining
Series: 154303£11.82 excl. VAT
£14.18 incl. VAT
Alu-XP tools with Òmirror polishedÓ flutes allow for smooth chip evacuation, giving better surface finish and wear resistance. Cutting edges are optimised to minimise vibration, and 3-flute tools have a tight diameter tolerance giving excellent process reliability.
Designed specifically for high speed machining of aluminium and other non-ferrous materials - Outstanding performance on aluminium, forging and cast aluminium alloys. The tools in this range are suitable for Aluminium and some for Copper and Acrylic.
Features:- Excellent surface finishes.
- Superior chip removal
- Micrograin solid carbide substrate
- Mirror polished Flutes
- Suitable for high speed machining of aluminium and other non-ferrous materials
- Corner protected.
- Long series
Downloads
| 154303-cutting-data.pdf |
Have a query?
Speak to one of our advisers today for expert advise.

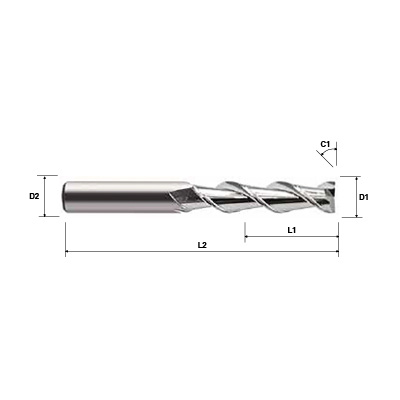

Description | Diameter / D1 | Shank Diameter / D2 | Cutting Length / L1 | Overall Length / L2 | Chamfer / C1 | Price |
|---|---|---|---|---|---|---|
| 1543030150 | 1.5mm | 6mm | 8mm | 60mm | 0.04mm | |
| 1543030100 | 1mm | 6mm | 6mm | 60mm | 0.04mm | |
| 1543030200 | 2mm | 6mm | 10mm | 60mm | 0.04mm | |
| 1543030300 | 3mm | 6mm | 15mm | 75mm | 0.05mm | |
| 1543030400 | 4mm | 6mm | 20mm | 75mm | 0.05mm | |
| 1543030500 | 5mm | 6mm | 25mm | 75mm | 0.05mm | |
| 1543030600 | 6mm | 6mm | 25mm | 75mm | 0.05mm | |
| 1543030800 | 8mm | 8mm | 30mm | 80mm | 0.05mm | |
| 1543031000 | 10mm | 10mm | 40mm | 100mm | 0.1mm | |
| 1543031200 | 12mm | 12mm | 50mm | 100mm | 0.1mm | |
| 1543031400 | 14mm | 14mm | 50mm | 100mm | 0.1mm | |
| 1543031600 | 16mm | 16mm | 70mm | 125mm | 0.1mm | |
| 1543031800 | 18mm | 18mm | 70mm | 125mm | 0.1mm | |
| 1543032000 | 20mm | 20mm | 75mm | 150mm | 0.1mm |
Product Information
Specifications
| Category: | Milling Cutters |
| Application: | Aluminium & Non-Ferrous |
| Range: | Alu-XP |
| Brand: | Europa Tool |
| No. Flutes: | 2 Flute |
| Profile: | Square |
| Length: | Long Length |
| Category: | Milling Tools |
| Substrate: | Carbide |
