Alu-XP 126303 Series 2 Flute 45 Degree Helix Long Length Weldon Shank Slot Drill For Machining Aluminium..
Alu-XP 126303 Series 2 Flute 45 Degree Helix Long Length Weldon Shank Slot Drill For Machining Aluminium..
Alu-XP 126303 Series 2 Flute 45 Degree Helix Long Length Weldon Shank Slot Drill For Machining Aluminium Technical Drawing..

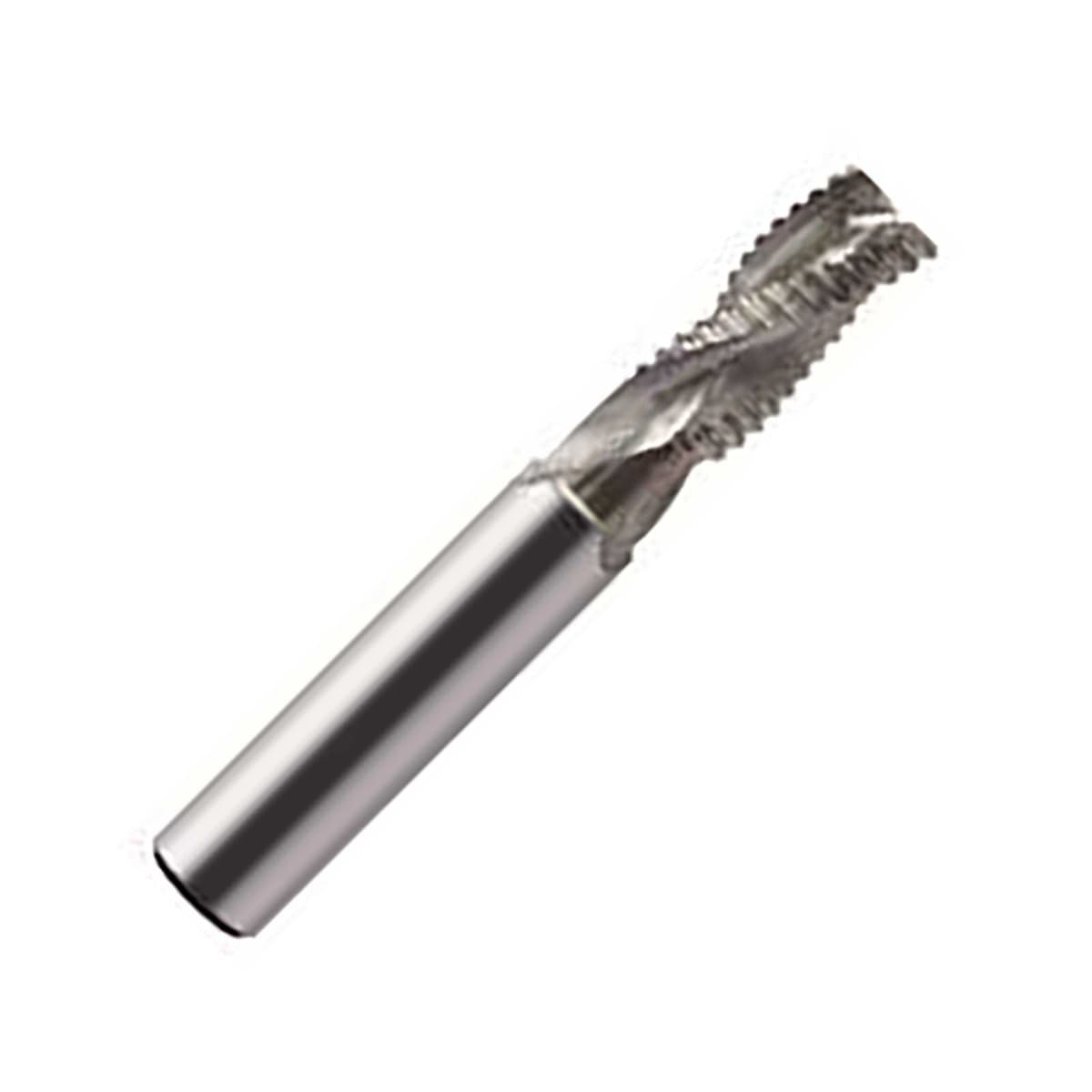

Alu-XP 126303 Series 2 Flute 45 Degree Helix Long Length Plain Shank Roughing End Mill for Machining Aluminium

Series: 126303
Starting From:
£32.90excl VAT£39.48 incl. VAT

View Product Variants Table
126303
Description
D1
D2
L1
L3
L2
C1
Diameter
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Chamfer
Neck Dia
Stock
Price
Add To Cart
SKU: 1263030600
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 16mm
Length Below Shank: 20mm
Overall Length: 57mm
Chamfer: 0.6mm
Neck Dia: 5mm
1-2 days subject to availability

6MM CARB 3FL ALU-XP ROUGHER WITH NECK

List Price:
£32.90ex VAT £39.48 inc VAT
SKU: 1263030800
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 16mm
Length Below Shank: 25mm
Overall Length: 63mm
Chamfer: 0.6mm
Neck Dia: 7mm
1-2 days subject to availability

8MM CARB 3FL ALU-XP ROUGHER WITH NECK

List Price:
£34.79ex VAT £41.75 inc VAT
SKU: 1263031000
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Chamfer: 0.6mm
Neck Dia: 9mm
1-2 days subject to availability

10MM CARB 3FL ALU-XP ROUGHER WITH NECK

List Price:
£55.01ex VAT £66.01 inc VAT
SKU: 1263031200
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 36mm
Overall Length: 83mm
Chamfer: 0.6mm
Neck Dia: 10.5mm
1-2 days subject to availability

12MM CARB 3FL ALU-XP ROUGHER WITH NECK

List Price:
£70.25ex VAT £84.30 inc VAT
SKU: 1263031600
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: 42mm
Overall Length: 92mm
Chamfer: 0.91mm
Neck Dia: 14.5mm
1-2 days subject to availability

16MM CARB 3FL ALU-XP ROUGHER WITH NECK

List Price:
£117.55ex VAT £141.06 inc VAT
SKU: 1263032000
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: 52mm
Overall Length: 104mm
Chamfer: 0.91mm
Neck Dia: 18.5mm
1-2 days subject to availability

20MM CARB 3FL ALU-XP ROUGHER WITH NECK

List Price:
£186.09ex VAT £223.31 inc VAT
