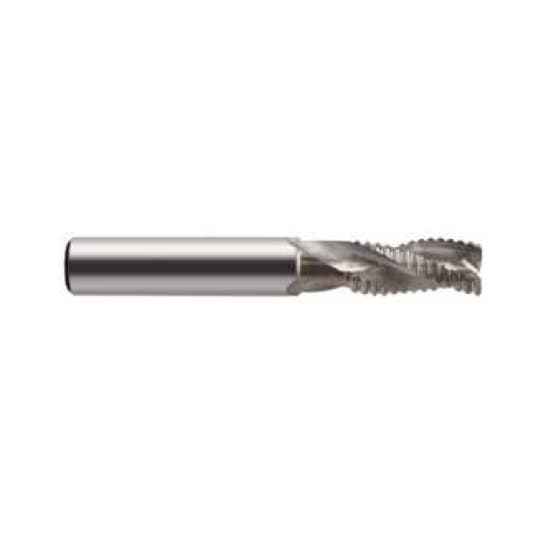

Alu-XP 126103 Series 2 Flute 45 Degree Helix Long Length Weldon Shank Roughing End Mill for Machining Aluminium
Series: 126103
126103
126103-cutting-data.pdf
View Products
Description

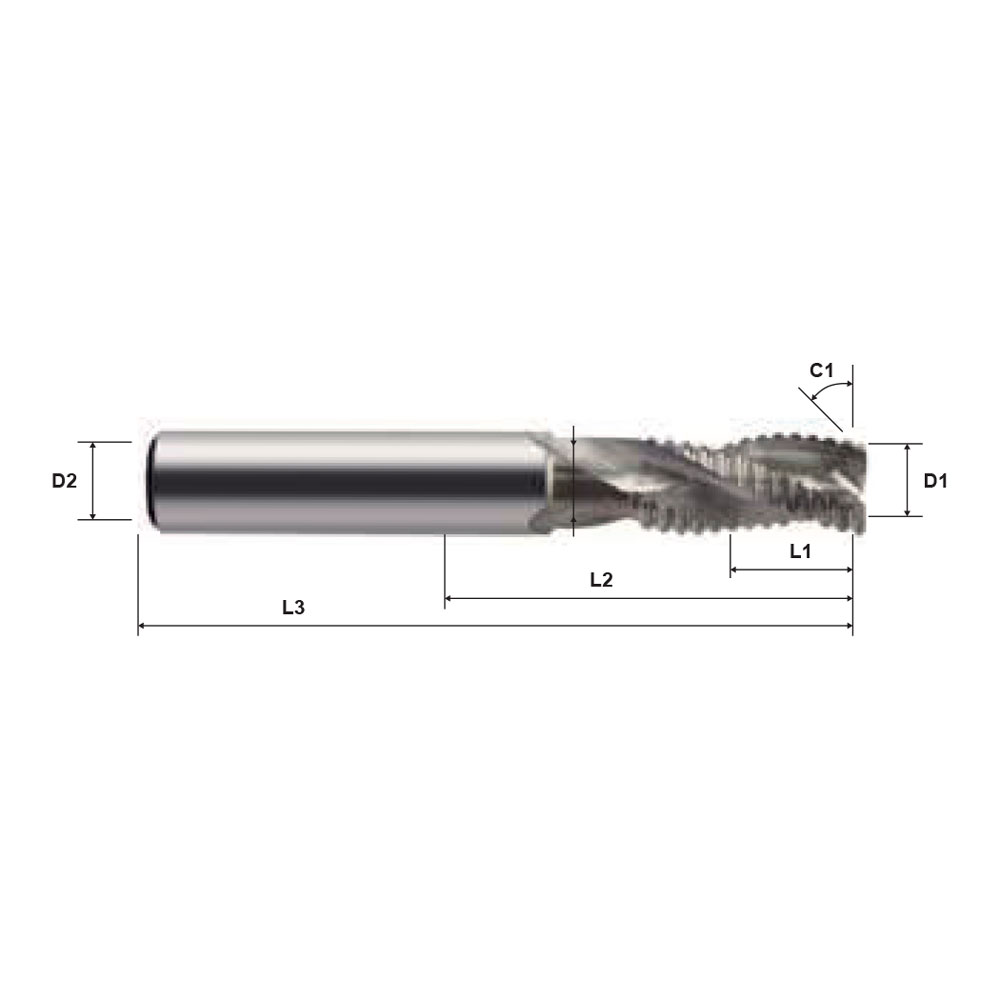

D1
D2
L1
L3
L2
C1
Diameter
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Chamfer
Neck Dia
Stock
Price
Add To Cart
SKU: 1261030600
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 16mm
Length Below Shank: 20mm
Overall Length: 57mm
Chamfer: 0.6mm
Neck Dia: 5mm
1-2 days
subject to
availability
6MM CARB 3FL ALU-XP ROUGHER WITH NECK F/SHK
List Price: £32.90
SKU: 1261030800
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 16mm
Length Below Shank: 25mm
Overall Length: 63mm
Chamfer: 0.6mm
Neck Dia: 7mm
1-2 days
subject to
availability
8MM CARB 3FL ALU-XP ROUGHER WITH NECK F/SHK
List Price: £34.79
SKU: 1261031000
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 22mm
Length Below Shank: 30mm
Overall Length: 72mm
Chamfer: 0.6mm
Neck Dia: 9mm
1-2 days
subject to
availability
10MM CARB 3FL ALU-XP ROUGHER WITH NECK F/SHK
List Price: £55.01
SKU: 1261031200
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 26mm
Length Below Shank: 36mm
Overall Length: 83mm
Chamfer: 0.6mm
Neck Dia: 10.5mm
1-2 days
subject to
availability
12MM CARB 3FL ALU-XP ROUGHER WITH NECK F/SHK
List Price: £70.25
SKU: 1261031600
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 32mm
Length Below Shank: 42mm
Overall Length: 92mm
Chamfer: 0.91mm
Neck Dia: 14.5mm
1-2 days
subject to
availability
16MM CARB 3FL ALU-XP ROUGHER WITH NECK F/SHK
List Price: £117.55
SKU: 1261032000
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 38mm
Length Below Shank: 52mm
Overall Length: 104mm
Chamfer: 0.91mm
Neck Dia: 18.5mm
1-2 days
subject to
availability
20MM CARB 3FL ALU-XP ROUGHER WITH NECK F/SHK
List Price: £186.09
