Alu-XP 125303 Series 3 Flute Long Length Roughing Weldon Shank End Mill for Machining Aluminium..
Alu-XP 125303 Series 3 Flute Long Length Roughing Weldon Shank End Mill for Machining Aluminium..
Alu-XP 125303 Series 3 Flute Long Length Roughing Weldon Shank End Mill for Machining Aluminium Technical Drawing..

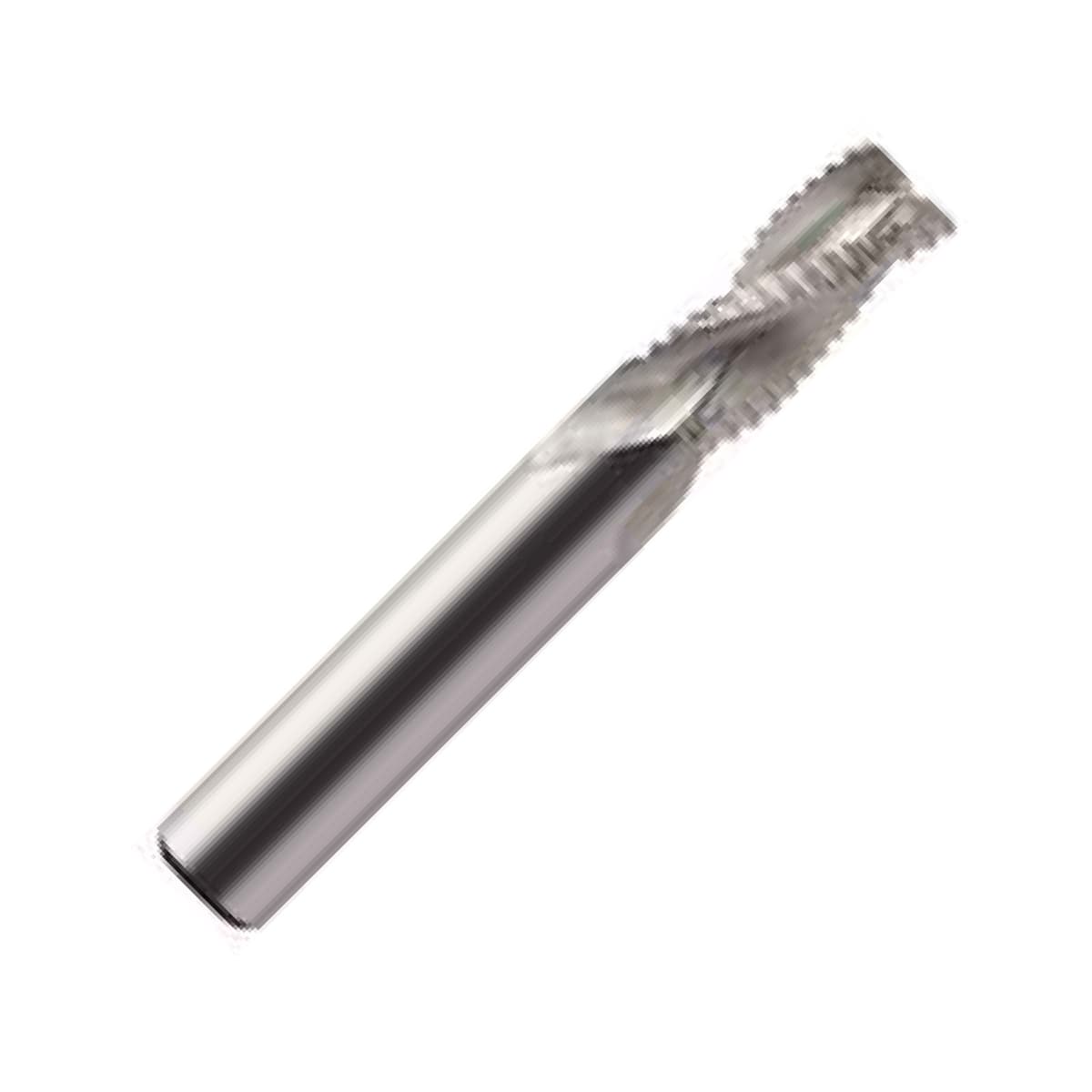

Alu-XP 125303 Series 3 Flute Long Length Roughing Weldon Shank End Mill for Machining Aluminium

Series: 125303
Starting From:
£22.28excl VAT£26.74 incl. VAT

View Product Variants Table

Designed specifically for high speed machining of aluminium and other non-ferrous materials - Outstanding performance on aluminium, forging and cast aluminium alloys.

Features: • Excellent surface finishes. • Superior chip removal. • Flatted shank. • Micrograin solid carbide substrate. • Corner protected.

Description
D1
D2
L1
L2
C1
Diameter
Shank Diameter
Cutting Length
Overall Length
Chamfer
Stock
Price
Add To Cart
SKU: 1253030600
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 16mm
Overall Length: 57mm
Chamfer: 0.6mm
1-2 days subject to availability

6mm CARB 3FL ALU-XP ROUGHER

List Price:
£22.28ex VAT £26.74 inc VAT
SKU: 1253030800
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 16mm
Overall Length: 63mm
Chamfer: 0.6mm
1-2 days subject to availability

8mm CARB 3FL ALU-XP ROUGHER

List Price:
£24.00ex VAT £28.80 inc VAT
SKU: 1253031000
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 22mm
Overall Length: 72mm
Chamfer: 0.6mm

1-2 days
subject to

availability

subject to availability

10mm CARB 3FL ALU-XP ROUGHER

List Price:
£38.40ex VAT £46.08 inc VAT
SKU: 1253031200
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 26mm
Overall Length: 83mm
Chamfer: 0.6mm
1-2 days subject to availability

12mm CARB 3FL ALU-XP ROUGHER

List Price:
£50.51ex VAT £60.61 inc VAT
SKU: 1253031400
Diameter: 14mm
Shank Diameter: 14mm
Cutting Length: 26mm
Overall Length: 83mm
Chamfer: 0.91mm
1-2 days subject to availability

14mm CARB 3FL ALU-XP ROUGHER

List Price:
£61.72ex VAT £74.06 inc VAT
SKU: 1253031600
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 32mm
Overall Length: 92mm
Chamfer: 0.91mm
1-2 days subject to availability

16mm CARB 3FL ALU-XP ROUGHER

List Price:
£85.03ex VAT £102.04 inc VAT
SKU: 1253032000
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 38mm
Overall Length: 104mm
Chamfer: 0.91mm
1-2 days subject to availability

20mm CARB 3FL ALU-XP ROUGHER

List Price:
£170.05ex VAT £204.06 inc VAT
