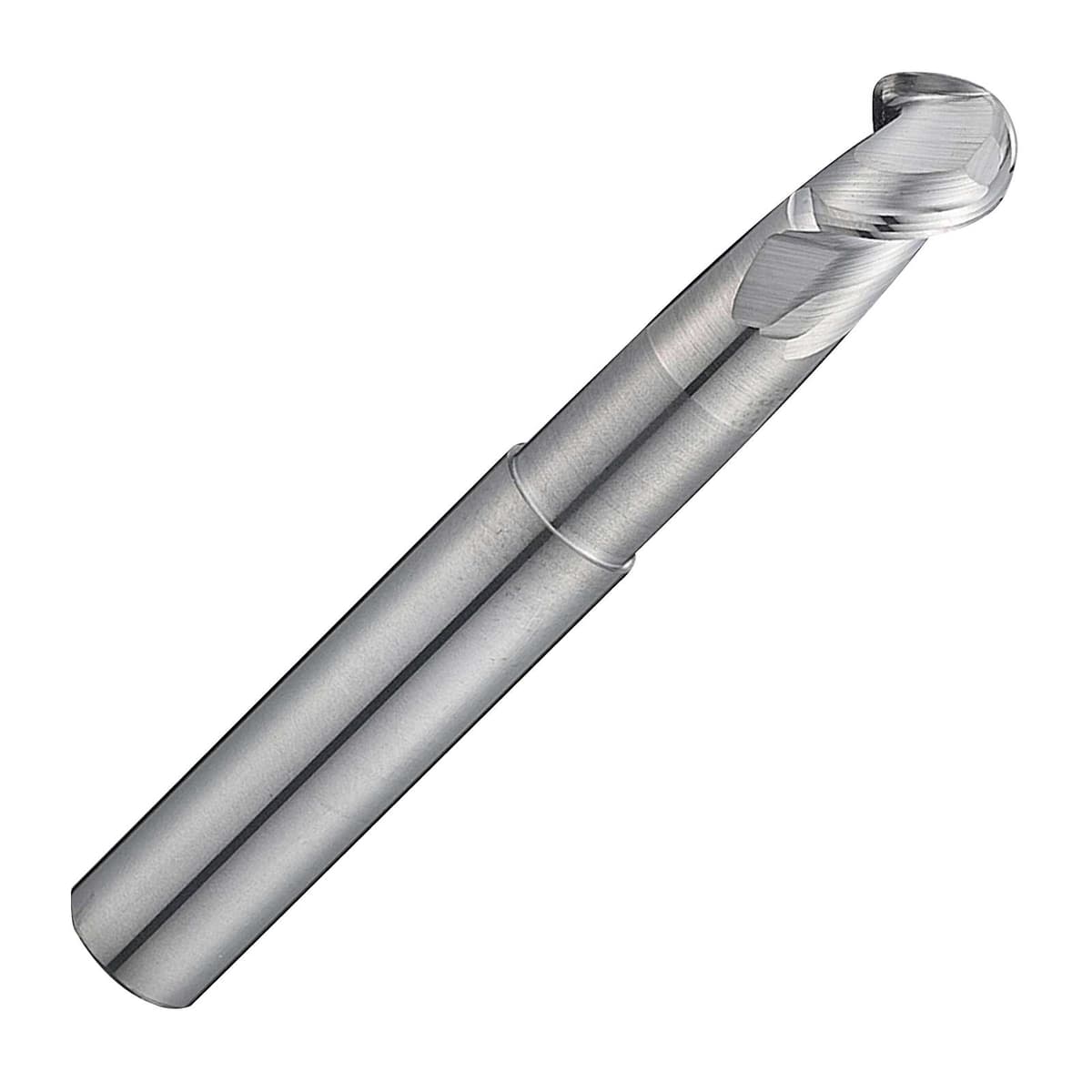

Alu XP 112303 Series 2 Flute Extended Neck Ball Nose Carbide End Mill For Aluminium..
Alu XP 112303 Series 2 Flute Extended Neck Ball Nose Carbide End Mill For Aluminium..

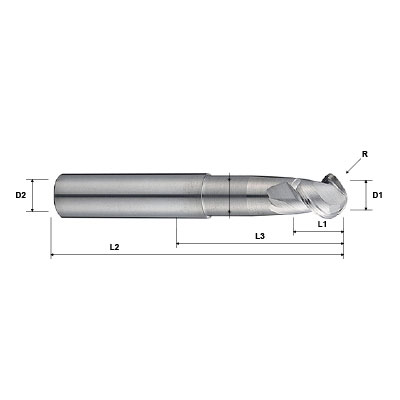

Alu XP 112303 Series 2 Flute Extended Neck Ball Nose Carbide End Mill For Aluminium Technical Drawing..

ALU-XP 113202 2 Flute Extended Neck 50 Degree Helix Ball Nose Milling Cutter for Aluminium

Series: 112303
Starting From:
£19.41excl VAT£23.29 incl. VAT

View Product Variants Table
112303
Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: 1123030600
Diameter: 6mm
Radius: 3mm
Shank Diameter: 6mm
Cutting Length: 5.5mm
Length Below Shank: 55mm
Overall Length: 25mm
Neck Dia: 5.4mm
1-2 days subject to availability

6MM 2FLT 50 DEG B/NOSE ALU-XP

List Price:
£19.78ex VAT £23.74 inc VAT
SKU: 1123030800
Diameter: 8mm
Radius: 4mm
Shank Diameter: 8mm
Cutting Length: 7mm
Length Below Shank: 65mm
Overall Length: 30mm
Neck Dia: 7.2mm
1-2 days subject to availability

8MM 2FLT 50 DEG B/NOSE ALU-XP

List Price:
£31.00ex VAT £37.20 inc VAT
SKU: 1123031000
Diameter: 10mm
Radius: 5mm
Shank Diameter: 10mm
Cutting Length: 8.5mm
Length Below Shank: 75mm
Overall Length: 35mm
Neck Dia: 9mm
1-2 days subject to availability

10MM 2FLT 50 DEG B/NOSE ALU-XP

List Price:
£46.81ex VAT £56.17 inc VAT
SKU: 1123031200
Diameter: 12mm
Radius: 6mm
Shank Diameter: 12mm
Cutting Length: 10.5mm
Length Below Shank: 75mm
Overall Length: 40mm
Neck Dia: 11mm
1-2 days subject to availability

12MM 2FLT 50 DEG B/NOSE ALU-XP

List Price:
£61.02ex VAT £73.22 inc VAT
SKU: 1123031600
Diameter: 16mm
Radius: 8mm
Shank Diameter: 16mm
Cutting Length: 14mm
Length Below Shank: 90mm
Overall Length: 50mm
Neck Dia: 14.5mm
1-2 days subject to availability

16MM 2FLT 50 DEG B/NOSE ALU-XP

List Price:
£102.64ex VAT £123.17 inc VAT
SKU: 1123032000
Diameter: 20mm
Radius: 10mm
Shank Diameter: 20mm
Cutting Length: 17mm
Length Below Shank: 100mm
Overall Length: 50mm
Neck Dia: 18mm
1-2 days subject to availability

20MM 2FLT 50 DEG B/NOSE ALU-XP

List Price:
£146.81ex VAT £176.17 inc VAT
SKU: 1411230300
1-2 days subject to availability

3mm CARB 3FL LG 45D FSHK TIALN

List Price:
£19.99ex VAT £23.99 inc VAT
SKU: 1411230350
1-2 days subject to availability

3.5mm 3FL L/S 45DEG F/S TIALN

List Price:
£19.41ex VAT £23.29 inc VAT
