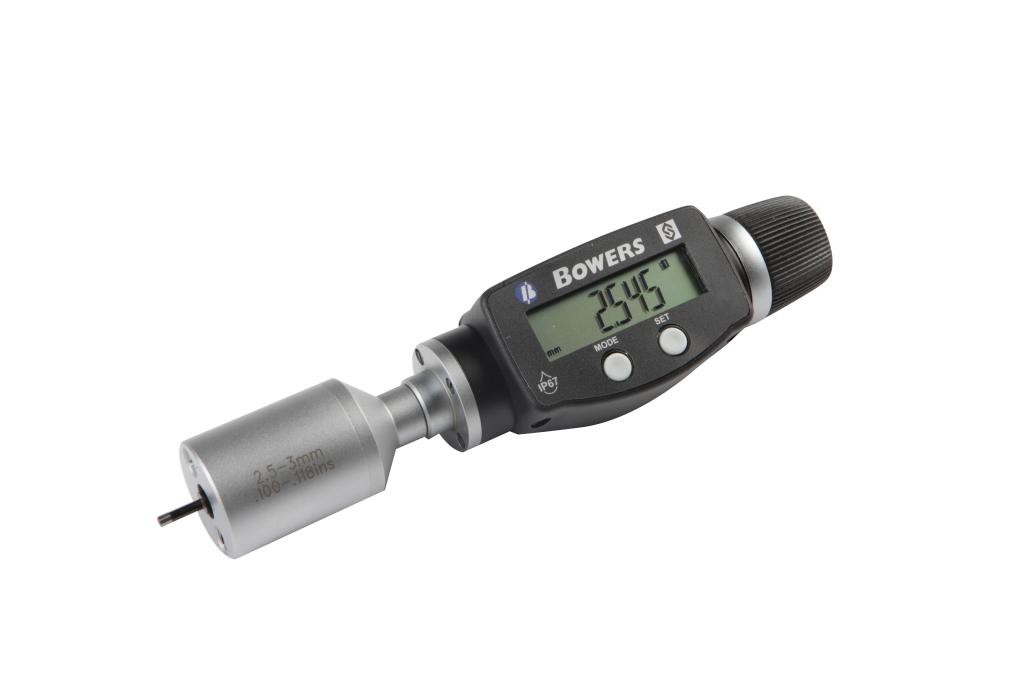

Bowers XT3 Digital Imperial Bore Gauge.

Bowers XT3 Digital Imperial Bore Gauge

Series: XTD-i-XT3
Starting From:
£789.00excl VAT£946.80 incl. VAT

View Product Variants Table

Bowers’ XT3 digital internal micrometers offer a new ergonomic designincluding a larger and clearer LCD displayalong with IP67 electronics protection, proximity output with optional built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines slots, grooves, deep-holes and many more applications are available. The Bowers XT3 range can be supplied as individual instruments or in complete sets, with UKAS certification of both measuring head and setting ring as standard.

Features:

  • New ergonomic design with larger and clearer LCD display
  • IP67 Electronics
  • Simple 2-button operation
  • 4 preset memories
  • Proximity output with optional built-in Bluetooth
  • Bi-directional communication
  • Range 2 – 300 mm (0.080” – 12”)
  • 2 – 6mm 2 point/ 6 – 300mm 3 point measurement
  • Resolution 0.001mm/0.00005”
  • Tungsten carbide measuring faces on all 3-point heads from 12.5mm
  • Blind bore measurement from 2mm – 6mm and above 12.5 mm (0.500”)
  • Extensions available above 6mm for deep hole measurement
  • Ratchet stop to ensure consistent measurement
  • Setting rings included with individual instruments and sets
  • UKAS certificates supplied as standard with all setting rings and gauges
  • Serial number on all digital readouts and measuring heads
  • Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
  • Bore gauges manufactured according to DIN 863, part 4
  • Supplied in fitted wooden case
Description
Stock
Price
Add To Cart
SKU: XTD100i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 4 - 5"

List Price:
£1,318.50ex VAT £1,582.20 inc VAT
SKU: XTD10i-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Bore Gauge - 3/8 - 1/2"

List Price:
£789.00ex VAT £946.80 inc VAT
SKU: XTD125i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 5 - 6"

List Price:
£1,430.50ex VAT £1,716.60 inc VAT
SKU: XTD12i-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Bore Gauge - 1/2 - 5/8"

List Price:
£806.50ex VAT £967.80 inc VAT
SKU: XTD150i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 6 - 7"

List Price:
£1,559.50ex VAT £1,871.40 inc VAT
SKU: XTD16i-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Bore Gauge - 5/8 - 3/4"

List Price:
£806.50ex VAT £967.80 inc VAT
SKU: XTD175i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 7 - 8"

List Price:
£1,655.00ex VAT £1,986.00 inc VAT
SKU: XTD1i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 0.080 - 0.100"

List Price:
£873.50ex VAT £1,048.20 inc VAT
SKU: XTD200i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 8 - 9"

List Price:
£1,681.00ex VAT £2,017.20 inc VAT
SKU: XTD20i-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Bore Gauge - 3/4 - 1"

List Price:
£963.50ex VAT £1,156.20 inc VAT
SKU: XTD225i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 9 - 10"

List Price:
£1,730.50ex VAT £2,076.60 inc VAT
SKU: XTD250i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 10 - 11"

List Price:
£1,792.00ex VAT £2,150.40 inc VAT
SKU: XTD25i-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Bore Gauge - 1 - 1 3/8"

List Price:
£1,100.00ex VAT £1,320.00 inc VAT
SKU: XTD275i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 11 - 12"

List Price:
£1,955.00ex VAT £2,346.00 inc VAT
SKU: XTD2i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 0.100 - 0.120"

List Price:
£890.00ex VAT £1,068.00 inc VAT
SKU: XTD35i-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Bore Gauge - 1 3/8 - 2"

List Price:
£1,202.50ex VAT £1,443.00 inc VAT
SKU: XTD3i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 0.120 - 0.160"

List Price:
£890.00ex VAT £1,068.00 inc VAT
SKU: XTD4i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 0.160 - 0.200"

List Price:
£890.00ex VAT £1,068.00 inc VAT
SKU: XTD50i-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Bore Gauge - 2 - 2 5/8"

List Price:
£1,264.00ex VAT £1,516.80 inc VAT
SKU: XTD5i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 0.200 - 0.250"

List Price:
£890.00ex VAT £1,068.00 inc VAT
SKU: XTD65i-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Bore Gauge - 2 5/8 - 3 1/4"

List Price:
£1,264.00ex VAT £1,516.80 inc VAT
SKU: XTD6i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 1/4 - 5/16"

List Price:
£789.00ex VAT £946.80 inc VAT
SKU: XTD80i-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Bore Gauge - 3 1/4 - 4"

List Price:
£1,332.00ex VAT £1,598.40 inc VAT
SKU: XTD8i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Bore Gauge - 5/16 - 3/8"

List Price:
£789.00ex VAT £946.80 inc VAT
