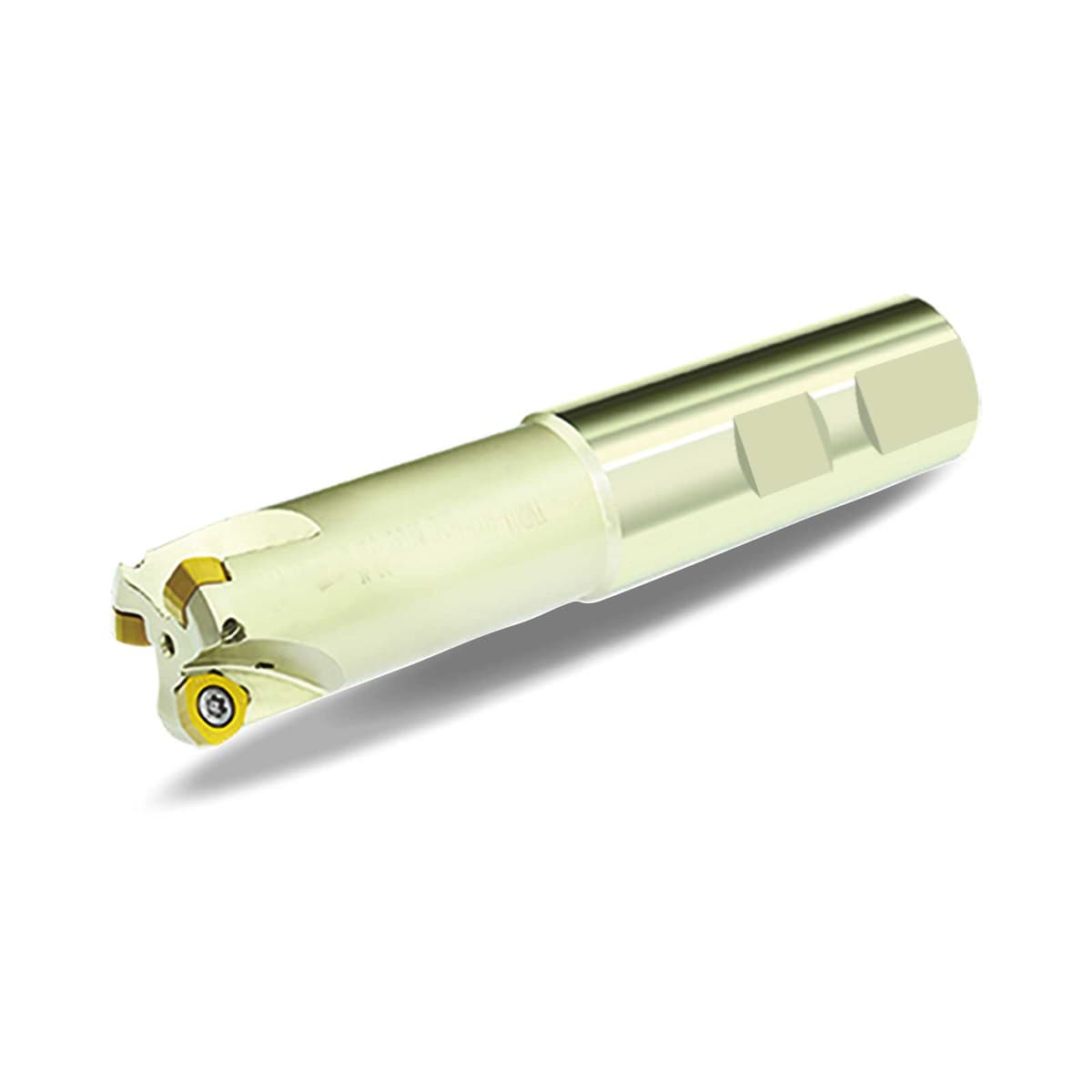

High Feed Indexable End Mill for Insert Style SDMT - ZCC-CT
Series: XMR01-END-MILL-SDMT£90.06 excl. VAT
£108.07 incl. VAT
- Diameter range Ø20 – 40 mm
- For steel, stainless steel and cast iron
- Inserts with four cutting edges
- Ramping possible
- Double clamping system for inserts
Have a query?
Speak to one of our advisers today for expert advise.
Description | Shank Diameter / D2 | Diameter | Price |
|---|---|---|---|
| XMR01-020-XP20-SD06-04C | 20mm | 20mm | |
| XMR01-025-XP25-SD06-05C | 25mm | 25mm | |
| XMR01-032-XP32-SD06-06C | 32mm | 32mm | |
| XMR01-025-XP25-SD09-02 | 25mm | 25mm | |
| XMR01-035-XP32-SD09-03 | 32mm | 35mm | |
| XMR01-040-XP40-SD12-03 | 40mm | 40mm | |
| XMR01-040-XP40-SD12-03C | 40mm | 40mm | |
| XMR01-040-XP40-SD15-02 |
Product Information
- Diameter range Ø20 – 40 mm
- For steel, stainless steel and cast iron
- Inserts with four cutting edges
- Ramping possible
- Double clamping system for inserts
Specifications
| Category: | Milling Tools |
| Category: | Indexable Milling |
| Indexable Milling: | High Feed Milling |
| Brand: | ZCC-CT |
| Application: | Steel |
| Application: | Stainless Steel |
| Application: | Cast Iron |
| Insert Type: | SDMT |
| Range: | XMR01 End Mill SDMT Series |
| Holder (Body) / Insert: | Holder (Body) |
| Approach Angle: | 15 Degrees |
| No of edges on insert: | 4 Edges |
Service & Delivery Information
What delivery options are available?
If the order is placed online, we offer free shipping to mainland UK on all orders over £25 ex VAT.
This offer excludes certain items due to weight restrictions. These items will be highlighted in the shopping cart.
Delivery to Ireland, Northern Ireland, Scottish Highlands etc may incur additional charges.
Please see our delivery information page for a full breakdown
Can I cancel or return the goods?
You are able to cancel or return the goods of items that we stock. Goods which are ordered in from supplies specifically for your order will be subject to a restocking fee.
Can I apply for a credit account?
We are able to offer businesses trade accounts subject to a soft credit check.
Please contact us if you would like to set up a trade account.
How do I track my order
Tracking details will be emailed for all orders sent tracked once the goods have been shipped. This will include a link to the relevant couriers website.
Alternatively, you can also contact us who can track the order for you.
I still have a query, how can I get in touch?
Please contact us if you have any questions regarding this product or any other product or service
You can contact us by:
- Phone: 01274 872822
- Email: sales@milotools.co.uk
- Online chat
Downloads
| xmr01-end-mill-sdmt-technical-data.pdf |
| xmr01-sdmt-end-mill-cutting-data.pdf |
