ZCC-CT VSM-4R 4 Flute AlTiN Coated High Performance Corner Radius Variable Helix Solid Carbide End Mill..
ZCC-CT VSM-4R 4 Flute AlTiN Coated High Performance Corner Radius Variable Helix Solid Carbide End Mill..
ZCC-CT VSM-4R 4 Flute Corner Radius AlTiN Coated High Performance Variable Helix Solid Carbide End Mill Technical Drawing..

ZCC-CT VSM-4R 4 Flute Corner Radius AlTiN Coated High Performance Variable Helix Solid Carbide End Mill

Series: VSM-4R

Solid carbide corner radius standard length high performance end mills with unequal pitch for roughing and finishing of steel up to 55HrC, stainless steel, heat resistant alloys and cast iron with high metal removal rate. AlTiN (Aluminium Titanium Nitride) coated for exceptional tool life and high heat resistance. Outstanding performance on steel, stainless steel and cast iron, suitable for hardened steel.

Features: • Sharp cutting edge with unequal 38 degree and 41 degree helix angles and unequal pitch. • Working processes: Square shoulder milling, groove milling, face milling, counter sinking, circular milling and centre cutting. • End mills and torus Mills. • Corner Radius. • Heat resistant alloy machining. • AlTiN (Aluminium Titanium Nitride) coated solid carbide for exceptional tool life.

Description

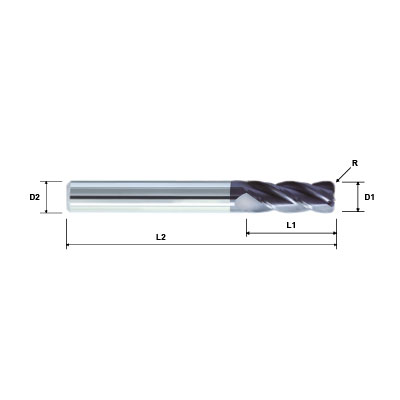

D1
R
D2
L1
L2
Diameter
Radius
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: VSM4RD100R05KMG405
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 25mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=0.5; Shaft HA; coated

List Price: £52.26
SKU: VSM4RD100R08KMG405
Diameter: 10mm
Radius: 0.8mm
Shank Diameter: 10mm
Cutting Length: 25mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=0.8; Shaft HA; coated

List Price: £52.26
SKU: VSM4RD100R10KMG405
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 25mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=1.0; Shaft HA; coated

List Price: £52.26
SKU: VSM4RD100R15KMG405
Diameter: 10mm
Radius: 1.5mm
Shank Diameter: 10mm
Cutting Length: 25mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=1.5; Shaft HA; coated

List Price: £52.26
SKU: VSM4RD100R20KMG405
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 25mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=2.0; Shaft HA; coated

List Price: £52.26
SKU: VSM4RD120R03KMG405

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=0.3; Shaft HA; coated

List Price: £55.76
SKU: VSM4RD120R05KMG405
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 30mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=0.5; Shaft HA; coated

List Price: £70.90
SKU: VSM4RD120R08KMG405
Diameter: 12mm
Radius: 0.8mm
Shank Diameter: 12mm
Cutting Length: 30mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=0.8; Shaft HA; coated

List Price: £70.90
SKU: VSM4RD120R10KMG405
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 30mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=1.0; Shaft HA; coated

List Price: £70.90
SKU: VSM4RD120R15KMG405
Diameter: 12mm
Radius: 1.5mm
Shank Diameter: 12mm
Cutting Length: 30mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=1.5; Shaft HA; coated

List Price: £70.90
SKU: VSM4RD120R20KMG405
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 30mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=2.0; Shaft HA; coated

List Price: £70.90
SKU: VSM4RD120R25KMG405
Diameter: 12mm
Radius: 2.5mm
Shank Diameter: 12mm
Cutting Length: 30mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=2.5; Shaft HA; coated

List Price: £70.90
SKU: VSM4RD120R30KMG405
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 30mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=3.0; Shaft HA; coated

List Price: £70.90
SKU: VSM4RD120R40KMG405
Diameter: 12mm
Radius: 4mm
Shank Diameter: 12mm
Cutting Length: 30mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=4.0; Shaft HA; coated

List Price: £70.90
SKU: VSM4RD160R05KMG405
Diameter: 16mm
Radius: 0.5mm
Shank Diameter: 16mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=0.5; Shaft HA; coated

List Price: £146.77
SKU: VSM4RD160R08KMG405
Diameter: 16mm
Radius: 0.8mm
Shank Diameter: 16mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=0.8; Shaft HA; coated

List Price: £146.77
SKU: VSM4RD160R10KMG405
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=1.0; Shaft HA; coated

List Price: £146.77
SKU: VSM4RD160R15KMG405
Diameter: 16mm
Radius: 1.5mm
Shank Diameter: 16mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=1.5; Shaft HA; coated

List Price: £146.77
SKU: VSM4RD160R20KMG405
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=2.0; Shaft HA; coated

List Price: £146.77
SKU: VSM4RD160R25KMG405
Diameter: 16mm
Radius: 2.5mm
Shank Diameter: 16mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=2.5; Shaft HA; coated

List Price: £146.77
SKU: VSM4RD160R30KMG405
Diameter: 16mm
Radius: 3mm
Shank Diameter: 16mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=3.0; Shaft HA; coated

List Price: £146.77
SKU: VSM4RD160R40KMG405
Diameter: 16mm
Radius: 4mm
Shank Diameter: 16mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=4.0; Shaft HA; coated

List Price: £146.77
SKU: VSM4RD200R05KMG405
Diameter: 20mm
Radius: 0.5mm
Shank Diameter: 20mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 20.0; Z=4 R=0.5; Shaft HA; coated

List Price: £198.63
SKU: VSM4RD200R10KMG405
Diameter: 20mm
Radius: 1mm
Shank Diameter: 20mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 20.0; Z=4 R=1.0; Shaft HA; coated

List Price: £198.63
SKU: VSM4RD200R15KMG405
Diameter: 20mm
Radius: 1.5mm
Shank Diameter: 20mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 20.0; Z=4 R=1.5; Shaft HA; coated

List Price: £198.63
SKU: VSM4RD200R20KMG405
Diameter: 20mm
Radius: 2mm
Shank Diameter: 20mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 20.0; Z=4 R=2.0; Shaft HA; coated

List Price: £198.63
SKU: VSM4RD200R25KMG405
Diameter: 20mm
Radius: 2.5mm
Shank Diameter: 20mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 20.0; Z=4 R=2.5; Shaft HA; coated

List Price: £198.63
SKU: VSM4RD200R30KMG405
Diameter: 20mm
Radius: 3mm
Shank Diameter: 20mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 20.0; Z=4 R=3.0; Shaft HA; coated

List Price: £198.63
SKU: VSM4RD200R40KMG405
Diameter: 20mm
Radius: 4mm
Shank Diameter: 20mm
Cutting Length: 45mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 20.0; Z=4 R=4.0; Shaft HA; coated

List Price: £198.63
SKU: VSM4RD40R02KMG405
Diameter: 4mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 11mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 4.0; Z=4 R=0.2; Shaft HA; coated

List Price: £25.03
SKU: VSM4RD40R05KMG405
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 11mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 4.0; Z=4 R=0.5; Shaft HA; coated

List Price: £25.03
SKU: VSM4RD50R02KMG405
Diameter: 5mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 5.0; Z=4 R=0.2; Shaft HA; coated

List Price: £25.03
SKU: VSM4RD50R05KMG405
Diameter: 5mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 5.0; Z=4 R=0.5; Shaft HA; coated

List Price: £25.03
SKU: VSM4RD60R02KMG405
Diameter: 6mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 16mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 6.0; Z=4 R=0.2; Shaft HA; coated

List Price: £25.03
SKU: VSM4RD60R05KMG405
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 16mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 6.0; Z=4 R=0.5; Shaft HA; coated

List Price: £25.03
SKU: VSM4RD60R10KMG405
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 16mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 6.0; Z=4 R=1.0; Shaft HA; coated

List Price: £25.03
SKU: VSM4RD60R15KMG405
Diameter: 6mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 16mm
Overall Length: 50mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 6.0; Z=4 R=1.5; Shaft HA; coated

List Price: £25.03
SKU: VSM4RD80R05KMG405
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 20mm
Overall Length: 63mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 8.0; Z=4 R=0.5; Shaft HA; coated

List Price: £40.24
SKU: VSM4RD80R08KMG405
Diameter: 8mm
Radius: 0.8mm
Shank Diameter: 8mm
Cutting Length: 20mm
Overall Length: 63mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 8.0; Z=4 R=0.8; Shaft HA; coated

List Price: £40.24
SKU: VSM4RD80R10KMG405
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 20mm
Overall Length: 63mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 8.0; Z=4 R=1.0; Shaft HA; coated

List Price: £40.24
SKU: VSM4RD80R15KMG405
Diameter: 8mm
Radius: 1.5mm
Shank Diameter: 8mm
Cutting Length: 20mm
Overall Length: 63mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 8.0; Z=4 R=1.5; Shaft HA; coated

List Price: £40.24
SKU: VSM4RD80R20KMG405
Diameter: 8mm
Radius: 2mm
Shank Diameter: 8mm
Cutting Length: 20mm
Overall Length: 63mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 8.0; Z=4 R=2.0; Shaft HA; coated

List Price: £40.24
