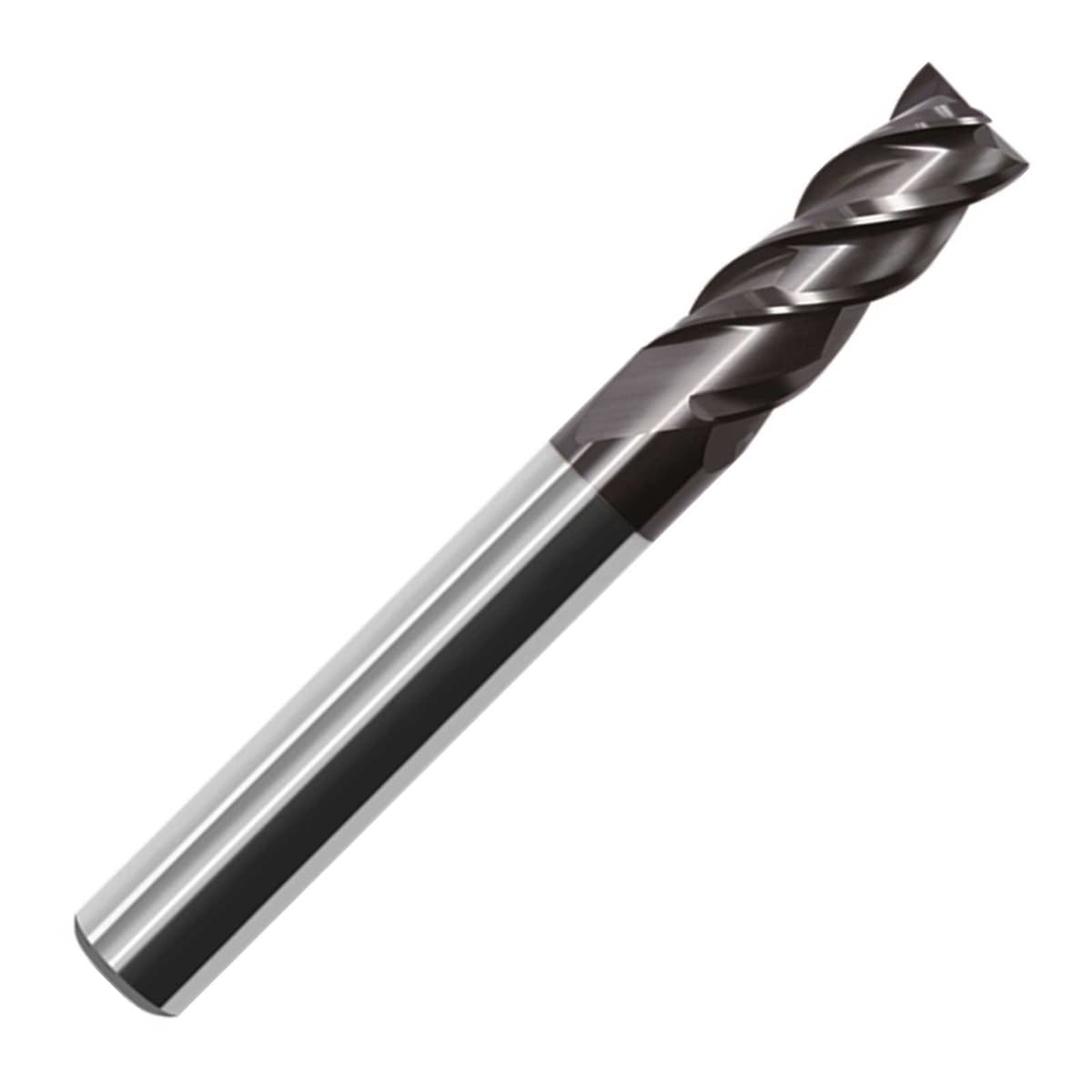

ZCC-CT UM-4RL 4 Flute Long Length Corner Radius AlCrN Coated High Performance Variable Helix Solid Carbide End Mill.
ZCC-CT UM-4RL 4 Flute Long Length Corner Radius AlCrN Coated High Performance Variable Helix Solid Carbide End Mill.

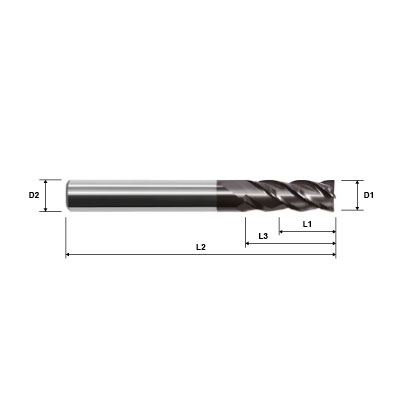

ZCC-CT UM-4RL 4 Flute Long Length Corner Radius AlCrN Coated High Performance Variable Helix Solid Carbide End Mill Technical Drawing.

ZCC-CT UM-4RL 4 Flute Long Length Corner Radius AlCrN Coated High Performance Variable Helix Solid Carbide End Mill

Series: UM-4RL

Solid carbide long length corner radius high performance end mills with unequal pitch for roughing and finishing of steel up to 55HrC, stainless steel and cast iron with high metal removal rate. AlCrN (Aluminium Chromium Nitride) coated for exceptional tool life, performing better than TiAlN in many dry and high speed metalcutting applications. Outstanding performance on steel, stainless steel and cast iron, suitable for hardened steel.

Features: • Optimised geometry with unequal 38 degree and 41 degree helix angles and unequal pitch. • Working processes: Square shoulder milling, groove milling, face milling, counter sinking, circular milling and centre cutting. • End mills and torus Mills. • Long Length. • Corner Radius. • HSC/HPC machining. • AlCrN (Aluminium Chromium Nitride) coated solid carbide for exceptional tool life.

Description
D1
R
D2
L1
L3
L2
Diameter
Radius
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Stock
Price
Add To Cart
SKU: UM4RLD100R05KMG405
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 15mm
Length Below Shank: 25mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=0.5; Shaft HA; coated

List Price: £52.92
SKU: UM4RLD100R10KMG405
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 15mm
Length Below Shank: 25mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=1.0; Shaft HA; coated

List Price: £52.92
SKU: UM4RLD100R20KMG405
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 15mm
Length Below Shank: 25mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4 R=2.0; Shaft HA; coated

List Price: £52.92
SKU: UM4RLD120R05KMG405
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 18mm
Length Below Shank: 30mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=0.5; Shaft HA; coated

List Price: £71.37
SKU: UM4RLD120R10KMG405
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 18mm
Length Below Shank: 30mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=1.0; Shaft HA; coated

List Price: £71.37
SKU: UM4RLD120R20KMG405
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 18mm
Length Below Shank: 30mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4 R=2.0; Shaft HA; coated

List Price: £71.37
SKU: UM4RLD160R10KMG405
Diameter: 16mm
Radius: 1mm
Shank Diameter: 16mm
Cutting Length: 24mm
Length Below Shank: 45mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=1.0; Shaft HA; coated

List Price: £147.80
SKU: UM4RLD160R20KMG405
Diameter: 16mm
Radius: 2mm
Shank Diameter: 16mm
Cutting Length: 24mm
Length Below Shank: 45mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4 R=2.0; Shaft HA; coated

List Price: £147.80
SKU: UM4RLD60R05KMG405
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 9mm
Length Below Shank: 16mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 6.0; Z=4 R=0.5; Shaft HA; coated

List Price: £25.03
SKU: UM4RLD60R10KMG405
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 9mm
Length Below Shank: 16mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 6.0; Z=4 R=1.0; Shaft HA; coated

List Price: £25.03
SKU: UM4RLD80R05KMG405
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 20mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 8.0; Z=4 R=0.5; Shaft HA; coated

List Price: £39.27
SKU: UM4RLD80R10KMG405
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 20mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 8.0; Z=4 R=1.0; Shaft HA; coated

List Price: £39.27
