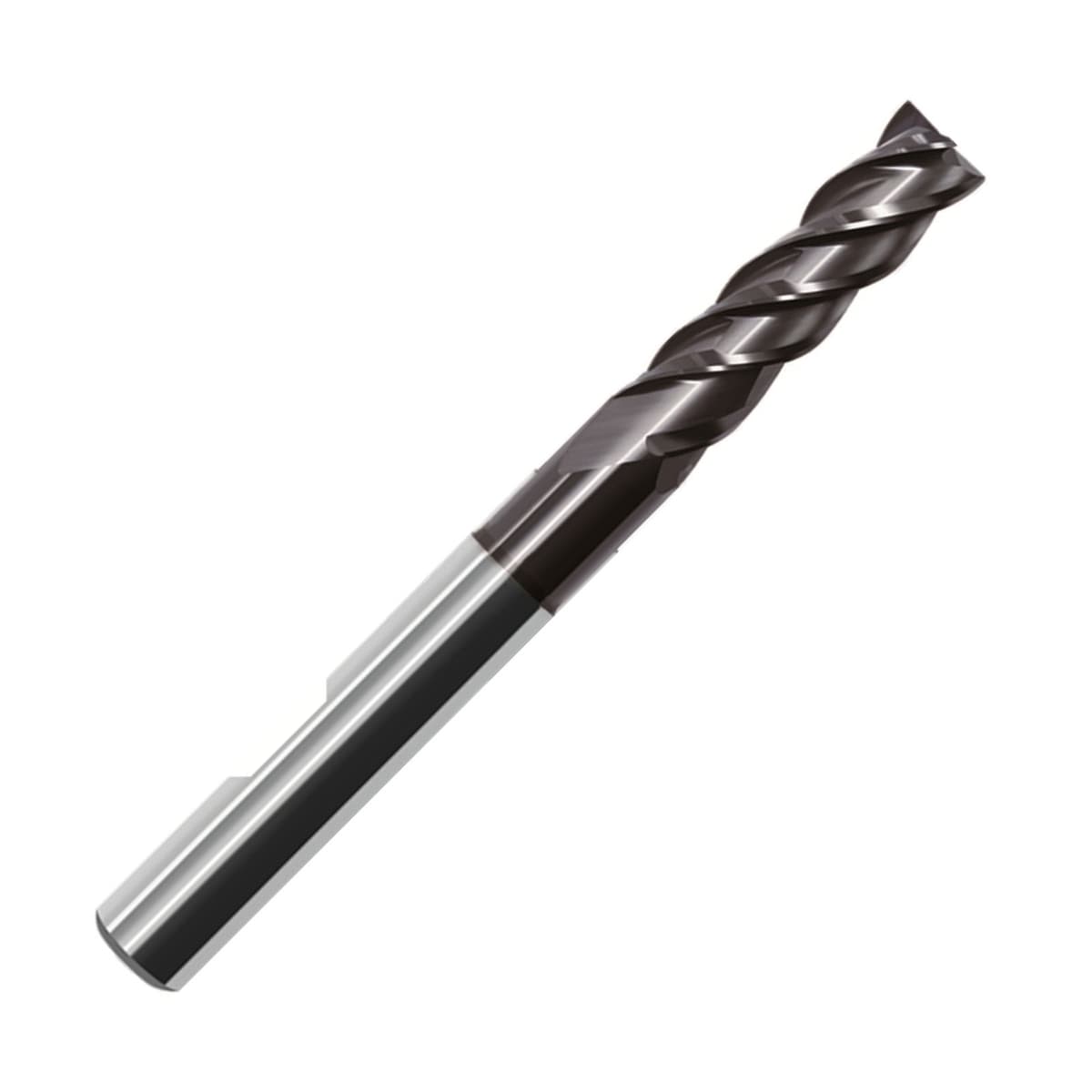

ZCC-CT UM-4ELP-W 4 Flute Long Length Weldon Shank AlCrN Coated High Performance Variable Helix Solid Carbide End Mill.
ZCC-CT UM-4ELP-W 4 Flute Long Length Weldon Shank AlCrN Coated High Performance Variable Helix Solid Carbide End Mill.

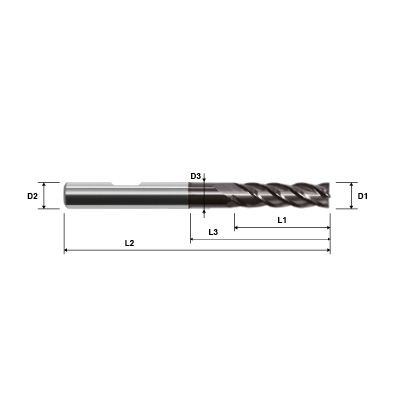

ZCC-CT UM-4ELP-W Series 4 Flute Reduced Neck AlCrN Coated High Performance Variable Helix Solid Carbide End Mill Technical Drawing.

ZCC-CT UM-4ELP-W Series 4 Flute Long Cutting Edge Weldon SHank AlCrN Coated High Performance Variable Helix Solid Carbide End Mill

Series: UM-4ELP-W

Long length Weldon shank solid carbide high performance end mills with unequal pitch for roughing and finishing of steel up to 55HrC, stainless steel and cast iron with high metal removal rate. AlCrN (Aluminium Chromium Nitride) coated for exceptional tool life, performing better than TiAlN in many dry and high speed metalcutting applications. Outstanding performance on steel, stainless steel and cast iron, suitable for hardened steel.

Features: • Optimised geometry with unequal 38 degree and 41 degree helix angles and unequal pitch. • Working processes: Square shoulder milling, groove milling, face milling, counter sinking, circular milling and centre cutting. • End mills and torus Mills. • Long Length. • Weldon Shank. • HSC/HPC machining. • AlCrN (Aluminium Chromium Nitride) coated solid carbide for exceptional tool life.

* Geometry 'A' applies to 4mm and 5mm diameters.
Description
D1
D2
L1
L2
Diameter
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: UM4ELPD100WKMG405
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 30mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4; Shaft HB; coated

List Price: £51.89
SKU: UM4ELPD120WKMG405
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 35mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4; Shaft HB; coated

List Price: £65.35
SKU: UM4ELPD140WKMG405
Diameter: 14mm
Shank Diameter: 14mm
Cutting Length: 40mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 14.0; Z=4; Shaft HB; coated

List Price: £95.26
SKU: UM4ELPD160WKMG405
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 50mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4; Shaft HB; coated

List Price: £139.22
SKU: UM4ELPD200WKMG405
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 55mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 20.0; Z=4; Shaft HB; coated

List Price: £225.96
SKU: UM4ELPD40WKMG405
Diameter: 4mm
Shank Diameter: 6mm
Overall Length: 75mm
Cutting Length: 15mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 4.0; Z=4; Shaft HB; uncoated

List Price: £25.13
SKU: UM4ELPD50WKMG405
Diameter: 5mm
Shank Diameter: 6mm
Cutting Length: 20mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 5.0; Z=4; Shaft HB; uncoated

List Price: £25.13
SKU: UM4ELPD60WKMG405
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 20mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 6.0; Z=4; Shaft HB; uncoated

List Price: £25.13
SKU: UM4ELPD80WKMG405
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 25mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 8.0; Z=4; Shaft HB; uncoated

List Price: £38.50
