ZCC-CT UM-4EL 4 Flute Long Length AlCrN Coated High Performance Variable Helix Solid Carbide End Mill.

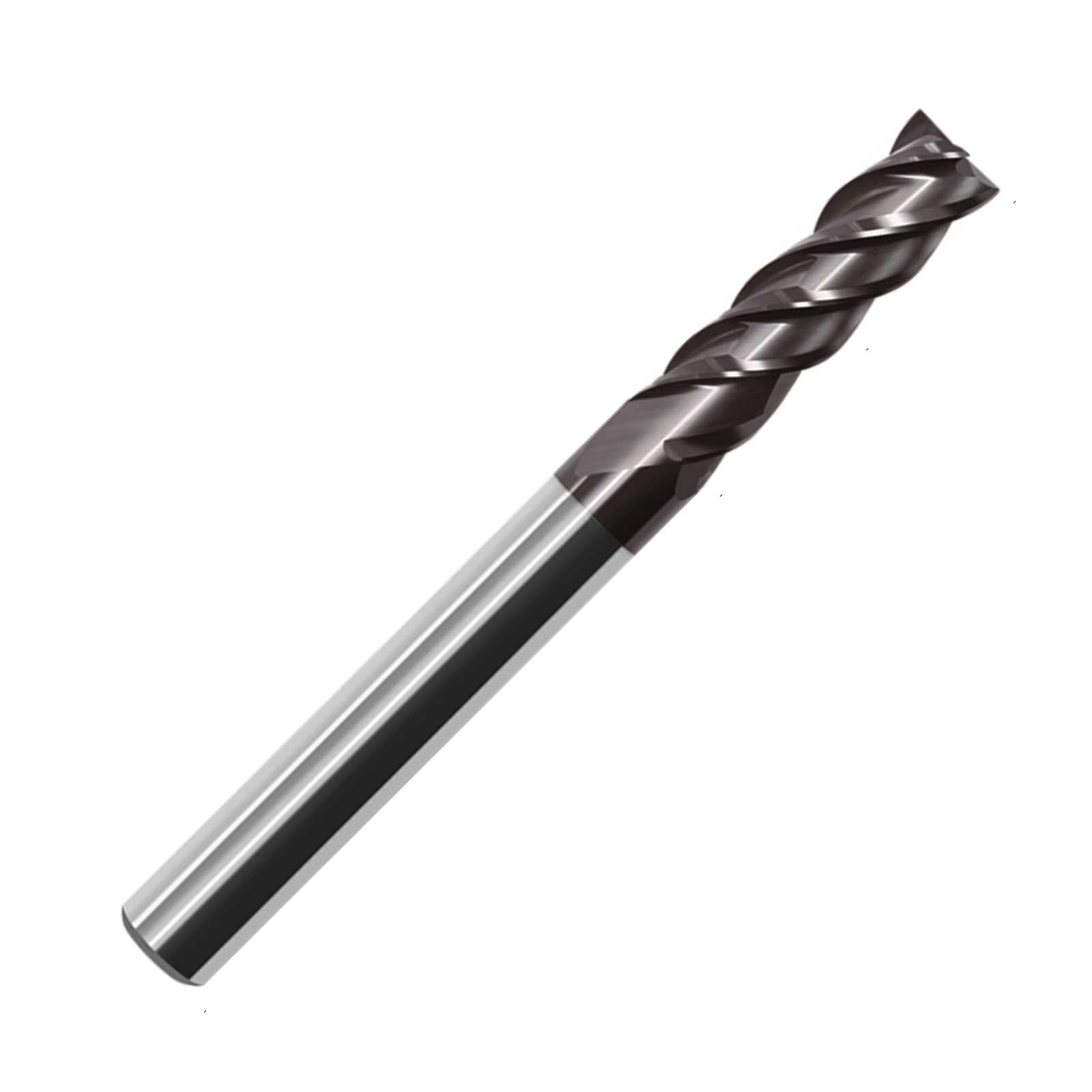

ZCC-CT UM-4EL 4 Flute Long Length AlCrN Coated High Performance Variable Helix Solid Carbide End Mill.

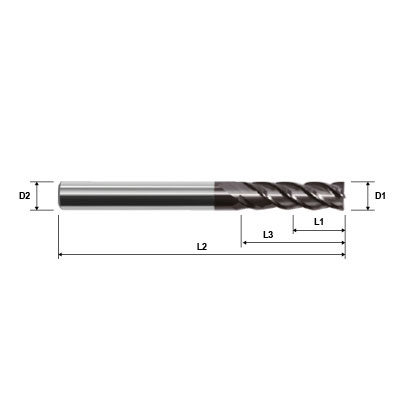

ZCC-CT UM-4EL Series 4 Flute Long Length AlCrN Coated High Performance Variable Helix Solid Carbide End Mill Technical Drawing.

ZCC-CT UM-4EL Series 4 Flute Long Length AlCrN Coated High Performance Variable Helix Solid Carbide End Mill

Series: UM-4EL

Long length solid carbide high performance end mills with unequal pitch for roughing and finishing of steel up to 55HrC, stainless steel and cast iron with high metal removal rate. AlCrN (Aluminium Chromium Nitride) coated for exceptional tool life, performing better than TiAlN in many dry and high speed metalcutting applications. Outstanding performance on steel, stainless steel and cast iron, suitable for hardened steel.

Features: • Optimised geometry with unequal 38 degree and 41 degree helix angles and unequal pitch. • Working processes: Square shoulder milling, groove milling, face milling, counter sinking, circular milling and centre cutting. • End mills and torus Mills. • Long Length. • HSC/HPC machining. • AlCrN (Aluminium Chromium Nitride) coated solid carbide for exceptional tool life.

*Geometry 'A' applies to 4mm and 5mm diameters.
Description
D1
D2
L1
L3
L2
Diameter
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Stock
Price
Add To Cart
SKU: UM4ELD100KMG405
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 15mm
Length Below Shank: 30mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4; Shaft HA; coated

List Price: £48.82
SKU: UM4ELD120KMG405
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 18mm
Length Below Shank: 35mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4; Shaft HA; coated

List Price: £60.86
SKU: UM4ELD140KMG405
Diameter: 14mm
Shank Diameter: 14mm
Cutting Length: 21mm
Length Below Shank: 40mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 14.0; Z=4; Shaft HA; coated

List Price: £85.41
SKU: UM4ELD160KMG405
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 24mm
Length Below Shank: 50mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4; Shaft HA; coated

List Price: £140.35
SKU: UM4ELD200KMG405
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 30mm
Length Below Shank: 55mm
Overall Length: 150mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 20.0; Z=4; Shaft HA; coated

List Price: £216.99
SKU: UM4ELD40KMG405
Diameter: 4mm
Shank Diameter: 6mm
Cutting Length: 6mm
Length Below Shank: 15mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 4.0; Z=4; Shaft HA; coated

List Price: £22.36
SKU: UM4ELD50KMG405
Diameter: 5mm
Shank Diameter: 6mm
Cutting Length: 7.5mm
Length Below Shank: 20mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 5.0; Z=4; Shaft HA; coated

List Price: £22.36
SKU: UM4ELD60KMG405
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 9mm
Length Below Shank: 20mm
Overall Length: 75mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 6.0; Z=4; Shaft HA; coated

List Price: £22.36
SKU: UM4ELD80KMG405
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 25mm
Overall Length: 100mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 8.0; Z=4; Shaft HA; coated

List Price: £35.45
