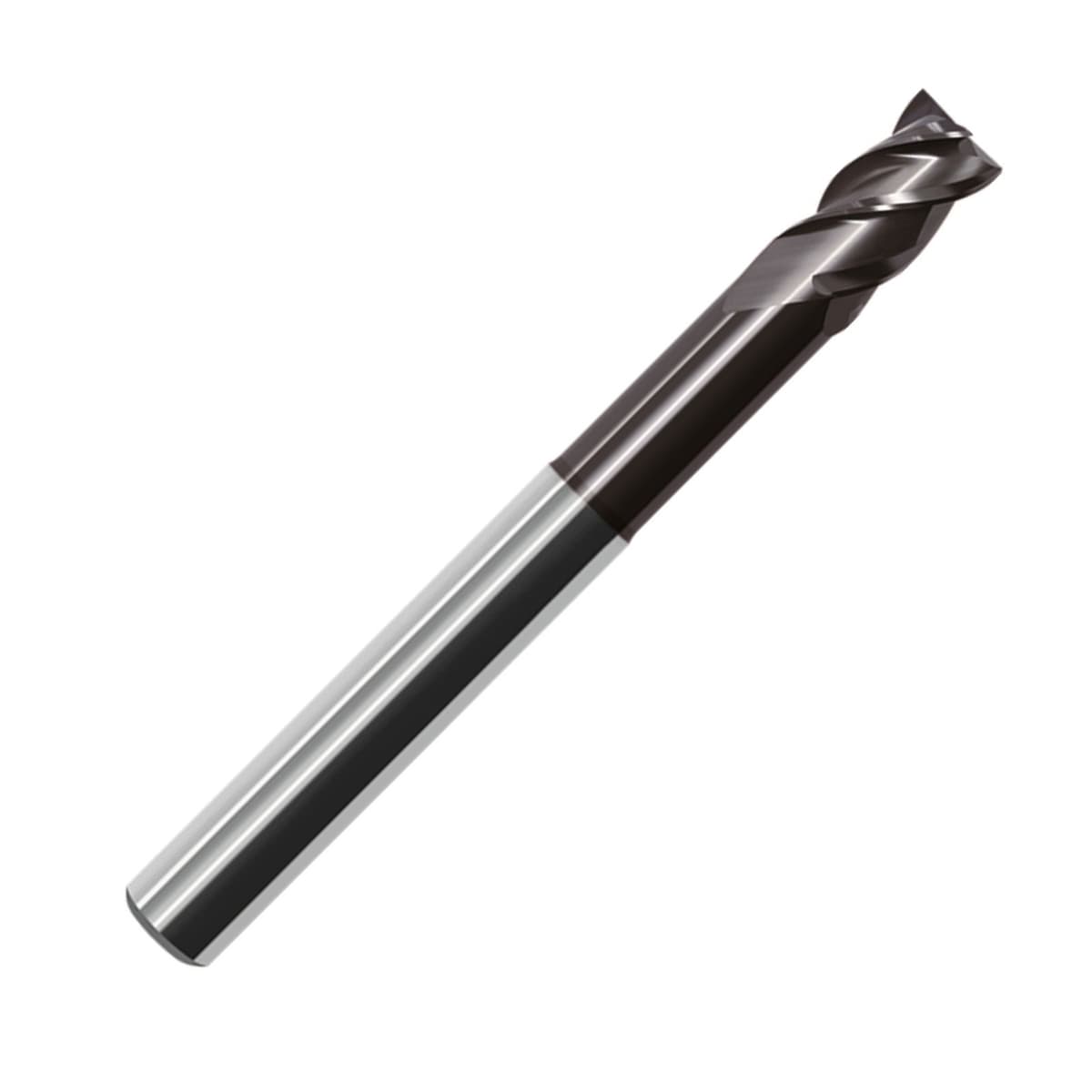

ZCC-CT UM-4EFP 4 Flute Short Cutting Edge AlCrN Coated High Performance Variable Helix Solid Carbide End Mill.
ZCC-CT UM-4EFP 4 Flute Short Cutting Edge AlCrN Coated High Performance Variable Helix Solid Carbide End Mill.
ZCC-CT UM-4EFP Series 4 Flute Short Cutting Edge AlCrN Coated High Performance Variable Helix Solid Carbide End Mill Technical Drawing.

ZCC-CT UM-4EFP Series 4 Flute Short Cutting Edge AlCrN Coated High Performance Variable Helix Solid Carbide End Mill

Series: UM-4EFP

Short cutting edge solid carbide high performance end mills with unequal pitch for roughing and finishing of steel up to 55HrC, stainless steel and cast iron with high metal removal rate. AlCrN (Aluminium Chromium Nitride) coated for exceptional tool life, performing better than TiAlN in many dry and high speed metalcutting applications. Outstanding performance on steel, stainless steel and cast iron, suitable for hardened steel.

Features: • Optimised geometry with unequal 38 degree and 41 degree helix angles and unequal pitch. • Working processes: Square shoulder milling, groove milling, face milling, counter sinking, circular milling and centre cutting. • End mills and torus Mills. • Short Cutting Edge. • Long Length. • HSC/HPC machining. • AlCrN (Aluminium Chromium Nitride) coated solid carbide for exceptional tool life.

Description
D1
D2
L1
L3
L2
Diameter
Shank Diameter
Cutting Length
Length Below Shank
Overall Length
Neck Dia
Stock
Price
Add To Cart
SKU: UM4EFPD100KMG405
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 15mm
Length Below Shank: 50mm
Overall Length: 100mm
Neck Dia: 9.6mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 10.0; Z=4; Shaft HA; coated

List Price: £47.87
SKU: UM4EFPD120KMG405
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 18mm
Length Below Shank: 50mm
Overall Length: 100mm
Neck Dia: 11.5mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 12.0; Z=4; Shaft HA; coated

List Price: £60.86
SKU: UM4EFPD160KMG405
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 24mm
Length Below Shank: 50mm
Overall Length: 150mm
Neck Dia: 15.5mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 16.0; Z=4; Shaft HA; coated

List Price: £140.35
SKU: UM4EFPD180KMG405

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 18.0; Z=4; Shaft HA; coated

List Price: £159.53
SKU: UM4EFPD200KMG405
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 30mm
Length Below Shank: 60mm
Overall Length: 150mm
Neck Dia: 19.5mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 20.0; Z=4; Shaft HA; coated

List Price: £216.99
SKU: UM4EFPD60KMG405
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 9mm
Length Below Shank: 30mm
Overall Length: 75mm
Neck Dia: 5.8mm

1-2 days
subject to

availability


subject to

availability

6MM 4 FLUTE FLATTENED END MILL WITH LONG NECK

List Price: £22.36
SKU: UM4EFPD80KMG405
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 12mm
Length Below Shank: 40mm
Overall Length: 100mm
Neck Dia: 7.8mm

1-2 days
subject to

availability


subject to

availability

HPC- Solid Carbide End Mill Ø 8.0; Z=4; Shaft HA; coated

List Price: £35.45
