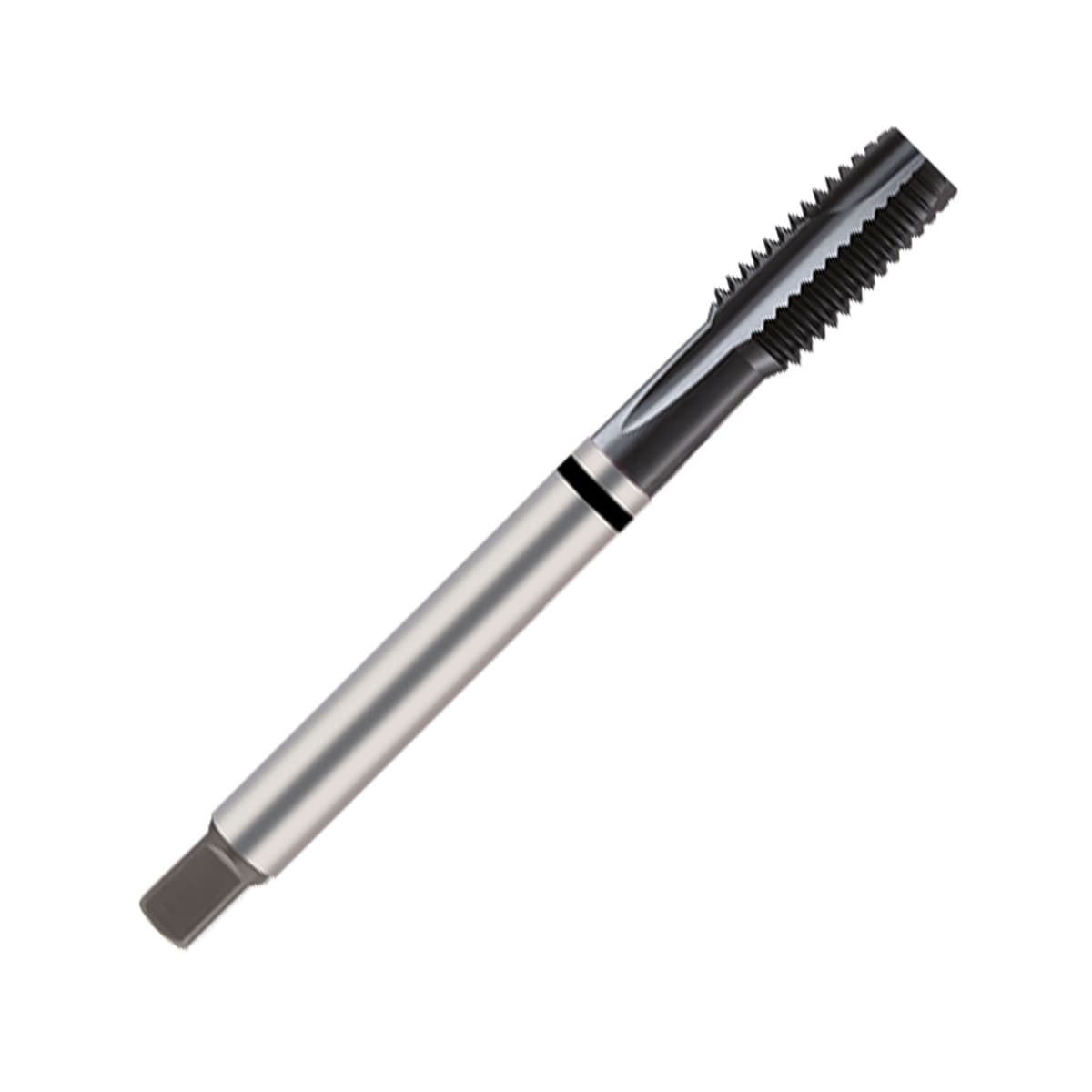

Unified Fine (UNF) Powder Metal Spiral Point Machine Tap
Series: TM9518Starting From:
£30.71 excl. VAT
£36.85 incl. VAT
£30.71 excl. VAT
£36.85 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
- This SABRE machine tap is our first choice powder metal machine tap
- The powder metal substrate together with the AlCr coating outperforms standard HSSE taps
- Unified Fine (UNF) Thread Form
- Spiral Point
- Sizes available #4 to 1"
...read more
| SKU | Size / TDZ | Pitch / TP | Thread Length / THL | Overall Length / LF | Neck Length / LU | CZCms / DRVS | No. Of Flutes / NOF | STD. / BSG | Tapping Drill / PHD | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|---|---|---|
| TM95180400 | #4 | 48 | 11 | 56 | 18 | 2.7 | 2 | DIN371 | 2.4 | £37.79 |
| TM95180500 | #5 | 44 | 11 | 56 | 18 | 2.7 | 3 | DIN371 | 2.7 | £30.71 |
| TM95180600 | #6 | 40 | 12 | 56 | 20 | 3 | 3 | DIN371 | 2.9 | £30.71 |
| TM95180800 | #8 | 36 | 13 | 63 | 21 | 3.4 | 3 | DIN371 | 3.5 | £30.82 |
| TM95181000 | #10 | 32 | 15 | 70 | 25 | 4.9 | 3 | DIN371 | 4.1 | £31.34 |
| TM95181200 | #12 | 28 | 16 | 80 | 30 | 49 | 3 | DIN371 | 4.6 | £31.55 |
| TM95189160 | 1/4" | 28 | 17 | 80 | 30 | 5.5 | 3 | DIN371 | 5.5 | £32.93 |
| TM95189200 | 5/16" | 24 | 17 | 90 | 35 | 6.2 | 3 | DIN371 | 6.9 | £36.20 |
| TM95189240 | 3/8" | 24 | 18 | 100 | 39 | 7 | 3 | DIN371 | 8.5 | £42.57 |
| TM95189280 | 7/16" | 20 | 22 | 100 | 40 | 6.2 | 3 | DIN374 | 9.9 | £51.76 |
| TM95189320 | 1/2" | 20 | 22 | 100 | 40 | 7 | 3 | DIN374 | 11.5 | £51.76 |
| TM95189360 | 9/16" | 18 | 22 | 100 | 40 | 9 | 3 | DIN374 | 12.9 | £58.69 |
| TM95189400 | 5/8" | 18 | 22 | 100 | 40 | 9 | 3 | DIN374 | 14.5 | £73.03 |
| TM95189480 | 3/4" | 16 | 25 | 110 | 44 | 11 | 3 | DIN374 | 17.5 | £106.88 |
| TM95189560 | 7/8" | 14 | 26 | 125 | 50 | 14.5 | 3 | DIN374 | 20.5 | £127.03 |
| TM95189640 | 1" | 12 | 28 | 140 | 54 | 16 | 3 | DIN374 | 23.2 | £166.25 |
