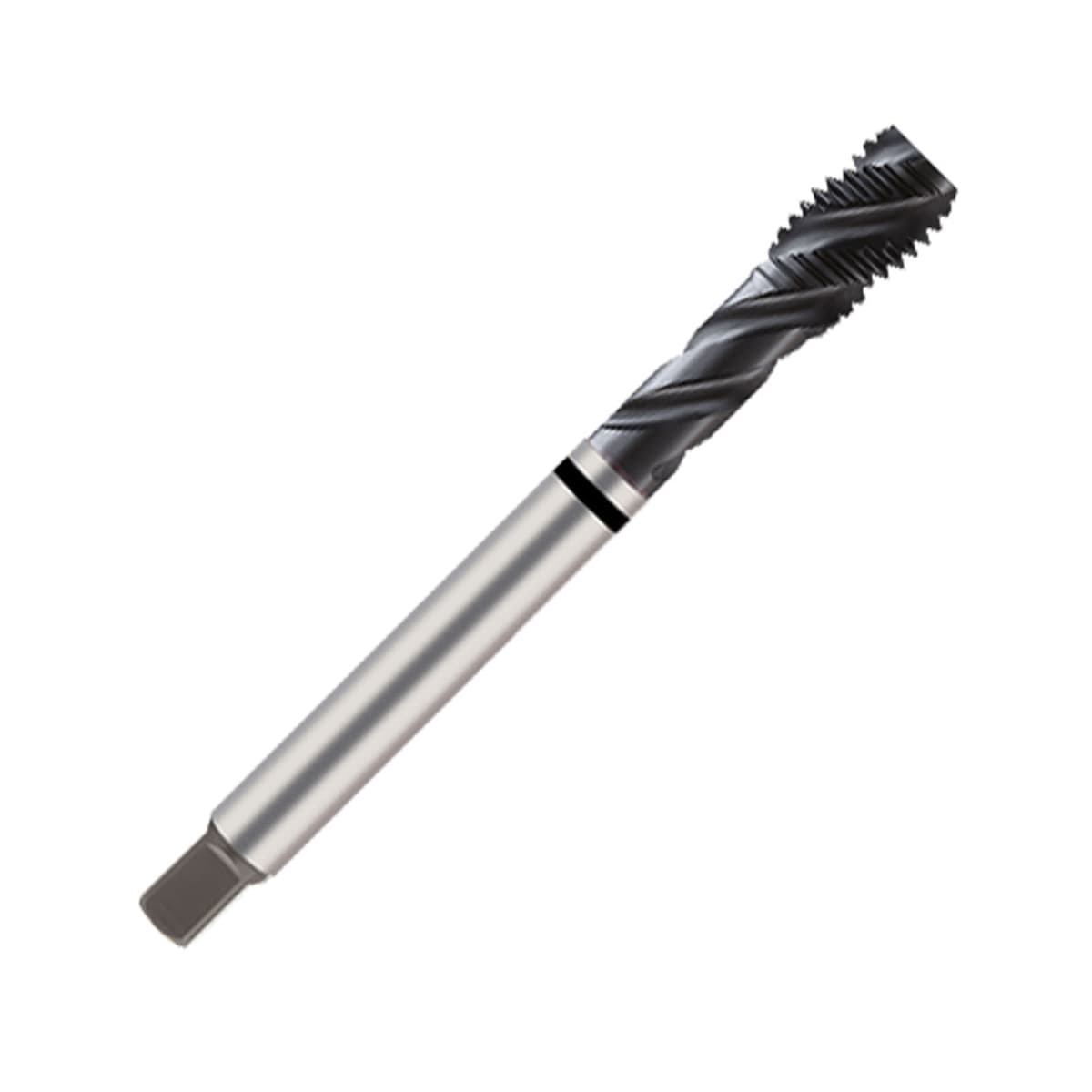

Unified Fine (UNF) Powder Metal Spiral Flute Machine Tap
Series: TM9433...15% DISCOUNTStarting From:
£30.71 excl. VAT
£36.85 incl. VAT
£30.71 excl. VAT
£36.85 incl. VAT
Offer Price From:
£26.10excl. VAT
£31.32incl. VAT
£26.10excl. VAT
£31.32incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
- This SABRE machine tap is our first choice powder metal machine tap
- The powder metal substrate together with the AlCr coating outperforms standard HSSE taps
- Unified Fine (UNF) Thread Form
- Spiral Flute
- Sizes available #4 to 1"
...read more
| SKU | Size / TDZ | Pitch / TP | Overall Length / LF | Neck Length / LU | CZCms / DRVS | No. Of Flutes / NOF | STD. / BSG | Tapping Drill / PHD | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|---|---|
| TM94330400 | #4 | 5.1 | 56 | 18 | 2.7 | 2 | DIN371 | 2.4 | £123.30£32.12 |
| TM94330500 | #5 | 5.1 | 56 | 18 | 2.7 | 3 | DIN371 | 2.7 | £100.24£26.10 |
| TM94330600 | #6 | 6.4 | 56 | 20 | 3 | 3 | DIN371 | 2.9 | £100.24£26.10 |
| TM94330800 | #8 | 6.4 | 63 | 21 | 3.4 | 3 | DIN371 | 3.5 | £100.58£26.20 |
| TM94331000 | #10 | 8.5 | 70 | 25 | 4.9 | 3 | DIN371 | 4.1 | £102.26£26.62 |
| TM94331200 | #12 | 8.5 | 80 | 30 | 4.9 | 3 | DIN371 | 4.6 | £102.94£26.80 |
| TM94339160 | 1/4" | 10.2 | 80 | 30 | 5.5 | 3 | DIN371 | 5.5 | £107.44£27.97 |
| TM94339200 | 5/16" | 10.6 | 90 | 35 | 6.2 | 3 | DIN371 | 6.9 | £118.12£30.77 |
| TM94339240 | 3/8" | 10.6 | 100 | 39 | 7 | 3 | DIN371 | 8.5 | £138.91£36.18 |
| TM94339280 | 7/16" | 12.7 | 100 | 40 | 6.2 | 3 | DIN374 | 9.9 | £168.91£44.00 |
| TM94339320 | 1/2" | 12.7 | 100 | 40 | 7 | 3 | DIN374 | 11.5 | £168.91£44.00 |
| TM94339360 | 9/16" | 14.2 | 100 | 40 | 9 | 3 | DIN374 | 12.9 | £191.50£49.89 |
| TM94339400 | 5/8" | 14.2 | 100 | 40 | 9 | 3 | DIN374 | 14.5 | £238.26£62.06 |
| TM94339480 | 3/4" | 15.9 | 110 | 44 | 11 | 4 | DIN374 | 17.5 | £348.72£90.83 |
| TM94339560 | 7/8" | 18.2 | 125 | 50 | 14.5 | 4 | DIN374 | 20.5 | £414.47£107.98 |
| TM94339640 | 1" | 21.2 | 140 | 54 | 16 | 4 | DIN374 | 23.2 | £542.47£141.31 |
