XT3 Large Digital Pistol Grip Bore Gauge Set.

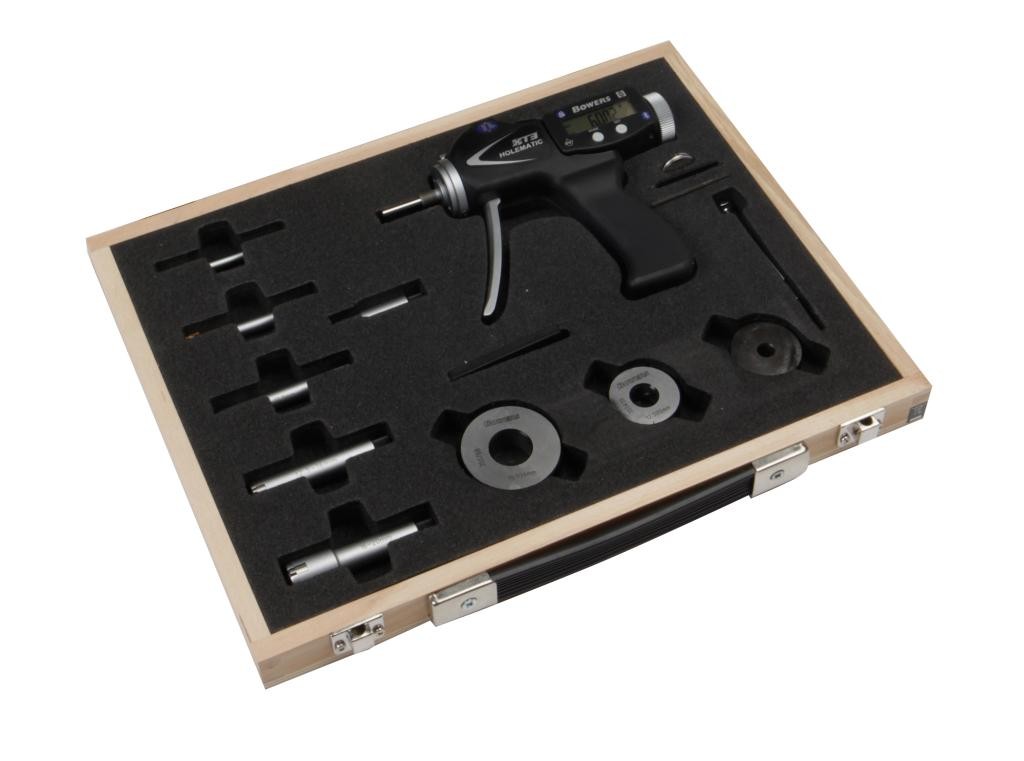

XT3 Large Digital Pistol Grip Bore Gauge Set

Series: SXTH-L
Starting From:
£1,679.50excl VAT£2,015.40 incl. VAT

View Product Variants Table

XT3 Digital Pistol Grip Bore Gauge Sets with Bluetooth SETS: Supplied with one digital display unit, heads, rings and UKAS

Bowers’ XT3 Holematic offers a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with optional built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines, slots, grooves, deep-holes and many more applications are available.

Features:

  • Ergonomic design with larger, clearer LCD swivel display
  • IP67 electronics
  • Simple 2-button operation
  • 4 preset memories
  • Proximity RS232/USB output with optional built-in Bluetooth Low Energy (BLE)
  • Bi-directional communication
  • Range 2-300mm
  • 2-6mm 2 point / 6-300mm 3 point measurement
  • Resolution 0.001mm
  • Tungsten carbide measuring faces on all 3-point heads from 12.5mm
  • Blind bore measurement from 2mm - 6mm and above 12.5mm
  • Extensions available above 6mm for deep hole measurement
  • Setting rings included with individual instruments and sets
  • UKAS certificates supplied as standard with all setting rings
  • UKAS certificates supplied as standard with all gauges
  • Serial number on all digital readouts and measuring heads
  • Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
  • Bore gauges manufactured according to DIN 863, part 4
  • Supplied in fitted wooden case
Description
Stock
Price
Add To Cart
SKU: SXTH10i-BT

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Pistol Grip Bore Gauge - Sets - 0.080-0.250"

List Price:
£1,748.00ex VAT £2,097.60 inc VAT
SKU: SXTH10i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Pistol Grip Bore Gauge - Sets - 0.080-0.250"

List Price:
£1,679.50ex VAT £2,015.40 inc VAT
SKU: SXTH10M-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Pistol Grip Bore Gauge - Large Sets - 6 - 20MM

List Price:
£1,679.50ex VAT £2,015.40 inc VAT
SKU: SXTH11i-BT

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Pistol Grip Bore Gauge - Sets - 3/4-4"

List Price:
£3,228.00ex VAT £3,873.60 inc VAT
SKU: SXTH11i-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Pistol Grip Bore Gauge - Sets - 3/4-4"

List Price:
£3,102.00ex VAT £3,722.40 inc VAT
SKU: SXTH11M-XT3

2-3 days
subject to

availability

subject to availability

**OBSOLETE** - NEW XT3 Digital Pistol Grip Bore Gauge - Sets - 20 - 100MM

List Price:
£3,102.00ex VAT £3,722.40 inc VAT
SKU: SXTH9i-BT

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Pistol Grip Bore Gauge - Sets - 4-8"

List Price:
£3,730.00ex VAT £4,476.00 inc VAT
SKU: SXTH9i-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Pistol Grip Bore Gauge - Sets - 4-8"

List Price:
£3,584.50ex VAT £4,301.40 inc VAT
SKU: SXTH9M-XT3

2-3 days
subject to

availability

subject to availability

NEW XT3 Digital Pistol Grip Bore Gauge - Sets - 100 - 200MM

List Price:
£3,584.50ex VAT £4,301.40 inc VAT
