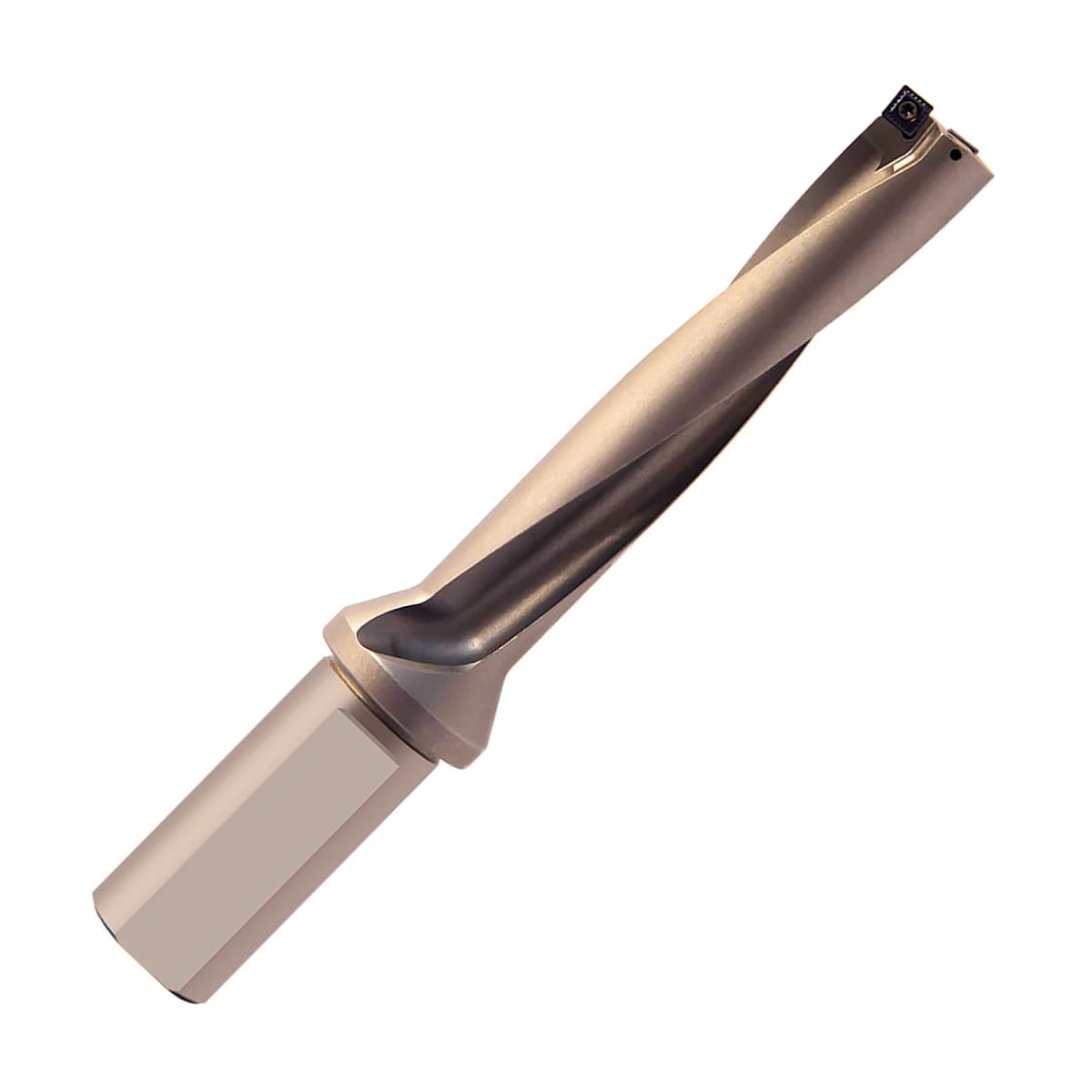

QXF 5xD Indexable Drilling System (Europa)

Series: QXF5D
Starting From:
£206.74 excl. VAT
£248.09 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

QXF 5xD Indexable Drilling System (Europa)

  • 1 insert style for the central and peripheral
  • 5xD
  • 4 cutting edges on the insert (SPMX style)
  • Inserts suitable for steel, stainless steel, cast iron, heat resistant alloys and heat resistant alloys
  • through coolant
...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDiameter / DCMax Radial Offset / OSMax diameter / Max DC Shank Size / DMMFlute Length / LUOverall Length / OAL Insert Ref / IRPrice (Ex VAT)
QXF5D130013mm0.75mm14.5mm20mm65mm137mmSPMX05£206.74
QXF5D140014mm0.6mm15.2mm20mm70mm142mmSPMX05£206.74
QXF5D150015mm0.5mm16mm20mm75mm147mmSPMX05£206.74
QXF5D160016mm0.8mm17.6mm25mm80mm158mmSPMX06£206.74
QXF5D170017mm0.75mm18.5mm25mm85mm163mmSPMX06£206.74
QXF5D180018mm0.5mm19mm25mm90mm168mmSPMX06£206.74
QXF5D190019mm0.3mm19.6mm25mm95mm173mmSPMX06£206.74
QXF5D200020mm020mm25mm100mm178mmSPMX06£215.14
QXF5D210021mm021mm25mm105mm183mmSPMX06£215.14
QXF5D220022mm1mm24mm25mm110mm188mmSPMX07£215.14
QXF5D230023mm0.75mm24.5mm25mm115mm202mmSPMX07£215.14
QXF5D240024mm0.5mm25mm32mm120mm207mmSMPX07£222.86
QXF5D250025mm0.25mm25.5mm25mm125mm203mmSPMX07£222.86
QXF5D260026mm026mm25mm130mm208mmSPMX07£222.86
QXF5D270027mm027mm25mm135mm213mmSPMX07£222.86
QXF5D280028mm1mm30mm32mm140mm227mmSPMX09£222.86
QXF5D290029mm0.75mm30.5mm32mm145mm232mmSPMX09£222.86
QXF5D300030mm0.5mm31mm32mm150mm237mmSPMX09£229.86
QXF5D310031mm0.25mm31.5mm32mm155mm242mmSPMX09£229.86
QXF5D320032mm032mm32mm160mm247mmSPMX09£229.86
QXF5D330033mm032mm32mm165mm252mmSPMX09£229.86
