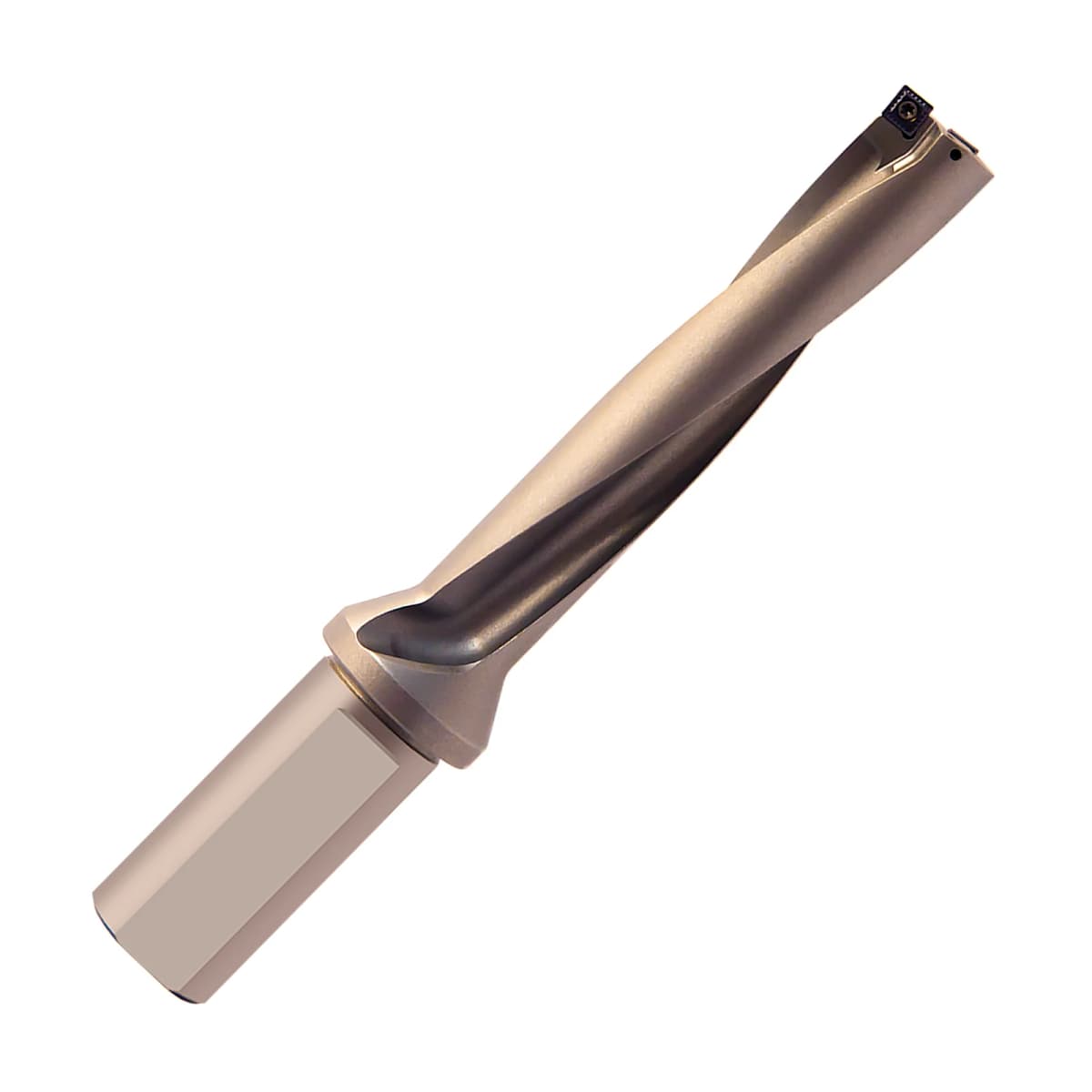

QXF 4xD Indexable Drilling System (Europa)

Series: QXF4D
Starting From:
£194.84 excl. VAT
£233.81 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

QXF 4xD Indexable Drilling System (Europa)

  • 1 insert style for the central and peripheral
  • 4xD
  • 4 cutting edges on the insert (SPMX style)
  • Inserts suitable for steel, stainless steel, cast iron, heat resistant alloys and heat resistant alloys
  • through coolant
...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDiameter / DCMax Radial Offset / OSMax diameter / Max DC Shank Size / DMMFlute Length / LUOverall Length / OAL Insert Ref / IRPrice (Ex VAT)
QXF4D130013mm0.75mm14.5mm20mm52mm124mmSPMX05£194.84
QXF4D140014mm0.6mm15.2mm20mm56mm128mmSPMX05£194.84
QXF4D150015mm0.5mm16mm20mm60mm132mmSPMX05£194.84
QXF4D160016mm0.8mm17.6mm25mm64mm142mmSPMX06£194.84
QXF4D170017mm0.75mm18.5mm25mm68mm146mmSPMX06£194.84
QXF4D180018mm0.5mm19mm25mm72mm150mmSPMX06£194.84
QXF4D190019mm0.3mm19.6mm25mm76mm154mmSPMX06£194.84
QXF4D200020mm020mm25mm80mm158mmSPMX06£202.54
QXF4D210021mm021mm25mm84mm162mmSPMX06£202.54
QXF4D220022mm1mm24mm25mm88mm166mmSPMX07£202.54
QXF4D230023mm0.75mm24.5mm25mm92mm170mmSPMX07£202.54
QXF4D240024mm0.5mm25mm25mm96mm174mmSPMX07£211.64
QXF4D250025mm0.25mm25.5mm25mm100mm178mmSPMX07£211.64
QXF4D260026mm036mm25mm104mm182mmSPMX07£211.64
QXF4D270027mm027mm25mm108mm186mmSPMX07£211.64
QXF4D280028mm1mm30mm25mm112mm190mmSPMX09£211.64
QXF4D290029mm0.75mm30.5mm25mm116mm194mmSPMX09£211.64
QXF4D300030mm0.5mm31mm32mm120mm207mmSPMX09£220.06
QXF4D310031mm0.25mm31.5mm32mm124mm211mmSPMX09£220.06
QXF4D320032mm032mm32mm128mm215mmSPMX09£220.06
QXF4D330033mm033mm32mm132mm219mmSPMX09£220.06
QXF4D340034mm1mm36mm32mm135mm223mmSPMX11£220.06
QXF4D350035mm0.75mm36.5mm32mm140mm227mmSPMX11£220.06
QXF4D360036mm0.6mm37.2mm32mm144mm231mmSPMX11£220.06
QXF4D370037mm0.5mm38mm32mm148mm235mmSPMX11£220.06
QXF4D380038mm0.25mm38.5mm32mm152mm239mmSPMX11£220.06
QXF4D390039mm039mm32mm156mm243mmSPMX11£220.06
QXF4D400040mm040mm32mm160mm247mmSPMX11£220.06
