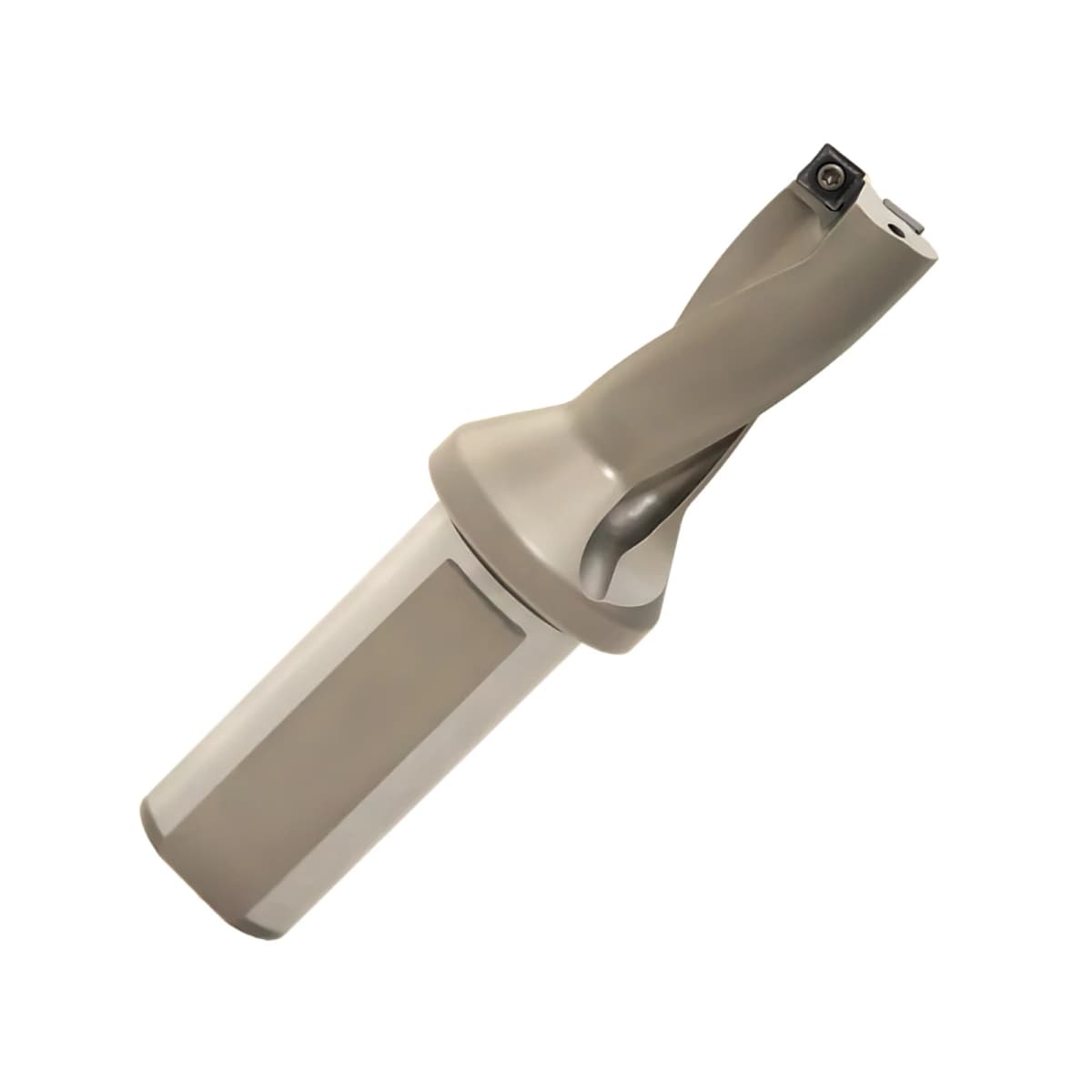

QXF 3xD Indexable Drilling System (Europa)

Series: QXF3D
Starting From:
£127.54 excl. VAT
£153.05 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

QXF 3xD Indexable Drilling System (Europa)

  • 1 insert style for the central and peripheral
  • 3xD
  • 4 cutting edges on the insert (SPMX style)
  • Inserts suitable for steel, stainless steel, cast iron, heat resistant alloys and heat resistant alloys
  • through coolant
...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUDiameter / DCMax Radial Offset / OSMax diameter / Max DC Shank Size / DMMFlute Length / LUOverall Length / OAL Insert Ref / IRPrice (Ex VAT)
QXF3D130013mm0.75mm14.5mmShank Size39mm111mmSPMX05£127.54
QXF3D135013.5mm0.75mm15mmDMM39mm111mmSPMX05£127.54
QXF3D140014mm0.6mm15.2mm20mm42mm114mmSPMX05£127.54
QXF3D145014.5mm0.6mm15.7mm20mm42mm114mmSPMX05£127.54
QXF3D150015mm0.5mm16mm20mm45mm117mmSPMX05£127.54
QXF3D155015.5mm0.9mm17.3mm20mm45mm117mmSPMX06£127.54
QXF3D160016mm0.8mm17.6mm25mm48mm126mmSPMX06£127.54
QXF3D165016.5mm0.8mm18.1mm25mm48mm126mmSPMX06£127.54
QXF3D170017mm0.75mm18.5mm25mm51mm129mmSPMX06£127.54
QXF3D175017.5mm0.75mm19mm25mm51mm129mmSPMX06£127.54
QXF3D180018mm0.5mm19mm25mm54mm132mmSPMX06£127.54
QXF3D185018.5mm0.5mm19.5mm25mm54mm132mmSPMX06£127.54
QXF3D190019mm0.3mm19.6mm25mm57mm135mmSPMX06£127.54
QXF3D195019.5mm0.3mm20.1mm25mm57mm135mmSPMX06£127.54
QXF3D200020mm020mm25mm60mm138mmSPMX06£133.16
QXF3D205020.5mm020.5mm25mm60mm138mmSPMX06£133.16
QXF3D210021mm021mm25mm63mm141mmSPMX06£133.16
QXF3D215021.5mm021.5mm25mm63mm141mmSPMX06£133.16
QXF3D220022mm1mm24mm25mm66mm144mmSPMX07£133.16
QXF3D225022.5mm1mm24mm25mm66mm144mmSPMX07£133.16
QXF3D230023mm0.75mm24.5mm25mm69mm147mmSPMX07£133.16
QXF3D235023.5mm0.75mm25mm25mm69mm147mmSPMX07£133.16
QXF3D240024mm0.5mm25mm25mm72mm150mmSPMX07£137.36
QXF3D245024.5mm0.5mm25mm25mm72mm150mmSPMX07£137.36
QXF3D250025mm0.25mm25.5mm25mm75mm153mmSPMX07£137.36
QXF3D255025.5mm0.25mm26mm25mm75mm153mmSPMX07£137.36
QXF3D260026mm026mm25mm78mm156mmSPMX07£137.36
QXF3D265026.5mm026.5mm25mm78mm156mmSPMX07£137.36
QXF3D270027mm027mm25mm81mm159mmSPMX07£137.36
QXF3D275027.5mm027.5mm25mm81mm159mmSPMX07£137.36
QXF3D280028mm1mm30mm25mm84mm162mmSPMX09£137.36
QXF3D285028.5mm1mm30.5mm25mm84mm162mmSPMX09£137.36
QXF3D290029mm0.75mm30.5mm25mm87mm165mmSPMX09£137.36
QXF3D295029.5mm0.75mm31mm25mm87mm165mmSPMX09£137.36
QXF3D300030mm0.5mm31mm25mm90mm177mmSPMX09£141.56
QXF3D305030.5mm0.5mm31.5mm25mm90mm177mmSPMX09£141.56
QXF3D310031mm0.25mm31.5mm32mm93mm180mmSPMX09£141.56
QXF3D315031.5mm0.25mm32mm32mm93mm180mmSPMX09£141.56
QXF3D320032mm032mm32mm96mm183mmSPMX09£141.56
QXF3D325032.5mm032.5mm32mm96mm183mmSPMX09£141.56
QXF3D330033mm033mm32mm99mm186mmSPMX09£141.56
QXF3D340034mm1mm36mm32mm102mm189mmSPMX11£141.56
QXF3D350035mm0.75mm36.5mm32mm105mm192mmSPMX11£141.56
QXF3D360036mm0.6mm37.2mm32mm108mm195mmSPMX11£141.56
QXF3D370037mm0.5mm38mm32mm111mm198mmSPMX11£141.56
QXF3D380038mm0.25mm38.5mm32mm114mm201mmSPMX11£141.56
QXF3D390039mm039mm32mm117mm204mmSPMX11£141.56
QXF3D400040mm040mm32mm120mm207mmSPMX11£141.56
QXF3D410041mm041mm32mm123mm210mmSPMX11£156.28
QXF3D420042mm1.2mm44.4mm32mm126mm213mmSPMX14£156.28
QXF3D430043mm1mm45mm32mm129mm216mmSPMX14£156.28
QXF3D440044mm0.8mm45.6mm40mm132mm219mmSPMX14£156.28
QXF3D450045mm0.6mm46.2mm40mm135mm237mmSPMX14£164.70
QXF3D460046mm0.4mm46.8mm40mm138mm240mmSPMX14£174.50
QXF3D470047mm0.2mm47.4mm40mm141mm243mmSPMX14£182.92
QXF3D480048mm048mm40mm144mm246mmSPMX14£192.02
QXF3D490049mm049mm40mm147mm249mmSPMX14£201.14
QXF3D500050mm050mm40mm150mm252mmSPMX14£219.36
