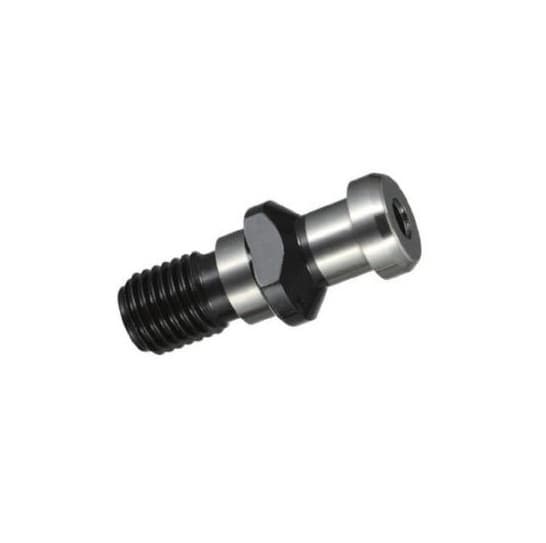

DIN69872 (SK30-SK40-SK50) Pull Stud
Product image

DIN69872 (SK30 / SK40 / SK50) Standard Type Pull Stud

Series: PS-SK...Buy 2 Get 1 FREE
Starting From:
£4.65 excl. VAT
£5.58 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

Standard type pull studs for use with all DIN 69871 (SK30, SK40 and SK50) spindle tooling systems. Pull studs, also referred to as retention knobs, are the link between the machine drawbar and the toolholder. Given that the pulling forces within certain spindle tooling systems can reach up to 3000 daN, it is essential to use pull studs made of high-quality materials such as those found below.

Features:
  • Available in all standard angles
  • Hardened to prevent breakage from small shocks.
  • Standard type
  • In stock for next day delivery
...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKU__EMPTY / M__EMPTY_1 / D__EMPTY_2 / D1__EMPTY_3 / L__EMPTY_4 / L1__EMPTY_5 / APrice (Ex VAT)
PS-69872-30M1217mm13mm44mm24mm15 degree£4.65
PS-69872-40M1623mm19mm54mm26mm15 degree£6.74
PS-69872-50M2436mm28mm74mm34mm15 degree£10.18
