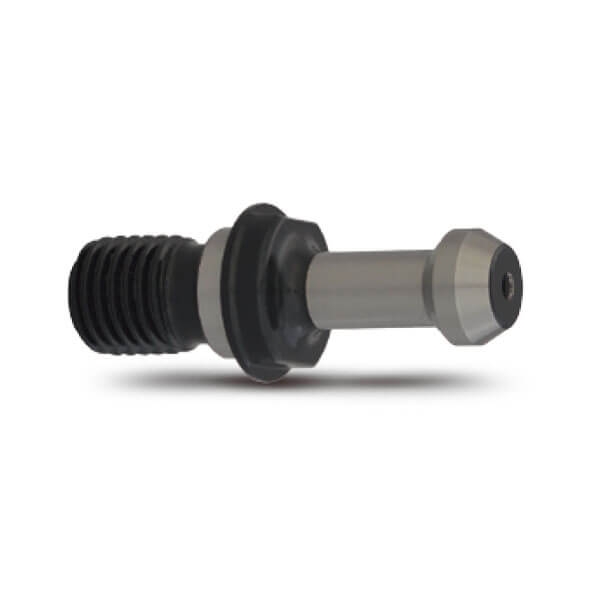

BT MAS (BT30 / BT40 / BT50) Through Coolant Pull Stud
Series: PS-BT-TC...Buy 2 Get 1 FREEStarting From:
£4.65 excl. VAT
£5.58 incl. VAT
£4.65 excl. VAT
£5.58 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
Through coolant type pull studs for use with all BT MAS (BT30, BT40 and BT50) spindle tooling systems. Pull studs, also referred to as retention knobs, are the link between the machine drawbar and the toolholder. Given that the pulling forces within certain spindle tooling systems can reach up to 3000 daN, it is essential to use pull studs made of high-quality materials such as those found below.
Features:- Available in all standard angles
- Hardened to prevent breakage from small shocks.
- Through coolant type
- In stock for next day delivery
...read more
| SKU | __EMPTY / M | __EMPTY_1 / D | __EMPTY_2 / D1 | __EMPTY_3 / L | __EMPTY_4 / L1 | __EMPTY_5 / A | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|
| PS-BT40-45B | M16 | 23mm | 15mm | 60mm | 35mm | 45 degree | £6.74 |
| PS-BT50-45B | M24 | 38mm | 23mm | 85mm | 45mm | 45 degree | £10.18 |
| PS-BT30-45B | M12 | 16.5mm | 11mm | 43mm | 23mm | 45 degree | £4.65 |
