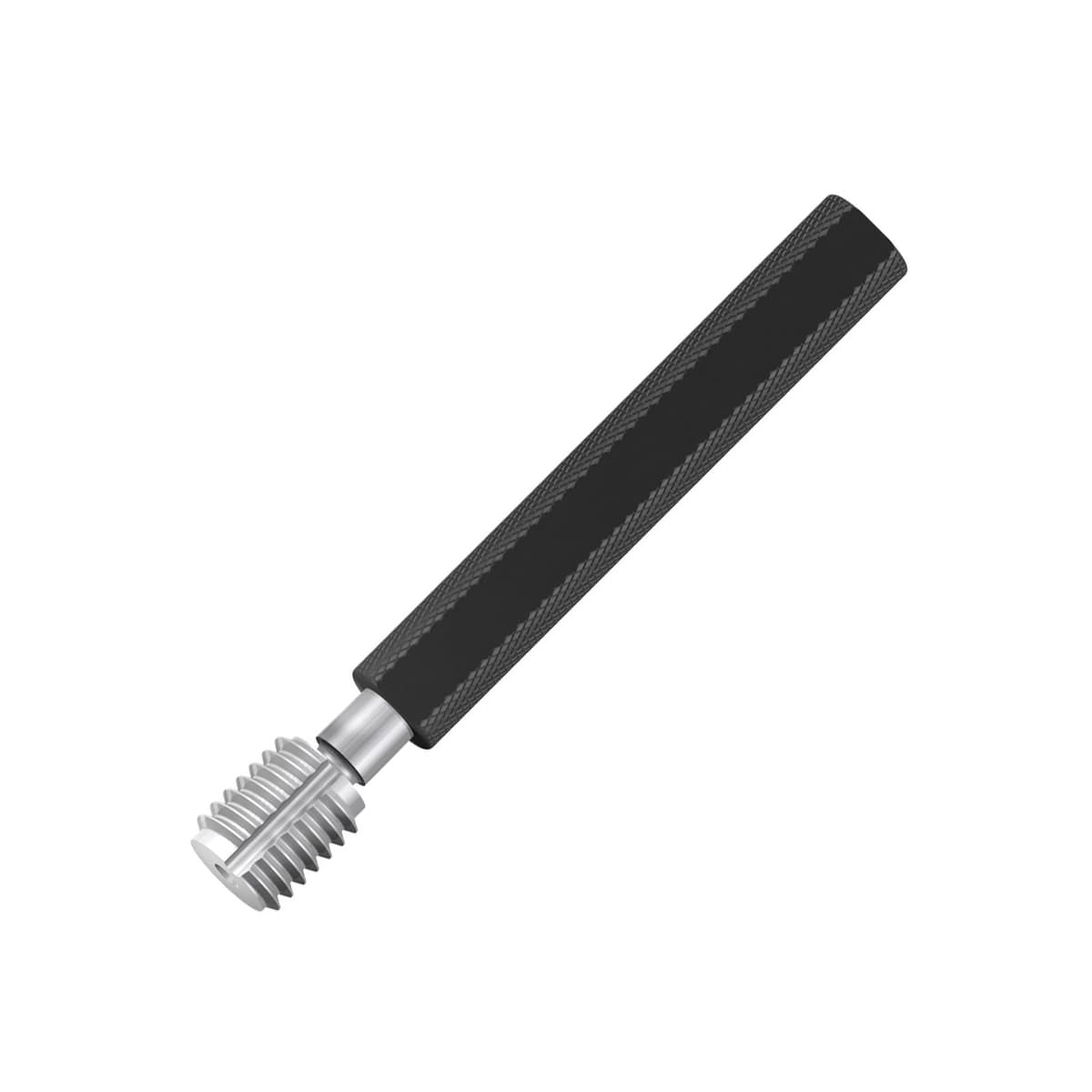

EMUGE Metric Coarse Go Thread Plug Gauge

EMUGE Metric Coarse Go Thread Plug Gauge

Series: L0120100-M
Starting From:
£47.60 excl. VAT
£57.12 incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

EMUGE Metric Coarse Go Thread Plug Gauge

  • Manufactured from high quality aged gauge steel
  • 6H Tolerance
  • All gauges are subject to 100% inspection
  • DIN2281
  • Gauges can be supplied with DakkS calibration certificates on request
...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUNominal Diameter (mm)Pitch (mm)TolerancePrice (Ex VAT)
L0120100.00101mm0.25mm5H£110.20
L0120100.00111.1mm0.25mm5H£166.60
L0120100.00141.4mm0.3mm5H£94.50
L0120100.00161.6mm0.35mm6H£87.00
L0120100.00202mm0.4mm6H£79.20
L0120100.00252.5mm0.45mm6H£66.50
L0120100.00303mm0.5mm6H£55.90
L0120100.00404mm0.7mm6H£52.00
L0120100.00505mm0.8mm6H£49.40
L0120100.00606mm1mm6H£47.60
L0120100.00707mm1mm6H£49.40
L0120100.00808mm1.25mm6H£49.40
L0120100.010010mm1.5mm6H£53.60
L0120100.011212mm1.75mm6H£57.70
L0120100.011414mm2mm6H£60.40
L0120100.011616mm2mm6H£66.50
L0120100.011818mm2.5mm6H£70.70
L0120100.012020mm2.5mm6H£77.30
L0120100.012424mm3mm6H£92.10
L0120100.013030mm3.5mm6H£113.20
L0120100.013636mm4mm6H£135.10
L0120100.014242mm4.5mm6H£159.40
L0120100.014545mm4.5mm6H£171.40
L0120100.014848mm5mm6H£187.60
L0120100.015252mm5mm6H£198.40
L0120100.015656mm5.5mm6H£221.30
L0120100.016060mm5.5mm6H£231.20
L0120100.016464mm6mm6H£258.20
L0120100.016868mm6mm6H£274.90
