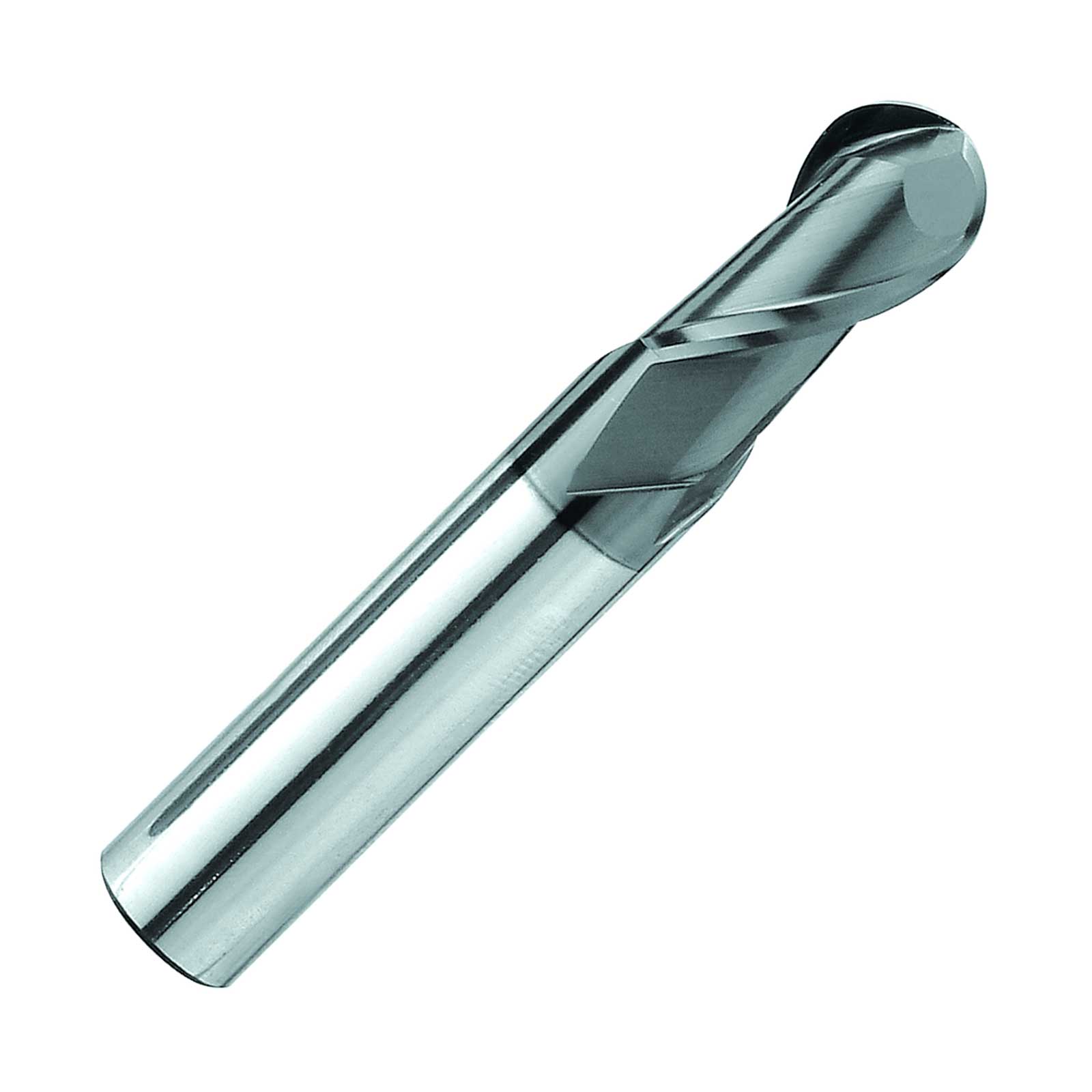

Max-Mill Coated Carbide 2 Flute Ball Nose Long Length End Mill.
Max-Mill Coated Carbide 2 Flute Ball Nose Long Length End Mill.

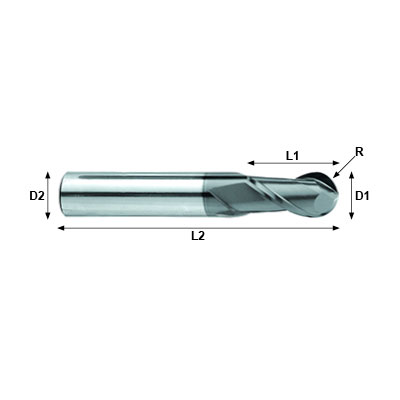

NANO-MILL Max-Mill JKB Series Coated Carbide 2 Flute Ball Nose Long Length End Mill 150mm OAL Technical Drawing.

NANO-MILL Max-Mill JKB Series Coated Carbide 2 Flute Ball Nose Long Length End Mill 150mm OAL

Series: JKB**02
Starting From:
£33.65excl VAT£40.38 incl. VAT

View Product Variants Table
Max-Mill Coated Carbide 2 Flute Extra Long Length Ball Nose End Mill from Nano-Mill is a general purpose cutter, ideal for cutting carbon steel, high speed steel, stainless steel, alloy, inconel and titanium. MAX-MILL cutters cut up to 55 HRC, and can be used wet or dry to increase tool life. Nano-Mill was established in 2000 and specialise in manufacturing of high quality carbide cutting tools using the highest grades of carbide from Germany, produced by modern Swiss CNC grinding machines
...read more
Description
D1
R
D2
L1
L2
Diameter
Radius
Shank Diameter
Cutting Length
Overall Length
Price
(ex vat)
Diameter: 6mm
Radius: 3mm
Shank Diameter: 6mm
Cutting Length: 12mm
Overall Length: 150mm
£33.65

7-10 days
subject to

availability

subject to availability
Diameter: 8mm
Radius: 4mm
Shank Diameter: 8mm
Cutting Length: 16mm
Overall Length: 150mm
£54.35

7-10 days
subject to

availability

subject to availability
Diameter: 10mm
Radius: 5mm
Shank Diameter: 10mm
Cutting Length: 20mm
Overall Length: 150mm
£76.63

7-10 days
subject to

availability

subject to availability
Diameter: 12mm
Radius: 6mm
Shank Diameter: 12mm
Cutting Length: 24mm
Overall Length: 150mm
£102.11

7-10 days
subject to

availability

subject to availability
Diameter: 16mm
Radius: 8mm
Shank Diameter: 16mm
Cutting Length: 32mm
Overall Length: 150mm
£178.50

7-10 days
subject to

availability

subject to availability
Diameter: 20mm
Radius: 10mm
Shank Diameter: 20mm
Cutting Length: 40mm
Overall Length: 150mm
£238.07

7-10 days
subject to

availability

subject to availability
Diameter: 25mm
Radius: 12.5mm
Shank Diameter: 25mm
Cutting Length: 40mm
Overall Length: 150mm
£263.09

7-10 days
subject to

availability

subject to availability

Product Information

Max-Mill Coated Carbide 2 Flute Extra Long Length Ball Nose End Mill from Nano-Mill is a general purpose cutter, ideal for cutting carbon steel, high speed steel, stainless steel, alloy, inconel and titanium. MAX-MILL cutters cut up to 55 HRC, and can be used wet or dry to increase tool life. Nano-Mill was established in 2000 and specialise in manufacturing of high quality carbide cutting tools using the highest grades of carbide from Germany, produced by modern Swiss CNC grinding machines

Specifications

Category:Milling Cutters
Category:Milling Tools
Application:General Purpose
Application:Steel
Application:Hardened Steel
Brand:Nano-Mill
No. Flutes:2 Flute
Profile:Ball Nose
Length:Long Length
Range:Max-Mill
