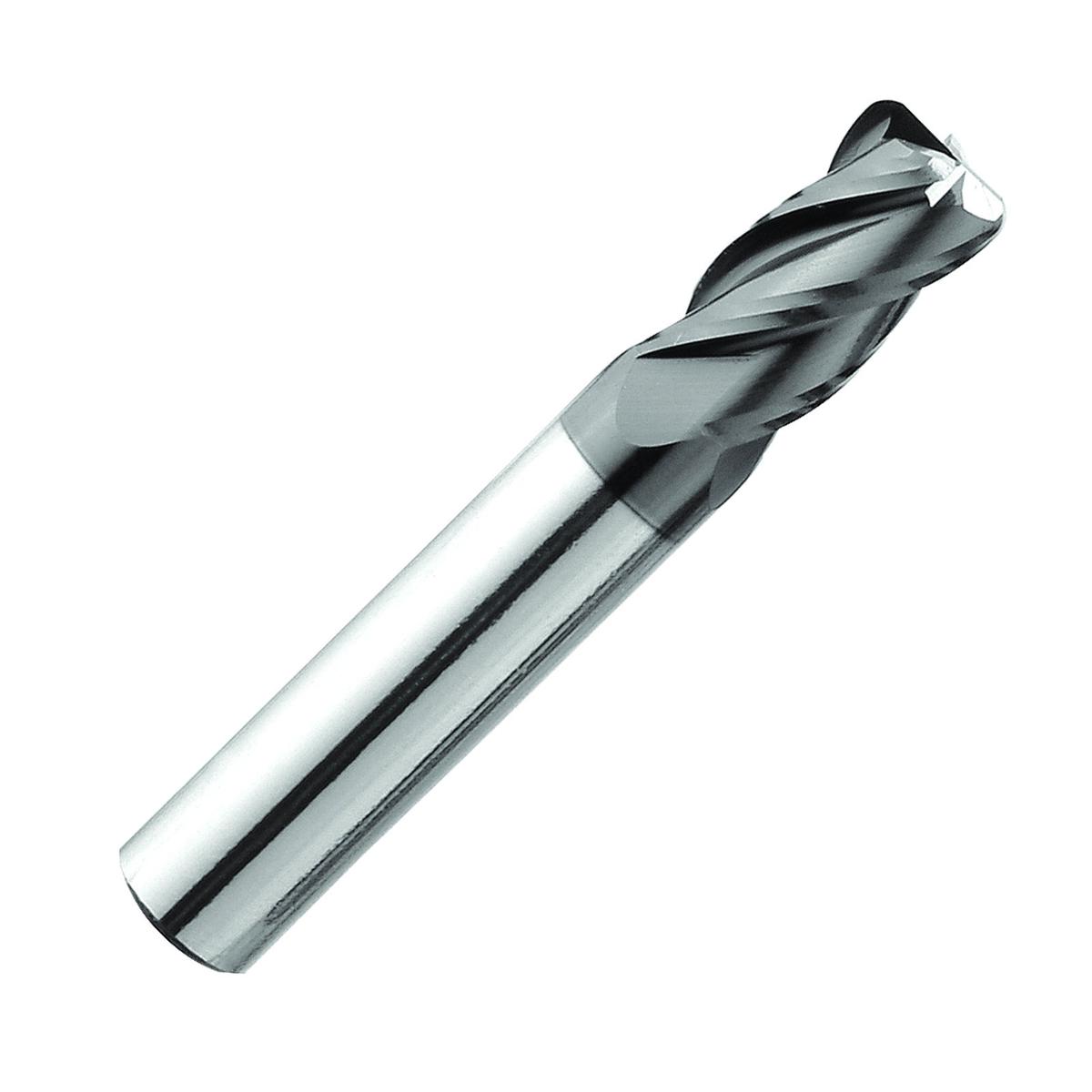

Max-Mill Coated Carbide 4 Flute Corner Radius End Mill.
Max-Mill Coated Carbide 4 Flute Corner Radius End Mill.
NANO-MILL Max-Mill JER Series Coated Carbide 4 Flute Corner Radius End Mill Technical Drawing.

NANO-MILL Max-Mill JER Series Coated Carbide 4 Flute Corner Radius End Mill

Series: JER****
Starting From:
£9.94excl VAT£11.928 incl. VAT

View Product Variants Table

Max-Mill Coated Carbide 4 Flute Corner Radius End Mill from Nano-Mill is a general purpose cutter, ideal for cutting carbon steel, high speed steel, stainless steel, alloy, inconel and titanium. MAX-MILL cutters cut up to 55 HRC, and can be used wet or dry to increase tool life.

Nano-Mill was established in 2000 and specialise in manufacturing of high quality carbide cutting tools using the highest grades of carbide from Germany, produced by modern Swiss CNC grinding machines.

Description
D1
R
D2
L1
L2
Diameter
Radius
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: JER0102
Diameter: 1mm
Radius: 0.2mm
Shank Diameter: 4mm
Cutting Length: 2mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 1x4xR0.2x2x50

List Price:
£9.94ex VAT £11.93 inc VAT
SKU: JER0202
Diameter: 2mm
Radius: 0.2mm
Shank Diameter: 4mm
Cutting Length: 4mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 2x4xR0.2x4x50

List Price:
£10.83ex VAT £13.00 inc VAT
SKU: JER0205
Diameter: 2mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 4mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 2x4xR0.5x4x50

List Price:
£10.83ex VAT £13.00 inc VAT
SKU: JER0252
Diameter: 2.5mm
Radius: 0.2mm
Shank Diameter: 4mm
Cutting Length: 5mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 2x4xR0.2x5x50

List Price:
£10.83ex VAT £13.00 inc VAT
SKU: JER0255
Diameter: 2.5mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 5mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 2x4xR0.5x5x50

List Price:
£10.83ex VAT £13.00 inc VAT
SKU: JER0302
Diameter: 3mm
Radius: 0.2mm
Shank Diameter: 4mm
Cutting Length: 6mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 3x4xR0.2x6x50

List Price:
£10.83ex VAT £13.00 inc VAT
SKU: JER0305
Diameter: 3mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 6mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 3x4xR0.5x6x50

List Price:
£10.83ex VAT £13.00 inc VAT
SKU: JER0310
Diameter: 3mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 6mm
Overall Length: 50mm
In Stock
Get it on Wed, 25th May

4 Flutes Corner Radius End Mills 3x4xR1x6x50

List Price:
£10.83ex VAT £13.00 inc VAT
SKU: JER0402
Diameter: 4mm
Radius: 0.2mm
Shank Diameter: 4mm
Cutting Length: 8mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 4x4xR0.2x8x50

List Price:
£10.83ex VAT £13.00 inc VAT
SKU: JER0405
Diameter: 4mm
Radius: 0.5mm
Shank Diameter: 4mm
Cutting Length: 8mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 4x4xR0.5x8x50

List Price:
£10.83ex VAT £13.00 inc VAT
SKU: JER0410
Diameter: 4mm
Radius: 1mm
Shank Diameter: 4mm
Cutting Length: 8mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 4x4xR1x8x50

List Price:
£10.83ex VAT £13.00 inc VAT
SKU: JER0505
Diameter: 5mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 10mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 5x6xR0.5x10x50

List Price:
£13.37ex VAT £16.04 inc VAT
SKU: JER0510
Diameter: 5mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 10mm
Overall Length: 50mm
In Stock
Get it on Wed, 25th May

4 Flutes Corner Radius End Mills 5x6xR1x10x50

List Price:
£13.37ex VAT £16.04 inc VAT
SKU: JER0602
Diameter: 6mm
Radius: 0.2mm
Shank Diameter: 6mm
Cutting Length: 12mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 6x6xR0.2x12x50

List Price:
£14.64ex VAT £17.57 inc VAT
SKU: JER0605
Diameter: 6mm
Radius: 0.5mm
Shank Diameter: 6mm
Cutting Length: 12mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 6x6xR0.5x12x50

List Price:
£14.64ex VAT £17.57 inc VAT
SKU: JER0610
Diameter: 6mm
Radius: 1mm
Shank Diameter: 6mm
Cutting Length: 12mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 6x6xR1x12x50

List Price:
£14.64ex VAT £17.57 inc VAT
SKU: JER0615
Diameter: 6mm
Radius: 1.5mm
Shank Diameter: 6mm
Cutting Length: 12mm
Overall Length: 50mm
In Stock
Get it on Wed, 25th May

4 Flutes Corner Radius End Mills 6x6xR1.5x12x50

List Price:
£14.64ex VAT £17.57 inc VAT
SKU: JER0620
Diameter: 6mm
Radius: 2mm
Shank Diameter: 6mm
Cutting Length: 12mm
Overall Length: 50mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 6x6xR2x12x50

List Price:
£14.64ex VAT £17.57 inc VAT
SKU: JER0805
Diameter: 8mm
Radius: 0.5mm
Shank Diameter: 8mm
Cutting Length: 16mm
Overall Length: 60mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 8x8xR0.5x16x60

List Price:
£21.53ex VAT £25.84 inc VAT
SKU: JER0810
Diameter: 8mm
Radius: 1mm
Shank Diameter: 8mm
Cutting Length: 16mm
Overall Length: 60mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 8x8xR1x16x60

List Price:
£21.53ex VAT £25.84 inc VAT
SKU: JER0820
Diameter: 8mm
Radius: 2mm
Shank Diameter: 8mm
Cutting Length: 16mm
Overall Length: 60mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 8x8xR2x16x75

List Price:
£21.53ex VAT £25.84 inc VAT
SKU: JER1005
Diameter: 10mm
Radius: 0.5mm
Shank Diameter: 10mm
Cutting Length: 20mm
Overall Length: 75mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 10x10xR0.5x20x75

List Price:
£32.64ex VAT £39.17 inc VAT
SKU: JER1010
Diameter: 10mm
Radius: 1mm
Shank Diameter: 10mm
Cutting Length: 20mm
Overall Length: 75mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 10x10xR1x20x75

List Price:
£32.64ex VAT £39.17 inc VAT
SKU: JER1020
Diameter: 10mm
Radius: 2mm
Shank Diameter: 10mm
Cutting Length: 20mm
Overall Length: 75mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 10x10xR2x20x75

List Price:
£44.21ex VAT £53.05 inc VAT
SKU: JER1030
Diameter: 10mm
Radius: 3mm
Shank Diameter: 10mm
Cutting Length: 20mm
Overall Length: 75mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 10x10xR3x20x75

List Price:
£44.21ex VAT £53.05 inc VAT
SKU: JER1205
Diameter: 12mm
Radius: 0.5mm
Shank Diameter: 12mm
Cutting Length: 24mm
Overall Length: 75mm
In Stock
Get it on Wed, 25th May

4 Flutes Corner Radius End Mills 12x12xR0.5x24x75

List Price:
£44.79ex VAT £53.75 inc VAT
SKU: JER1210
Diameter: 12mm
Radius: 1mm
Shank Diameter: 12mm
Cutting Length: 24mm
Overall Length: 75mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 12x12xR1x24x75

List Price:
£44.79ex VAT £53.75 inc VAT
SKU: JER1220
Diameter: 12mm
Radius: 2mm
Shank Diameter: 12mm
Cutting Length: 24mm
Overall Length: 75mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 12x12xR2x24x75

List Price:
£44.79ex VAT £53.75 inc VAT
SKU: JER1230
Diameter: 12mm
Radius: 3mm
Shank Diameter: 12mm
Cutting Length: 24mm
Overall Length: 75mm

7-10 days
subject to

availability

subject to availability

4 Flutes Corner Radius End Mills 12x12xR3x24x75

List Price:
£44.79ex VAT £53.75 inc VAT
