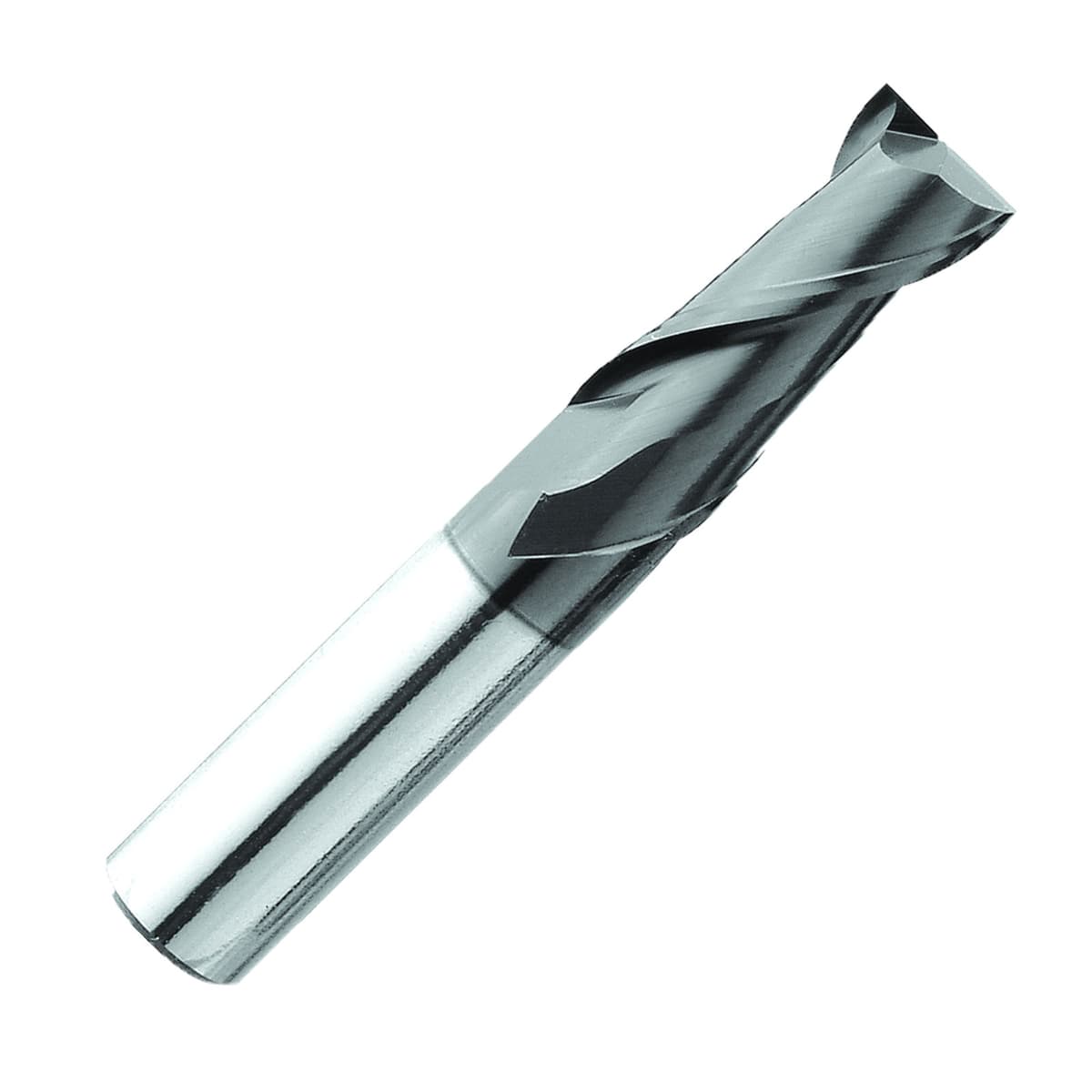

Max-Mill JE Series Coated Carbide 2 Flute Square End Mill.
Max-Mill JE Series Coated Carbide 2 Flute Square End Mill.

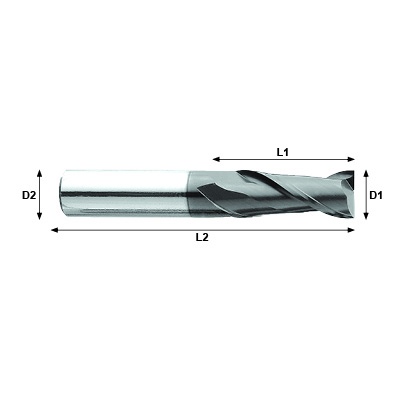

NANO-MILL Max-Mill JE Series Coated Carbide 2 Flute Square End Mill Technical Drawing.

NANO-MILL Max-Mill JE Series Coated Carbide 2 Flute Square End Mill

Series: JE**02

Max-Mill Coated Carbide 2 Flute End Mill from Nano-Mill is a general purpose cutter, ideal for cutting carbon steel, high speed steel, stainless steel, alloy, inconel and titanium. MAX-MILL cutters cut up to 55 HRC, and can be used wet or dry to increase tool life.

Nano-Mill was established in 2000 and specialise in manufacturing of high quality carbide cutting tools using the highest grades of carbide from Germany, produced by modern Swiss CNC grinding machines.

Description
D1
D2
L1
L2
Diameter
Shank Diameter
Cutting Length
Overall Length
Stock
Price
Add To Cart
SKU: JE0102
Diameter: 1mm
Shank Diameter: 4mm
Cutting Length: 3mm
Overall Length: 50mm
In Stock

2 Flutes Square End Mills 1x4x3x50

List Price: £8.28
SKU: JE0152
Diameter: 1.5mm
Shank Diameter: 4mm
Cutting Length: 4mm
Overall Length: 50mm
In Stock

2 Flutes Square End Mills 1.5x4x4x50

List Price: £8.28
SKU: JE0202
Diameter: 2mm
Shank Diameter: 4mm
Cutting Length: 6mm
Overall Length: 50mm
In Stock

2 Flutes Square End Mills 2x4x6x50

List Price: £8.28
SKU: JE0252
Diameter: 2.5mm
Shank Diameter: 4mm
Cutting Length: 7mm
Overall Length: 50mm
In Stock

2 Flutes Square End Mills 2.5x4x7x50

List Price: £8.28
SKU: JE0302
Diameter: 3mm
Shank Diameter: 4mm
Cutting Length: 8mm
Overall Length: 50mm
In Stock

2 Flutes Square End Mills 3x4x8x50

List Price: £8.28
SKU: JE0402
Diameter: 4mm
Shank Diameter: 4mm
Cutting Length: 11mm
Overall Length: 50mm
In Stock

2 Flutes Square End Mills 4x4x11x50

List Price: £8.28
SKU: JE0502
Diameter: 5mm
Shank Diameter: 6mm
Cutting Length: 13mm
Overall Length: 50mm
In Stock

2 Flutes Square End Mills 5x6x13x50

List Price: £9.55
SKU: JE0602
Diameter: 6mm
Shank Diameter: 6mm
Cutting Length: 15mm
Overall Length: 50mm
In Stock

2 Flutes Square End Mills 6x6x15x50

List Price: £9.55
SKU: JE0802
Diameter: 8mm
Shank Diameter: 8mm
Cutting Length: 20mm
Overall Length: 60mm
In Stock

2 Flutes Square End Mills 8x8x20x60

List Price: £17.18
SKU: JE1002
Diameter: 10mm
Shank Diameter: 10mm
Cutting Length: 30mm
Overall Length: 75mm
In Stock

2 Flutes Square End Mills 10x10x25x75

List Price: £24.77
SKU: JE1202
Diameter: 12mm
Shank Diameter: 12mm
Cutting Length: 30mm
Overall Length: 75mm
In Stock

2 Flutes Square End Mills 12x12x30x75

List Price: £30.06
SKU: JE1402
Diameter: 14mm
Shank Diameter: 16mm
Cutting Length: 35mm
Overall Length: 100mm
In Stock

2 Flutes Square End Mills 14x16x35x100

List Price: £66.64
SKU: JE1602
Diameter: 16mm
Shank Diameter: 16mm
Cutting Length: 40mm
Overall Length: 100mm

7-10 days
subject to

availability


subject to

availability

2 Flutes Square End Mills 16x16x40x100

List Price: £66.64
SKU: JE1802
Diameter: 18mm
Shank Diameter: 20mm
Cutting Length: 40mm
Overall Length: 100mm
In Stock

2 Flutes Square End Mills 18x20x40x100

List Price: £112.18
SKU: JE2002
Diameter: 20mm
Shank Diameter: 20mm
Cutting Length: 40mm
Overall Length: 100mm
In Stock

2 Flutes Square End Mills 20x20x40x100

List Price: £112.18
SKU: JE2502
Diameter: 25mm
Shank Diameter: 25mm
Cutting Length: 40mm
Overall Length: 100mm
In Stock

2 Flutes Square End Mills 25x25x40x100

List Price: £146.33
