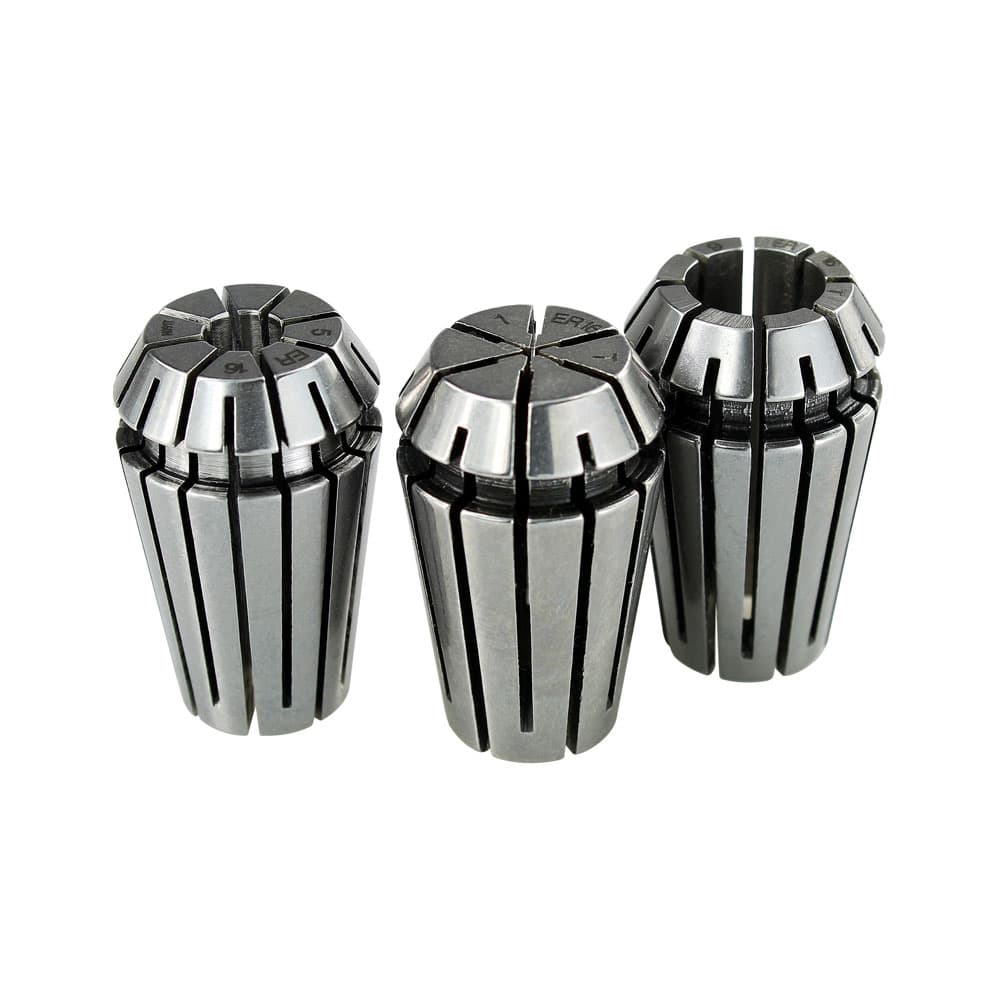

ER16 Standard Type Collets with Max 5 Micron Runout
Series: ER16-UH£11.20excl VAT£13.44 incl. VAT
ER16 standard type <5 micron runout collets, available in diameters from 1.00mm to 10.00mm. The standard type, ultra-high precision variants of ER collets - the world's most widely used clamping system, used for a wide array of ultra-high precision machining applications. The series number is the opening diameter of the tapered receptacle, in millimetres. ER collets collapse to hold parts up to 1mm smaller than the nominal collet internal size in most of the series (up to 2mm smaller in ER-50, and 0.5mm in smaller sizes) and are available in 1mm or 0.5mm steps. Thus a given collet holds any diameter ranging from its nominal size to its 1mm-smaller collapsed size, and a full set of ER collets in nominal 1mm steps fits any possible cylindrical diameter within the capacity of the series.
Features: • All collets 100% run out checked. • Hardened to prevent breakage from small shocks. • Standard type and ultra-high precision (<5 micron runout). • No deformity when clamping to the minimum diameter • Friendly to your toolholder in terms of their smooth surface free of sharp edges and their exact angle geometry to suit the chuck taper and its clamping nut.
Buy 2 Get 1 Free!
"""Standard 1.0-0.5mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 1.5-1.0mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
1-2 days
subject to
availability
subject to availabilityStandard 10.0-9.0mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 10.5-9.5mm ER16 Collet max 5 micron runout
£30.15ex VAT £36.18 inc VAT
Buy 2 Get 1 FREE
Standard 11.0-10.0mm ER16 Collet max 5 micron runout
£30.15ex VAT £36.18 inc VAT
Buy 2 Get 1 FREE
Standard 11.5-10.5mm ER16 Collet max 5 micron runout
£30.15ex VAT £36.18 inc VAT
Buy 2 Get 1 FREE
Standard 12.0-11.0mm ER16 Collet 5 Micron
£30.15ex VAT £36.18 inc VAT
Buy 2 Get 1 FREE
Standard 2.0-1.5mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
1-2 days
subject to
availability
subject to availabilityStandard 2.5-2.0mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 3.0-2.5mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
1-2 days
subject to
availability
subject to availabilityStandard 3.5-2.5mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 4.0-3.0mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 4.5-3.5mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
1-2 days
subject to
availability
subject to availabilityStandard 5.0-4.0mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 5.5-4.5mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 6.0-5.0mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
1-2 days
subject to
availability
subject to availabilityStandard 6.5-5.5mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 7.0-6.0mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
1-2 days
subject to
availability
subject to availabilityStandard 7.5-6.5mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 8.0-7.0mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
1-2 days
subject to
availability
subject to availabilityStandard 8.5-7.5mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 9.0-8.0mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
Standard 9.5-8.5mm ER16 Collet max 5 micron runout
£11.20ex VAT £13.44 inc VAT
Buy 2 Get 1 FREE
