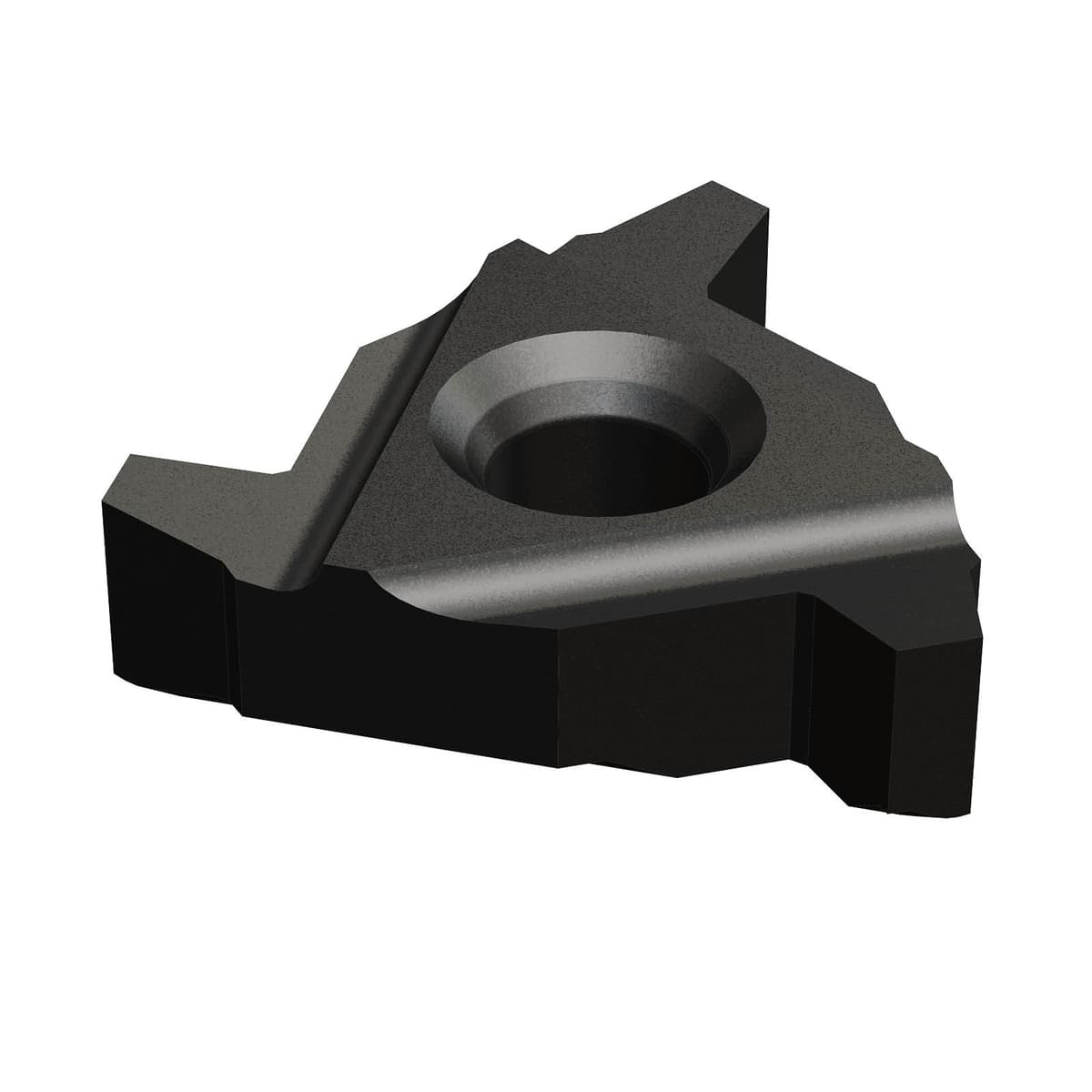

  1. ACME External Right Hand Thread Turning Insert - General Purpose Grade PTX
.
.
.

ACME External Right Hand Thread Turning Insert - General Purpose Grade PTX

Series: ER-ACME-PTX
Starting From:
£12.65excl VAT£15.18 incl. VAT
View Product Variants Table
  • ACME general purpose
  • External right hand
  • PTX grade is a general purpose grade suitable for a wide range of materials
  • ALTiN coating

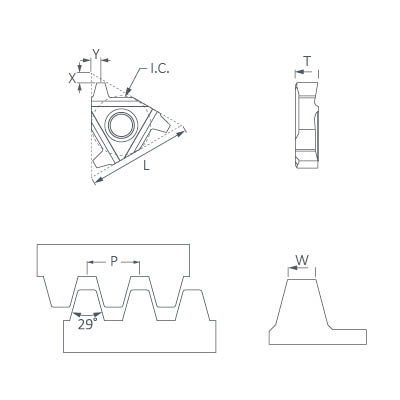

Description
Size
Threading Insert Size
TPI
No. Teeth
R Max
W
X
Y
I.C
L
T
Stock
Price
Add To Cart
SKU: 16ER16ACMEPTX
Threading Insert Size: 16
TPI: 16
No. Teeth: 1
R Max: 0.90
W: 0.523
X: 0.60
I.C: 9.525
L: 16.00
T: 3.50
In Stock
Get it on Thu, 26th May

16ER 16 ACME External Right Hand Thread Turning Insert Grade PTX - Posithread

List Price:
£15.68ex VAT £18.82 inc VAT
More Detail
SKU: 16ER14ACMEPTX
Threading Insert Size: 16
TPI: 14
No. Teeth: 1
R Max: 1.00
W: 0.607
X: 0.70
I.C: 9.525
L: 16.00
T: 3.50
In Stock
Get it on Thu, 26th May

16ER 14 ACME External Right Hand Thread Turning Insert Grade PTX - Posithread

SKU: 16ER12ACMEPTX
Threading Insert Size: 16
TPI: 12
No. Teeth: 1
R Max: 0.80
W: 0.719
X: 1.20
I.C: 9.525
L: 16.00
T: 3.50
In Stock
Get it on Thu, 26th May

16ER 12 ACME External Right Hand Thread Turning Insert Grade PTX - Posithread

List Price:
£12.65ex VAT £15.18 inc VAT
More Detail
SKU: 16ER10ACMEPTX
Threading Insert Size: 16
TPI: 10
No. Teeth: 1
R Max: 0.80
W: 0.810
X: 1.30
I.C: 9.525
L: 16.00
T: 3.50
In Stock
Get it on Thu, 26th May

16ER 10 ACME External Right Hand Thread Turning Insert Grade PTX - Posithread

SKU: 16ER8ACMEPTX
Threading Insert Size: 16
TPI: 8
No. Teeth: 1
R Max: 1.00
W: 1.045
X: 1.20
I.C: 9.525
L: 16.00
T: 3.50
In Stock
Get it on Thu, 26th May

16ER 8 ACME External Right Hand Thread Turning Insert Grade PTX - Posithread

List Price:
£16.00ex VAT £19.20 inc VAT
More Detail
SKU: 16ER6ACMEPTX
Threading Insert Size: 16
TPI: 6
No. Teeth: 1
W: 1.438
X: 1.20 X: 1.30
I.C: 9.525
L: 16.00
T: 3.50
In Stock
Get it on Thu, 26th May

16ER 6 ACME External Right Hand Thread Turning Insert Grade PTX - Posithread

List Price:
£16.00ex VAT £19.20 inc VAT
More Detail
SKU: 22ER6ACMEPTX
Threading Insert Size: 22
TPI: 6
No. Teeth: 1
R Max: 1.00
W: 1.438
X: 1.20
Y: 12.70
I.C: 4.76 I.C: 22.00
In Stock
Get it on Thu, 26th May

22ER 6 ACME External Right Hand Thread Turning Insert Grade PTX - Posithread

List Price:
£24.53ex VAT £29.44 inc VAT
More Detail
SKU: 22ER5ACMEPTX
Threading Insert Size: 22
TPI: 5
No. Teeth: 1
W: 1.752
X: 1.20 X: 1.30
Y: 12.70
I.C: 4.76 I.C: 22.00
In Stock
Get it on Thu, 26th May

22ER 5 ACME External Right Hand Thread Turning Insert Grade PTX - Posithread

List Price:
£24.53ex VAT £29.44 inc VAT
More Detail
SKU: 22ER4ACMESEPTX
Threading Insert Size: 22
TPI: 4
No. Teeth: 1
W: 2.222
X: 1.20 X: 1.20
Y: 12.70
I.C: 4.76 I.C: 22.00
In Stock
Get it on Thu, 26th May

22ER 4 ACME SE*External Right Hand Thread Turning Insert Grade PTX - Posithread

SKU: 27ER4ACMEPTX
Threading Insert Size: 27
TPI: 4
No. Teeth: 1
W: 2.222
X: 1.40 X: 2.40
I.C: 15.875
L: 27.00
T: 6.30
In Stock
Get it on Thu, 26th May

27ER 4 ACME External Right Hand Thread Turning Insert Grade PTX - Posithread

SKU: 27ER3ACMESEPTX
Threading Insert Size: 27
TPI: 3
No. Teeth: 1
W: 3.007
X: 2.60 X: 2.90
I.C: 15.875
L: 27.00
T: 6.30
In Stock
Get it on Thu, 26th May

27ER 3 ACME SE* External Right Hand Thread Turning Insert Grade PTX - Posithread
