ER25 Coolant Sealed Collets with Max 15 Micron Runout.

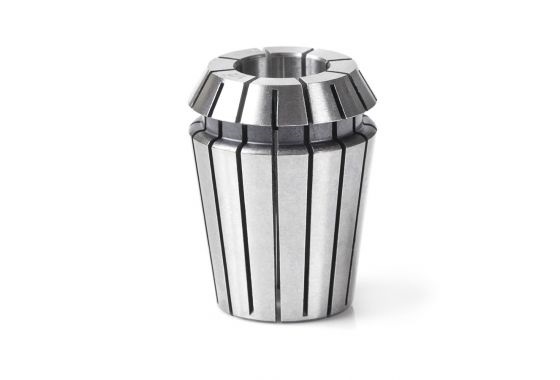

ER25 Coolant Sealed Collets with Max 15 Micron Runout

Series: C-ER25

ER25 coolant sealed <15 micron runout collets, available in diameters from 3.00mm to 16.00mm. The coolant sealed, standard accuracy variants of ER collets - the world's most widely used clamping system, used for a wide array of standard precision machining applications. The series number is the opening diameter of the tapered receptacle, in millimetres. ER collets collapse to hold parts up to 1mm smaller than the nominal collet internal size in most of the series (up to 2mm smaller in ER-50, and 0.5mm in smaller sizes) and are available in 1mm or 0.5mm steps. Thus a given collet holds any diameter ranging from its nominal size to its 1mm-smaller collapsed size, and a full set of ER collets in nominal 1mm steps fits any possible cylindrical diameter within the capacity of the series.

Features: • All collets 100% run out checked. • Hardened to prevent breakage from small shocks. • Coolant selaed and standard precision (<15 micron runout). • No deformity when clamping to the minimum diameter • Friendly to your toolholder in terms of their smooth surface free of sharp edges and their exact angle geometry to suit the chuck taper and its clamping nut.

Buy 2 Get 1 Free!

"""
View Products
Description
Stock
Price
Add To Cart
SKU: C-ER25-10.0

1-2 days
subject to

availability


subject to

availability

10.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-11.0
In Stock

11.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-12.0
In Stock

12.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-13.0

1-2 days
subject to

availability


subject to

availability

13.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-14.0

1-2 days
subject to

availability


subject to

availability

14.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-15.0

1-2 days
subject to

availability


subject to

availability

15.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-16.0
In Stock

16.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-3.0

1-2 days
subject to

availability


subject to

availability

3.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-4.0

1-2 days
subject to

availability


subject to

availability

4.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-5.0
In Stock

5.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-6.0
In Stock

6.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-7.0

1-2 days
subject to

availability


subject to

availability

7.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-8.0
In Stock

8.0mm ER25 Coolant Sealed Collet

List Price: £17.22
SKU: C-ER25-9.0

1-2 days
subject to

availability


subject to

availability

9.0mm ER25 Coolant Sealed Collet

List Price: £17.22
