Emuge Metric Coarse Spiral Flute Multi Tap GLT-1 Coated
Series: B/C550C300-M...10% DISCOUNTStarting From:
£20.80 excl. VAT
£24.96 incl. VAT
£20.80 excl. VAT
£24.96 incl. VAT
Offer Price From:
£18.72excl. VAT
£22.46incl. VAT
£18.72excl. VAT
£22.46incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table
The EMUGE Multi-tap is the original all purpose tapping solution for nearly all materials.
EMUGE's rolls royce coating type GLT1 offers significant performance increases when compared to the standard NE2/NT2 coating.
This range eliminates the need to stock different geometries for different materials, offering significant cost savings.
- GLT1 is a Multi layered coating which has a hard smooth surface
- Tremendous increase in tool life and superior swarf evacuation
- High performance tap to machine steels, stainless steel, duplex,cast iron, aluminium and non-ferrous materials
- Attractive price-performance ratio
These taps are also extremely well priced considering what they offer. It’s Also available in most of the common thread forms
max. 2.5 x d1
...read more

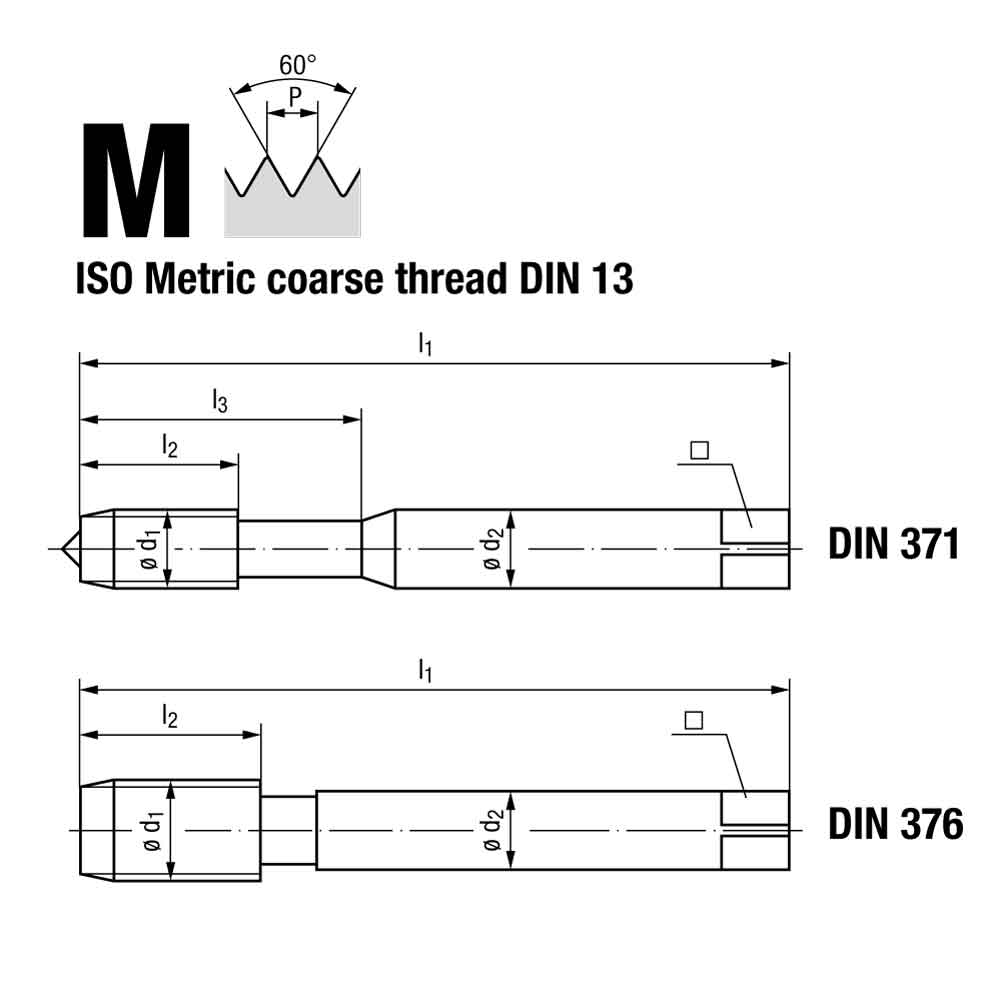

| SKU | Pitch (mm) / p | Diameter / d1 | Flute / l2 | Neck Length / l3 | Overall Length / l1 | Shank Diameter / d2 | Square Drive / Dr | Price (Ex VAT) |
|---|---|---|---|---|---|---|---|---|
| B550C300.0020 | 0.4mm | M2 | 4mm | 12mm | 45mm | 2.8mm | 2.1mm | £25.40£22.86 |
| B550C300.0025 | 0.45mm | M2.5 | 5mm | 14mm | 50mm | 2.8mm | 2.1mm | £26.10£23.49 |
| B550C300.0030 | 0.5mm | M3 | 6mm | 18mm | 56mm | 3.5mm | 2.7mm | £20.80£18.72 |
| B550C300.0040 | 0.7mm | M4 | 7mm | 21mm | 63mm | 4.5mm | 3.4mm | £22.70£20.43 |
| B550C300.0050 | 0.8mm | M5 | 8mm | 25mm | 70mm | 6mm | 4.9mm | £23.30£20.97 |
| B550C300.0060 | 1mm | M6 | 10mm | 30mm | 80mm | 6mm | 4.9mm | £31.20£28.08 |
| B550C300.0080 | 1.25mm | M8 | 14mm | 35mm | 90mm | 8mm | 6.2mm | £34.00£30.60 |
| B550C300.0100 | 1.5mm | M10 | 16mm | 39mm | 100mm | 10mm | 8mm | £43.00£38.70 |
| C550C300.0112 | 1.75mm | M12 | 18mm | 110mm | 9mm | 7mm | £48.50£43.65 | |
| C550C300.0114 | 2mm | M14 | 20mm | 110mm | 11mm | 9mm | £69.60£62.64 | |
| C550C300.0116 | 2mm | M16 | 22mm | 110mm | 12mm | 9mm | £66.60£59.94 | |
| C550C300.0118 | 2.5mm | M18 | 25mm | 125mm | 14mm | 11mm | £108.60£97.74 | |
| C550C300.0120 | 2.5mm | M20 | 25mm | 140mm | 116mm | 12mm | £119.20£107.28 | |
| C550C300.0122 | 2.5mm | M22 | 27mm | 140mm | 18mm | 14.5mm | £156.80£141.12 | |
| C550C300.0124 | 3mm | M24 | 30mm | 160mm | 18mm | 14.5mm | £133.40£120.06 |
