Emuge Metric Coarse Spiral Flute Multi Tap NE2 Coated

Name: Emuge Metric Coarse Spiral Flute Multi Tap NE2 Coated
Brand: Milo Tools
SKU: B/C5503200-M
Availability: InStock

Series: B/C5503200-M...10% DISCOUNT

Starting From:
£17.00 excl. VAT
£20.40 incl. VAT

Offer Price From:
£15.30excl. VAT
£18.36incl. VAT

Free UK delivery on orders over £25 ex VAT

View Product Variants Table

The EMUGE Multi-tap is the original all purpose tapping solution for nearly all materials.

This range eliminates the need to stock different geometries for different materials, offering significant cost savings.

NE2 is oxidised to stop cold welding
Multi purpose tap to machine steels,stainless steel,cast iron, aluminium and non-ferrous materials
Attractive price-performance ratio

These taps are also extremely well priced considering what they offer. It’s Also available in most of the common thread forms

max. 2.5 x d1

Have a query?

Speak to one of our advisers today for expert advise.

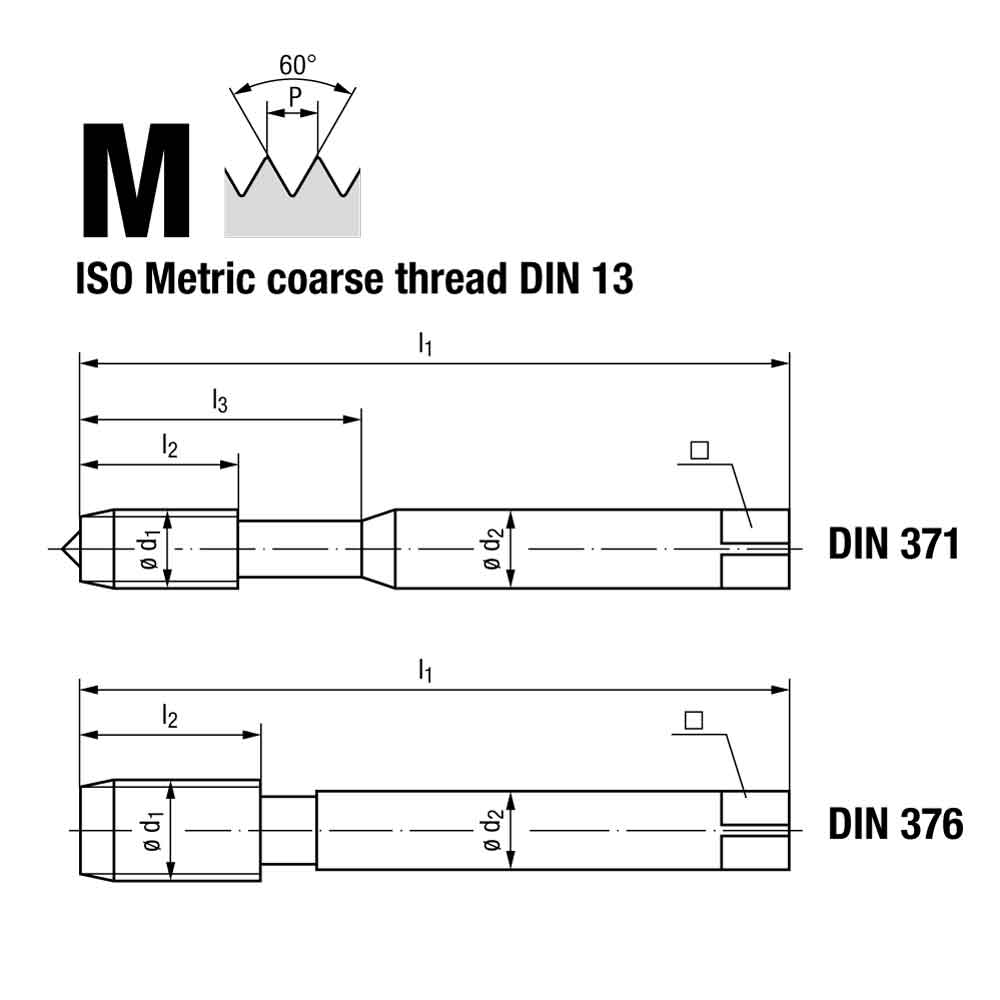

SKU	Pitch (mm) / p	Diameter / d1	Flute / l2	Neck Length / l3	Overall Length / l1	Shank Diameter / d2	Square Drive / Dr	Price (Ex VAT)
B5503200.0020	0.4mm	M2	4mm	12mm	45mm	2.8mm	2.1mm	£21.90£19.71
B5503200.0025	0.45mm	M2.5	5mm	14mm	50mm	2.8mm	2.1mm	£22.50£20.25
B5503200.0030	0.5mm	M3	6mm	18mm	56mm	3.5mm	2.7mm	£17.00£15.30
B5503200.0040	0.7mm	M4	7mm	21mm	63mm	4.5mm	3.4mm	£17.60£15.84
B5503200.0050	0.8mm	M5	8mm	25mm	70mm	6mm	4.9mm	£17.80£16.02
B5503200.0060	1mm	M6	10mm	30mm	80mm	6mm	4.9mm	£18.30£16.47
B5503200.0080	1.25mm	M8	14mm	35mm	90mm	8mm	6.2mm	£21.60£19.44
B5503200.0100	1.5mm	M10	16mm	39mm	100mm	10mm	8mm	£25.90£23.31
C5503200.0112	1.75mm	M12	18mm		110mm	9mm	7mm	£31.80£28.62
C5503200.0114	2mm	M14	20mm		110mm	11mm	9mm	£48.50£43.65
C5503200.0116	2mm	M16	22mm		110mm	12mm	9mm	£45.60£41.04
C5503200.0118	2.5mm	M18	25mm		125mm	14mm	11mm	£78.60£70.74
C5503200.0120	2.5mm	M20	25mm		140mm	116mm	12mm	£69.80£62.82
C5503200.0122	2.5mm	M22	27mm		140mm	18mm	14.5mm	£108.70£97.83
C5503200.0124	3mm	M24	30mm		160mm	18mm	14.5mm	£93.30£83.97
