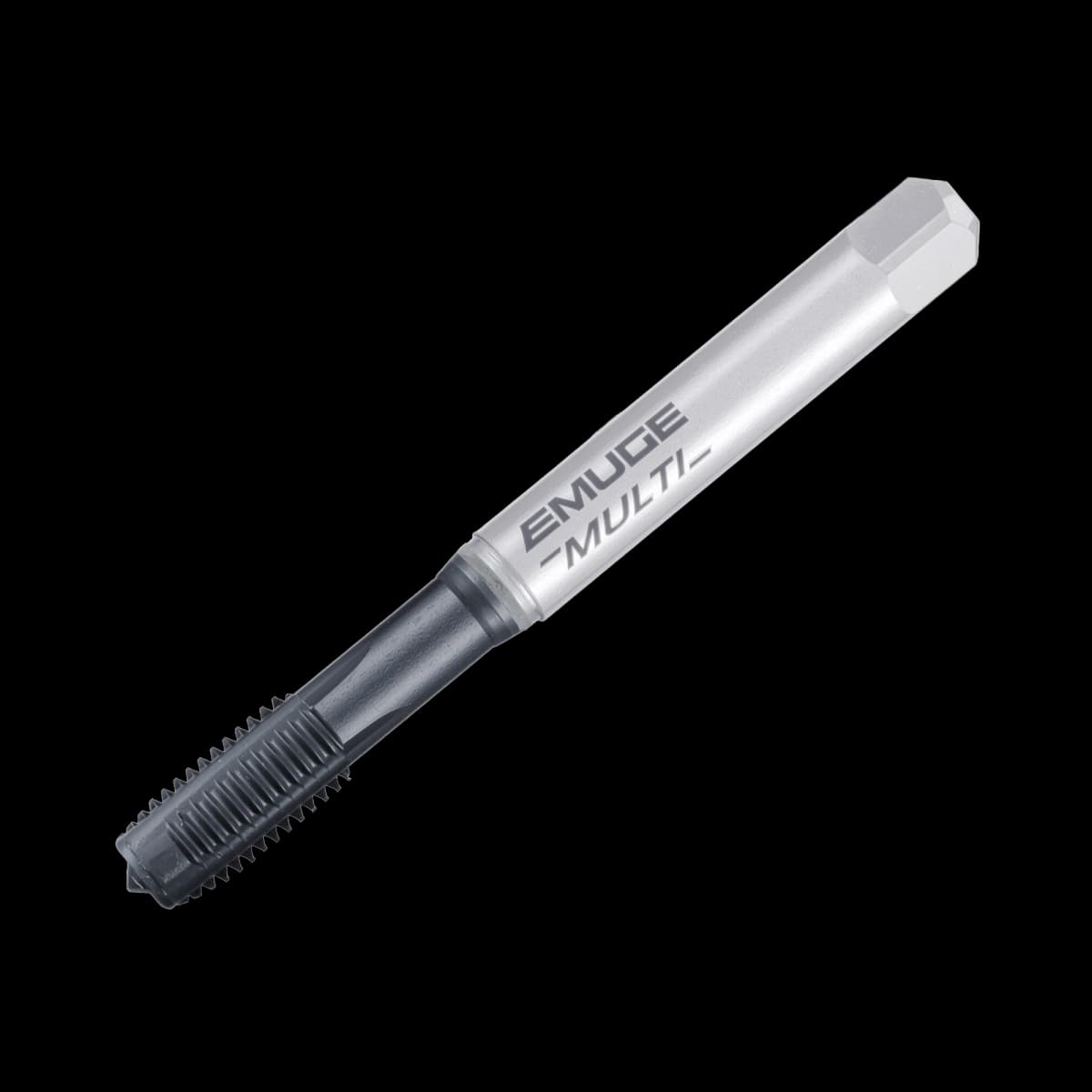

Emuge Unified Fine Thread Spiral Point Multi Tap GLT-1 Coated

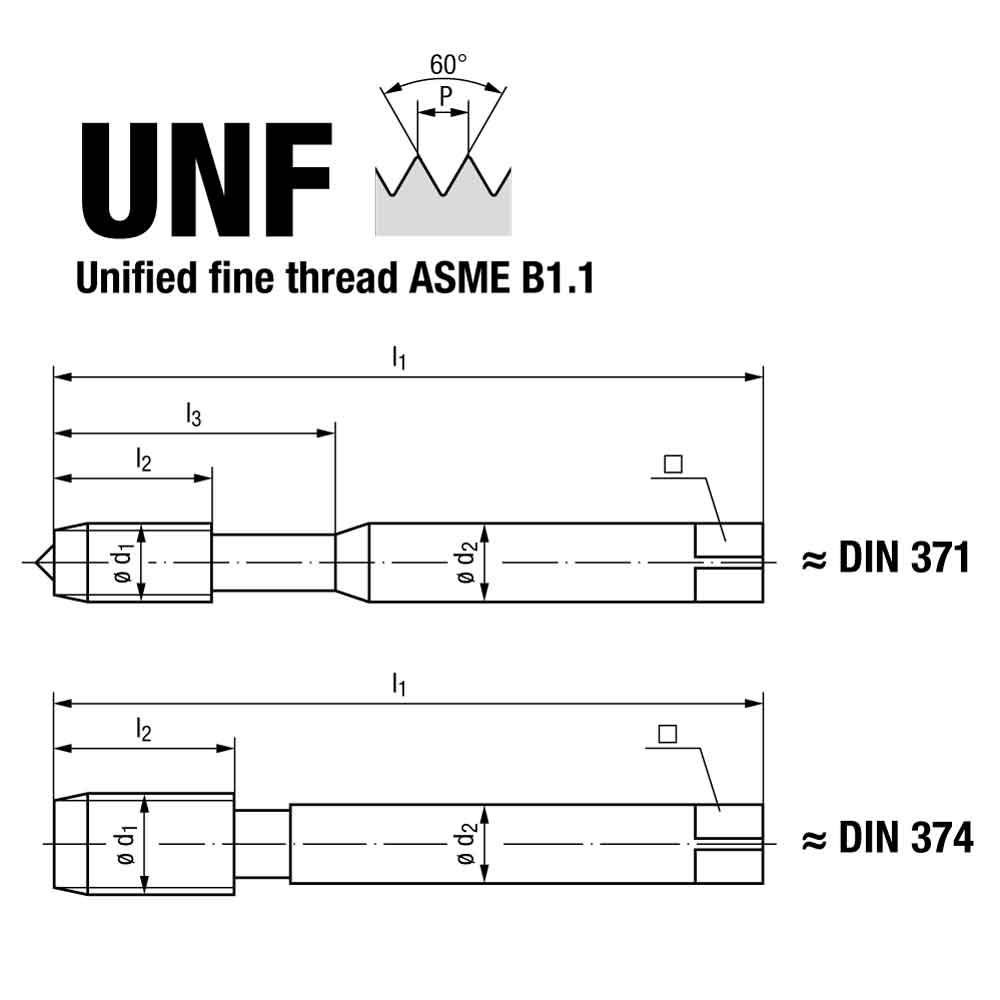

Emuge Unified Fine Thread Spiral Point Multi Tap GLT-1 Coated Technical Drawing

Emuge Unified Fine Thread Spiral Point Multi Tap GLT-1 Coated

Series: B/C520C300-UNF...10% DISCOUNT
Starting From:
£32.30 excl. VAT
£38.76 incl. VAT
Offer Price From:
£29.07excl. VAT
£34.88incl. VAT
Free UK delivery on orders over £25 ex VAT
View Product Variants Table

The EMUGE Multi-tap is the original all purpose tapping solution for nearly all materials.

EMUGE's rolls royce coating type GLT1 offers significant performance increases when compared to the standard NE2/NT2 coating.

This range eliminates the need to stock different geometries for different materials, offering significant cost savings.

  • GLT1 is a Multi layered coating which has a hard smooth surface
  • Tremendous increase in tool life and superior swarf evacuation
  • High performance tap to machine steels, stainless steel, duplex,cast iron, aluminium and non-ferrous materials
  • Attractive price-performance ratio

These taps are also extremely well priced considering what they offer. It’s Also available in most of the common thread forms

max. 3 x d1

...read more

Have a query?

Speak to one of our advisers today for expert advise.

01274 872822
sales@milotools.co.uk
SKUPitch (mm) / pDiameter / d1Flute / l2Neck Length / l3Overall Length / l1 Shank Diameter / d2Square Drive / DrPrice (Ex VAT)
B520C300.504132 TPINo. 1015mm25mm70mm6mm4.9mm
£32.30£29.07
B520C300.504328 TPI1/4"17mm30mm80mm7mm5.5mm
£42.90£38.61
B520C300.504424 TPI5/16"17mm35mm90mm8mm6.2mm
£47.00£42.30
B520C300.504524 TPI3/8"18mm35mm90mm10mm8mm
£51.80£46.62
C520C300.504620 TPI7/16"22mm100mm8mm6.2mm
£61.20£55.08
C520C300.504720 TPI1/2"22mm100mm9mm7mm
£65.10£58.59
C520C300.504818 TPI9/16"22mm100mm11mm9mm
£86.10£77.49
C520C300.504918 TPI5/8"22mm100mm12mm9mm
£95.60£86.04
C520C300.505016 TPI3/4"25mm110mm14mm11mm
£125.60£113.04
