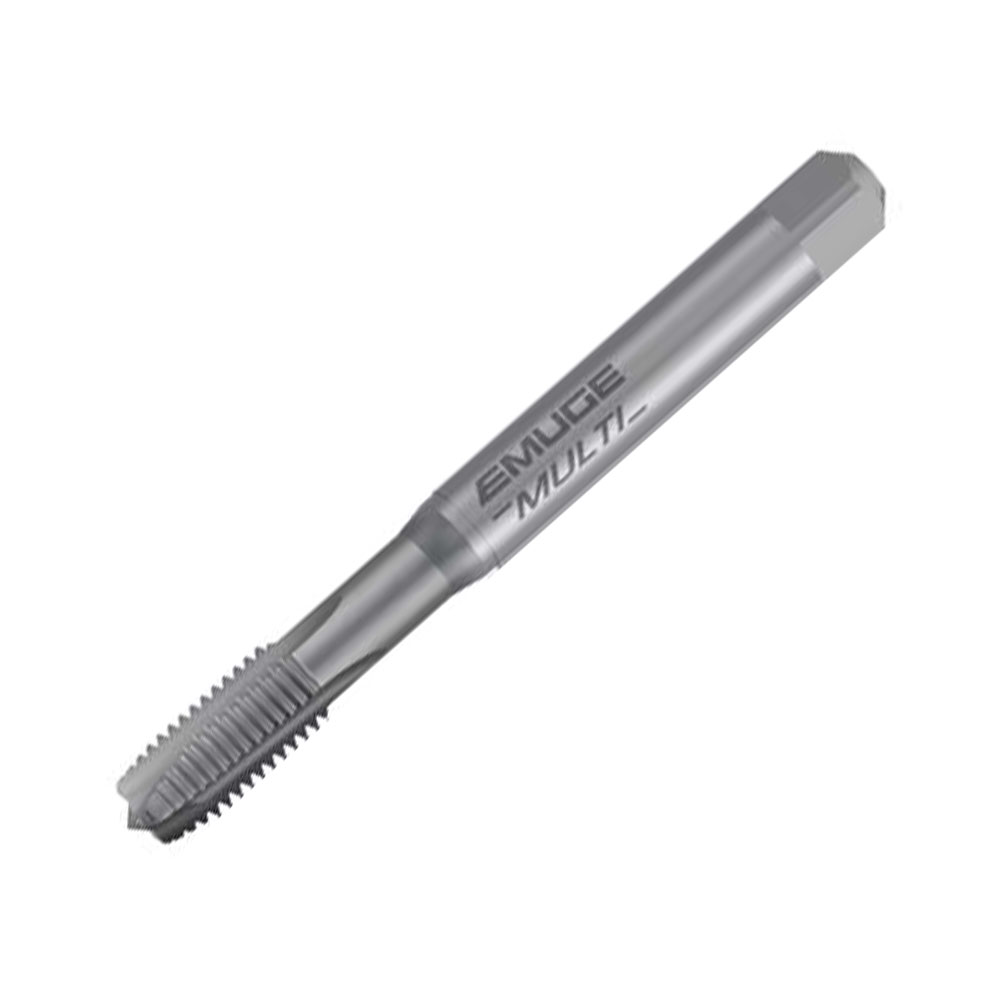

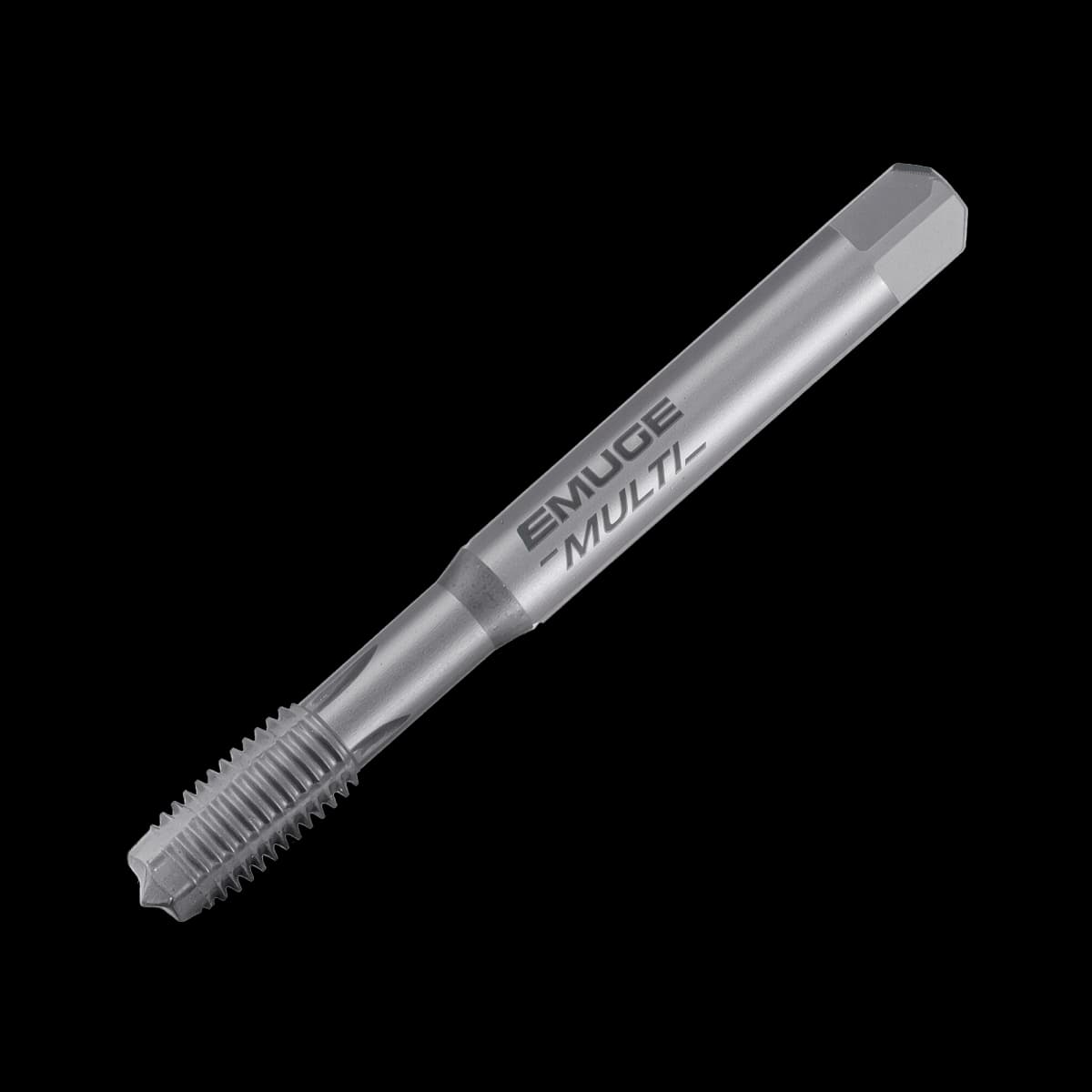

Emuge Unified Coarse Thread Spiral Point Multi Tap NT2 Coated

Name: Emuge Unified Coarse Thread Spiral Point Multi Tap NT2 Coated
Brand: Milo Tools
SKU: B/C5207300-UNC
Availability: InStock

Series: B/C5207300-UNC...10% DISCOUNT

Starting From:
£20.90 excl. VAT
£25.08 incl. VAT

Offer Price From:
£18.81excl. VAT
£22.57incl. VAT

Free UK delivery on orders over £25 ex VAT

View Product Variants Table

The EMUGE Multi-tap is the original all purpose tapping solution for nearly all materials.

This range eliminates the need to stock different geometries for different materials, offering significant cost savings.

NT2 is oxidised to stop cold welding
Multi purpose tap to machine steels,stainless steel,cast iron, aluminium and non-ferrous materials
Attractive price-performance ratio

These taps are also extremely well priced considering what they offer. It’s Also available in most of the common thread forms

max. 3 x d1

Have a query?

Speak to one of our advisers today for expert advise.

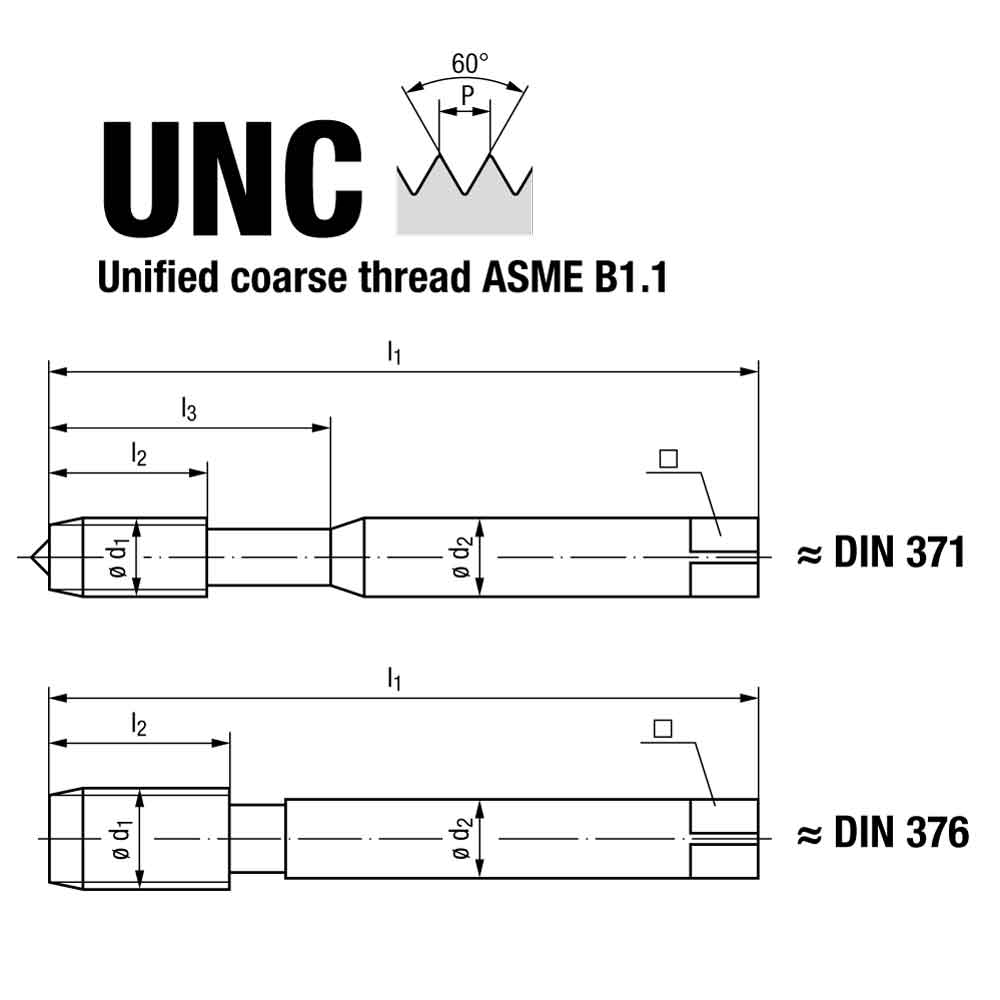

SKU	Pitch (mm) / p	Diameter / d1	Flute / l2	Neck Length / l3	Overall Length / l1	Shank Diameter / d2	Square Drive / Dr	Price (Ex VAT)
B5207300.5003	40 TPI	No. 4	11mm	18mm	56mm	3.5mm	2.7mm	£23.80£21.42
B5207300.5005	32 TPI	No. 6	12mm	20mm	56mm	4mm	3mm	£20.90£18.81
B5207300.5006	32 TPI	No. 8	13mm	21mm	63mm	4.5mm	3.4mm	£20.90£18.81
B5207300.5007	24 TPI	No. 10	15mm	25mm	63mm	6mm	4.9mm	£22.80£20.52
B5207300.5009	20 TPI	1/4"	17mm	30mm	70mm	7mm	5.5mm	£24.50£22.05
B5207300.5010	18 TPI	5/16"	20mm	35mm	80mm	8mm	6.2mm	£27.90£25.11
B5207300.5011	16 TPI	3/8"	22mm	39mm	90mm	10mm	8mm	£31.00£27.90
C5207300.5012	14 TPI	7/16"	22mm		100mm	8mm	6.2mm	£38.80£34.92
C5207300.5013	13 TPI	1/2"	25mm		100mm	9mm	7mm	£40.80£36.72
C5207300.5014	12 TPI	9/16"	26mm		110mm	11mm	9mm	£59.90£53.91
C5207300.5015	11 TPI	5/8"	27mm		110mm	12mm	9mm	£56.00£50.40
C5207300.5016	10 TPI	3/4"	30mm		125mm	14mm	11mm	£69.30£62.37
C5207300.5018	8 TPI	1"	36mm		160mm	18mm	14.5mm	£113.70£102.33
